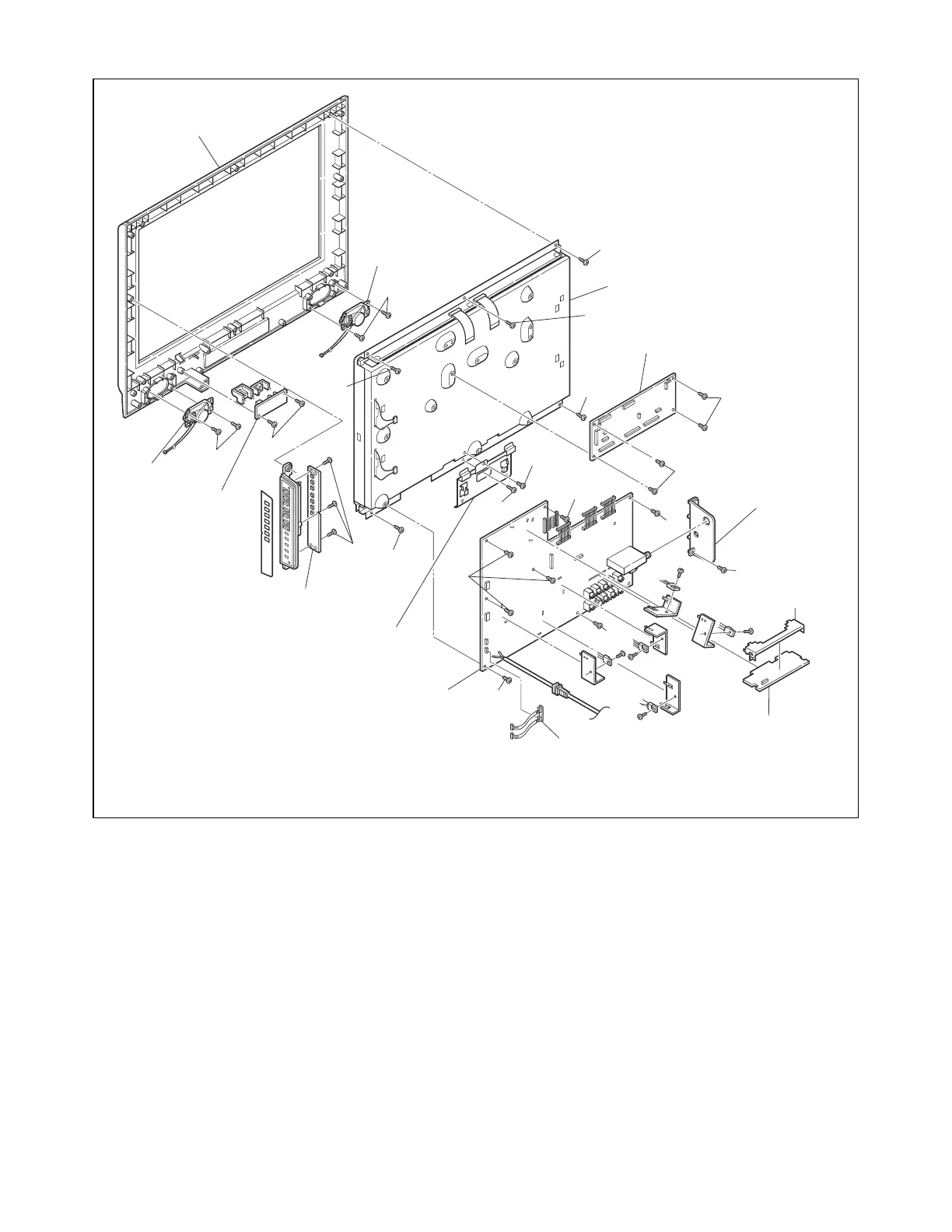

Emerson LC195EM82 - Page 15

4-3 A81N0DC
[8] Jack Holder
[6] Function CBA
[7] IR Sensor
CBA
[15] Front Cabinet
[14] Speaker
[14] Speaker
[12] Tilt Stand
Holder
(S-7)
(S-10)
[11] Main CBA
(S-8)
[10] DTV Module
CBA Unit
Module PCB
Holder
[13] LCD Module
(S-11)
(S-8)
(S-9)
(S-9)
(S-9)
(S-11)
(S-11)
(S-11)
(S-11)
(S-11)
(S-5)
(S-9)
(S-9)
[9] Digital Main CBA Unit
(S-6)
(S-12)
(S-12)
[5] Junction CBA
Fig. D2
