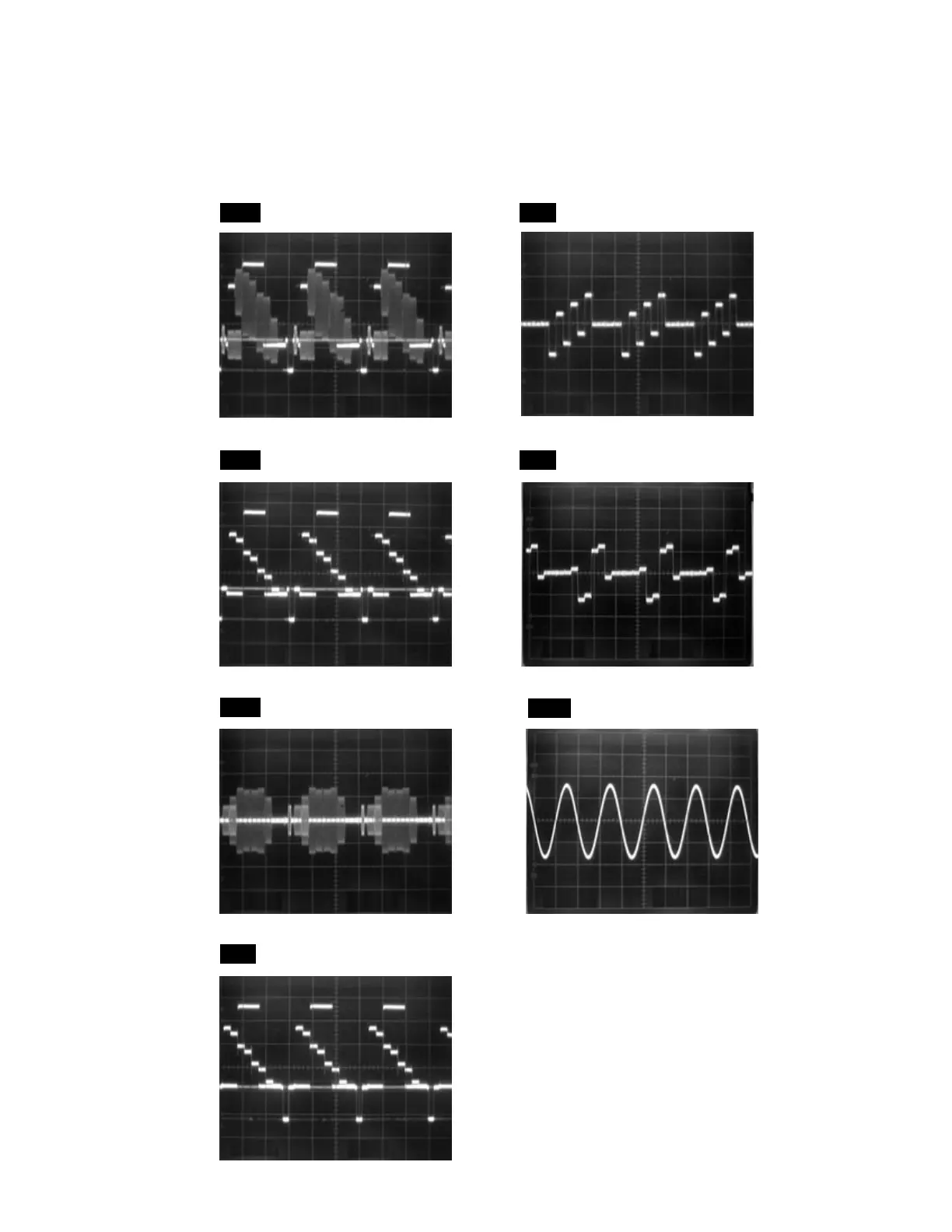

WAVEFORMS
LC6WF9-1
Input: NTSC Color Bar Signal (with 1kHz Audio Signal)
WF1 ~ WF7 = Waveforms to be observed at
Waveform check points.
(Shown in Schematic Diagram.)
CVBS 0.2V 20 µ s
WF1
Pin 6 of CN703
S-VIDEO-Y 0.2V
WF2
Pin 10 of CN703
20 µ s
S-VIDEO-C 0.2V
WF3
Pin 8 of CN703
20 µ s
AUDIO 0.1V 0.5ms
WF7
Pin 14 of IC801
COMP-Pr 0.2V 20 µ s
Pin 14 of CN703
WF6
COMP-Pb 0.2V 20 µ s
Pin 15 of CN703
WF5
COMP-Y 0.2V 20 µ s
Pin 12 of CN703
WF4
