8-7
For continued protection against risk of fire,
replace only with same type 4 A, 125V fuse.
CAUTION ! :
ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.
4A/125V
CAUTION !
Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F601) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
NOTE:
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
A81N0SCM5

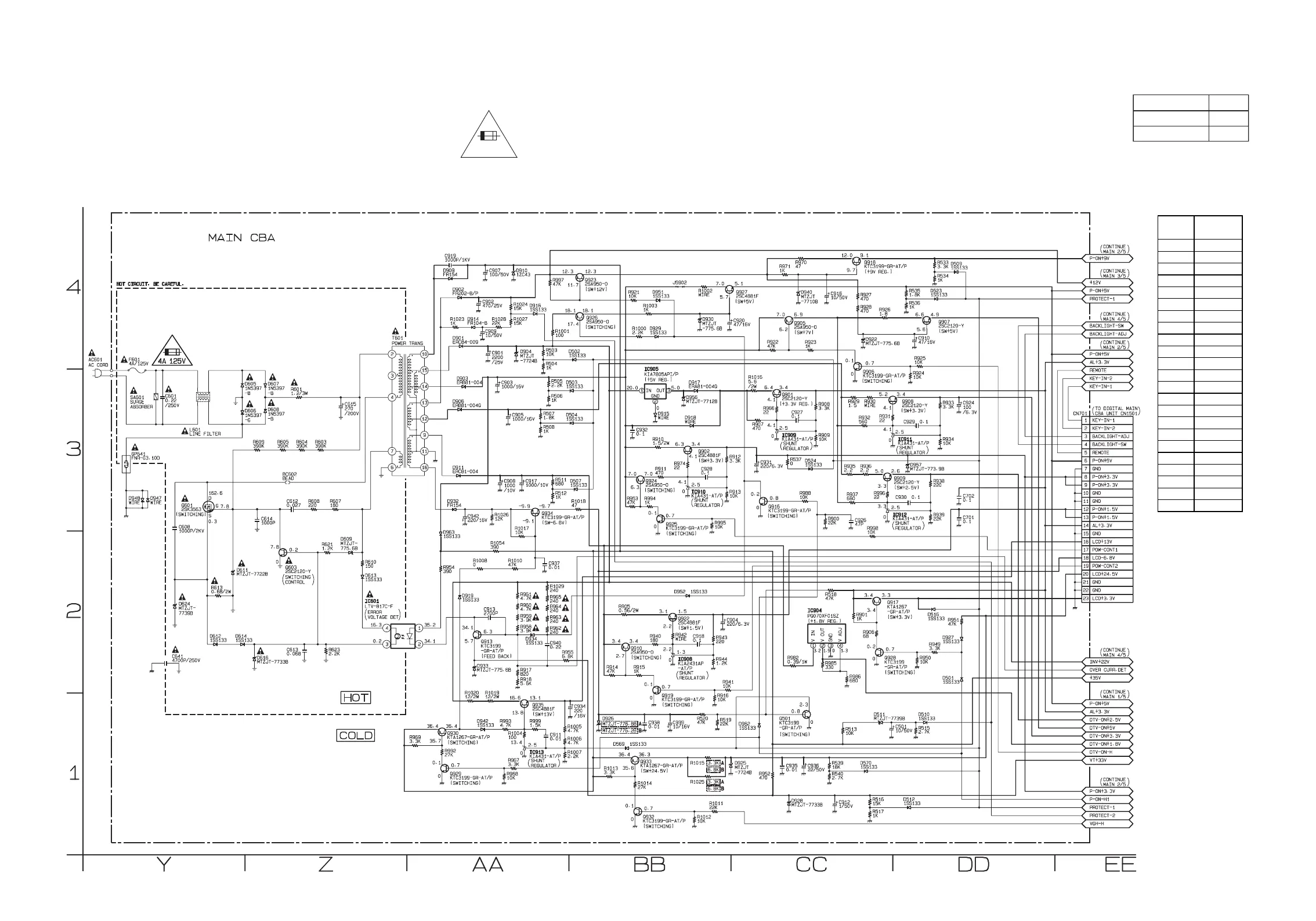

Main 5/5 Schematic Diagram
Comparison Chart of
Models and Marks
Model Mark
LC195EM82
LC195EM87
A
B
CN701
13.4
23.4
30.4
43.3
52.1
65.1
70
83.4
93.4
10 0
11 0
12 1.5
13 1.5
14 3.4
15 0
16 13.1
17 3.3
18 -7.0
19 3.3
20 24.4
21 0
22 0
23 3.3
To Next Page
