8-14
A81N0SCDM3

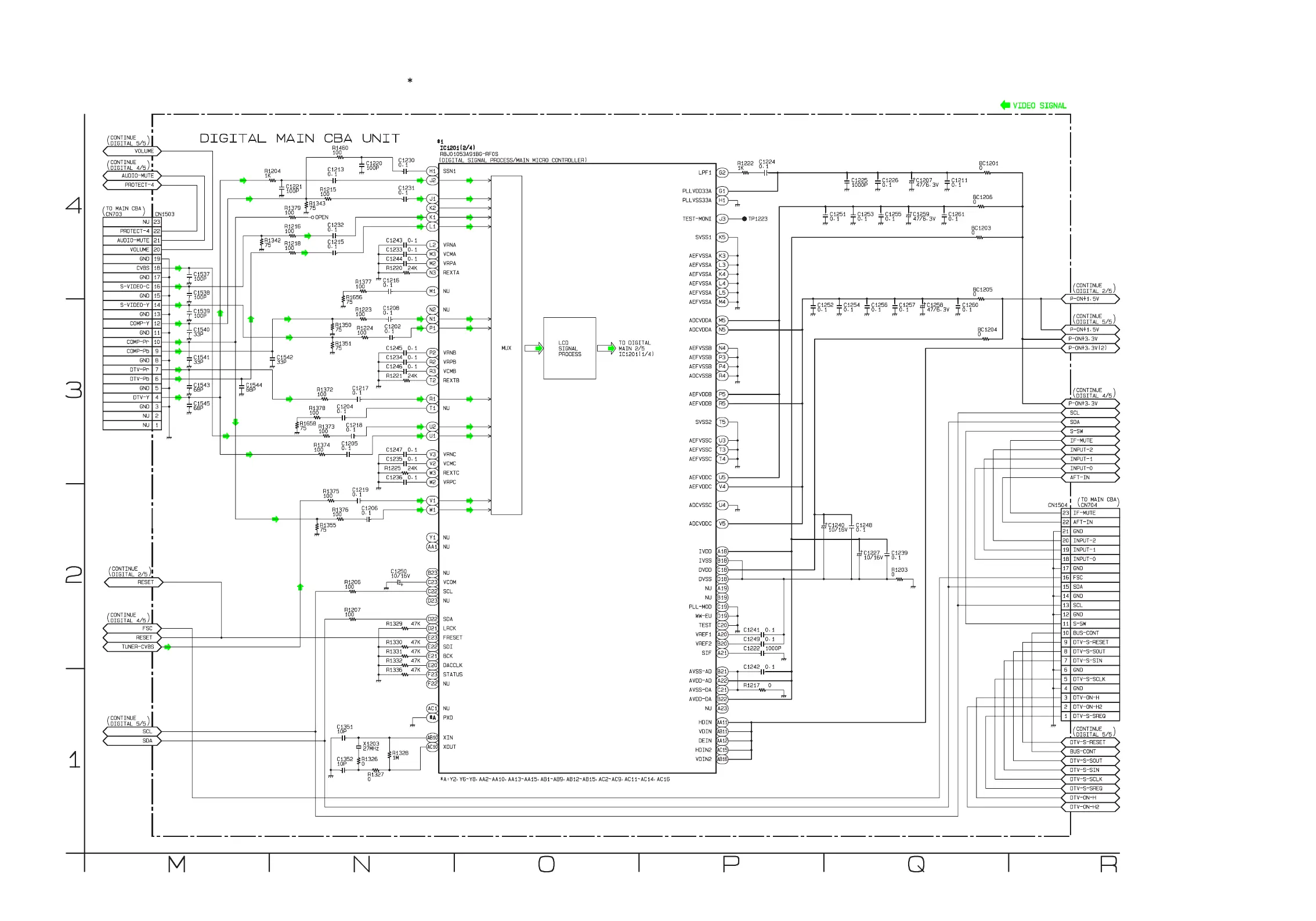

Digital Main 3/5 Schematic Diagram
The order of pins shown in this diagram is different from that of actual IC1201.
IC1201 is divided into four and shown as IC1201 (1/4) ~ IC1201 (4/4) in this Digital Main Schematic Diagram Section.
