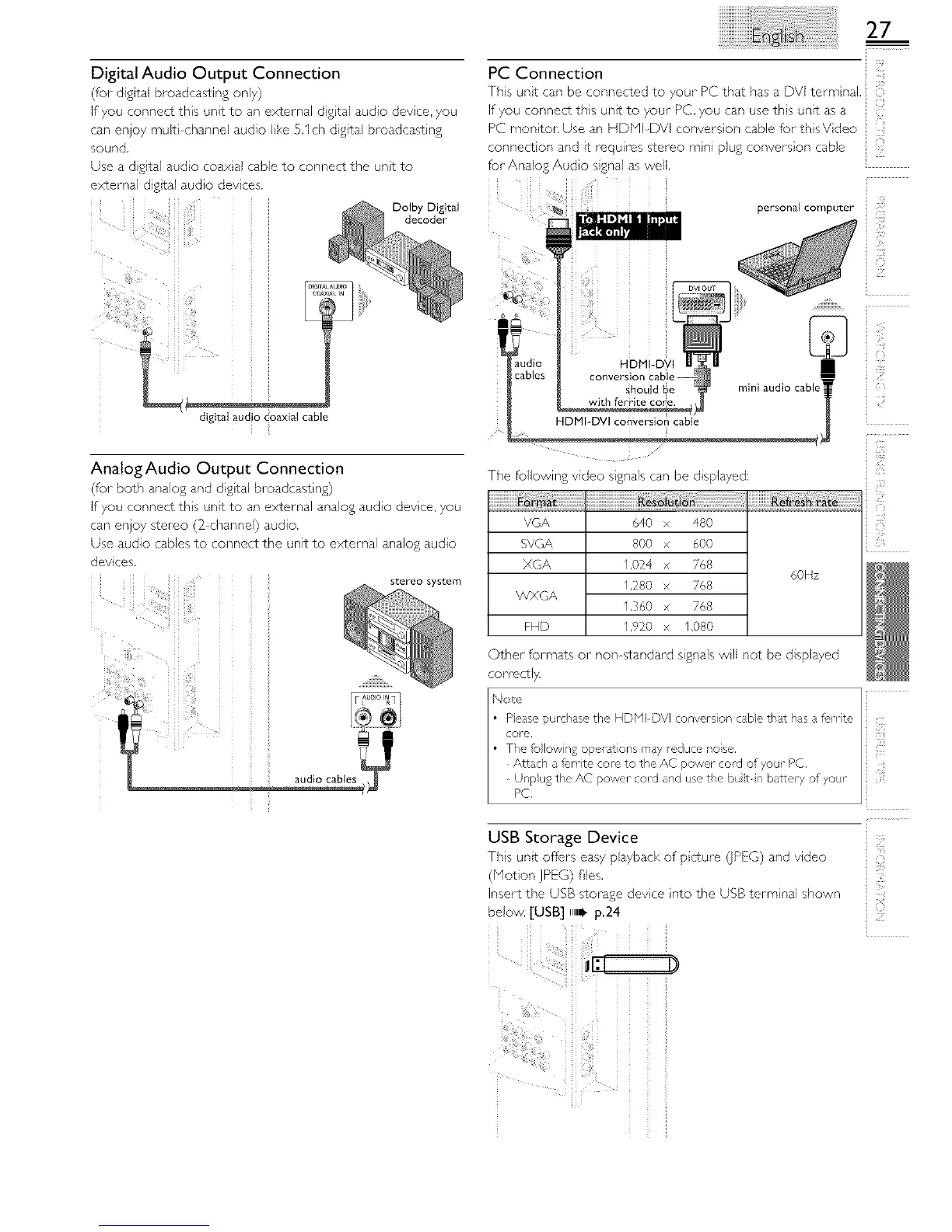

Digital Audio Output Connection
(for digital broadcasting only)
If you connect ths unit to an external digital audio dev ce, you
can enjoy mult channel audio Ike 5.1ch digtal broadcast ng
sound.
Use a d gital audo coax al cable to connect the unt to
external digital audio devices.
Dolby Digital
decoder
ii
PC Connection
[hs unt can be connected to your PC that has a DVItermnal.
If you connect this unit to your PC, you can use ths unit as a
PC montor: Use an HDNI DVI conversion cable for th sVdeo
connection and it requ res stereo toni plug conversion cable
for Analog Audio signal as well.
; ___ persona] computer
digital audio (oaxial cable
AnalogAudio Output Connection
(for both analog and digital broadcasting)
If/ou connect ths unit to an external analog audio dev ce. you
can enjoy stereo (2 channel) audio.
Use audio cables to connect the unit to external analog audio
dev ces.
ii ili i
stereo system
il il
audio cabl
The following video s gnals can be displayed:
VGA
SVGA
XGA
WXGA
640 x
800 x
1.024 x
1.280 x
1.360 x
FHD 1.920 x
480
6O0
768
768
768
1.080
60Hz
Other formats or nonstandard s gnals will not be displayed
correctly.
• Pease purc/,ase the HDPII DVI conversion cabe that has a f_wte
Attach a f_,rrite core to the AC power cord of your PC,
Unpu£ the AC power cord and use the but-n battery of your
PC,
USB Storage Device
Ths unt offers easy playback of p cture (}PEG) and video
(Notion jPEG) files.
Insert the USB storage devce nto the USB term hal shown
below. [USB] n,_ p.24
3}111
' i!i_ii!i
1211
