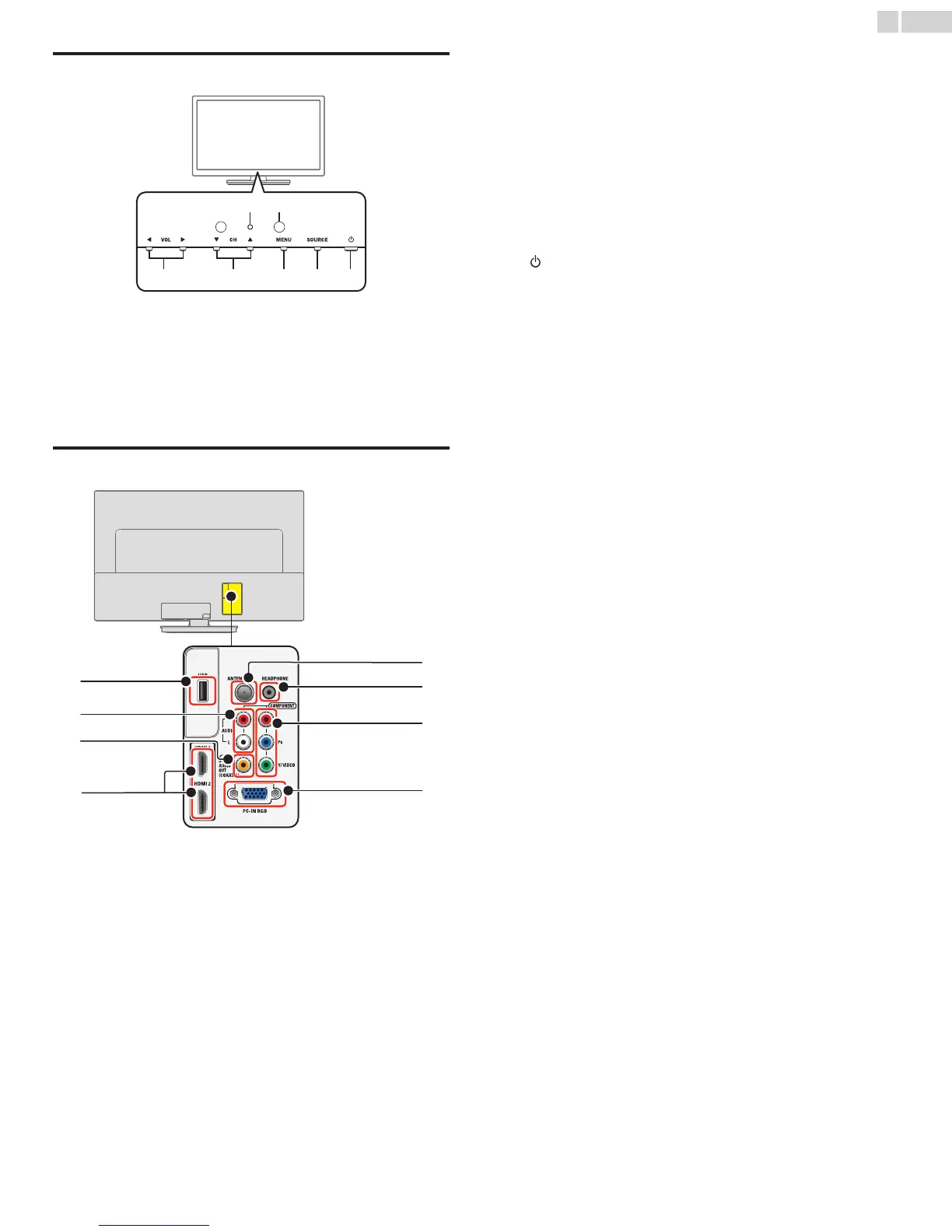

Control panel
a VOL ɿ/ɽ
Adjusts the Volume.
VOL ɿ : Volume Down
VOL ɽ : Volume Up
In the Menu screen, moves the Cursor Left (ɿ) / Right (ɽ).
b CH ɼ/ɾ
Selects a Channel. In the Menu screen,
moves the Cursor Up (ɼ) /Down (ɾ).
c MENU
Opens the Main On-screen Menu.
d SOURCE
Selects Connected devices.
e (POWER)
Turns the TV On and Off.
f Remote Control Sensor
Receives IR signal from Remote control.
g Power On / Standby Indicator
(On : no light, Standby : red)
Te r m i n a l s
h USB Terminal
Data Input from USB Memory Stick only.
Do not connect any device to this terminal such as; Digital Camera,
Keyboard, Mouse, etc.
i Analog Audio (L/R) Input jacks
Connect Analog Audio signals from;
– DVI-HDMI / Analog Audio (L/R) jacks signal
– Component Video / Analog Audio (L/R) jacks signal
– Composite Video / Analog Audio (L/R) jacks signal
– PC Connection / Analog Audio (L/R) jacks signal with Stereo mini
3.5mm plug Audio cable on PC
j Digital Audio Output jack
Digital Audio (S/PDIF) Output to Home Theaters and other Digital
Audio systems.
k HDMI Input jack(s)
Digital Audio and Video Input from High Definition Digital devices
such as DVD / Blu-ray disc players, Cable / Satellite Set-top boxes
and PC’s.
l 75 ohm Cable / Antenna connection
Signal Input from an Antenna or Cable / Satellite Set-top boxes.
m Headphone Audio Output jack
Headphone 3.5mm Stereo jack for personal listening.
n Component (Y/Pb/Pr) / Composite Video (VIDEO) Input jacks
for VIDEO
Composite Video Input (VIDEO) jack is a shared jack with
Component Video Input (Y) jack.
o PC Input jack
VGA cable connection for PC.
edcba
fg
m
n
o
l
h
j
i
k
