Emerson LF320EM4 A User Manual

12
English

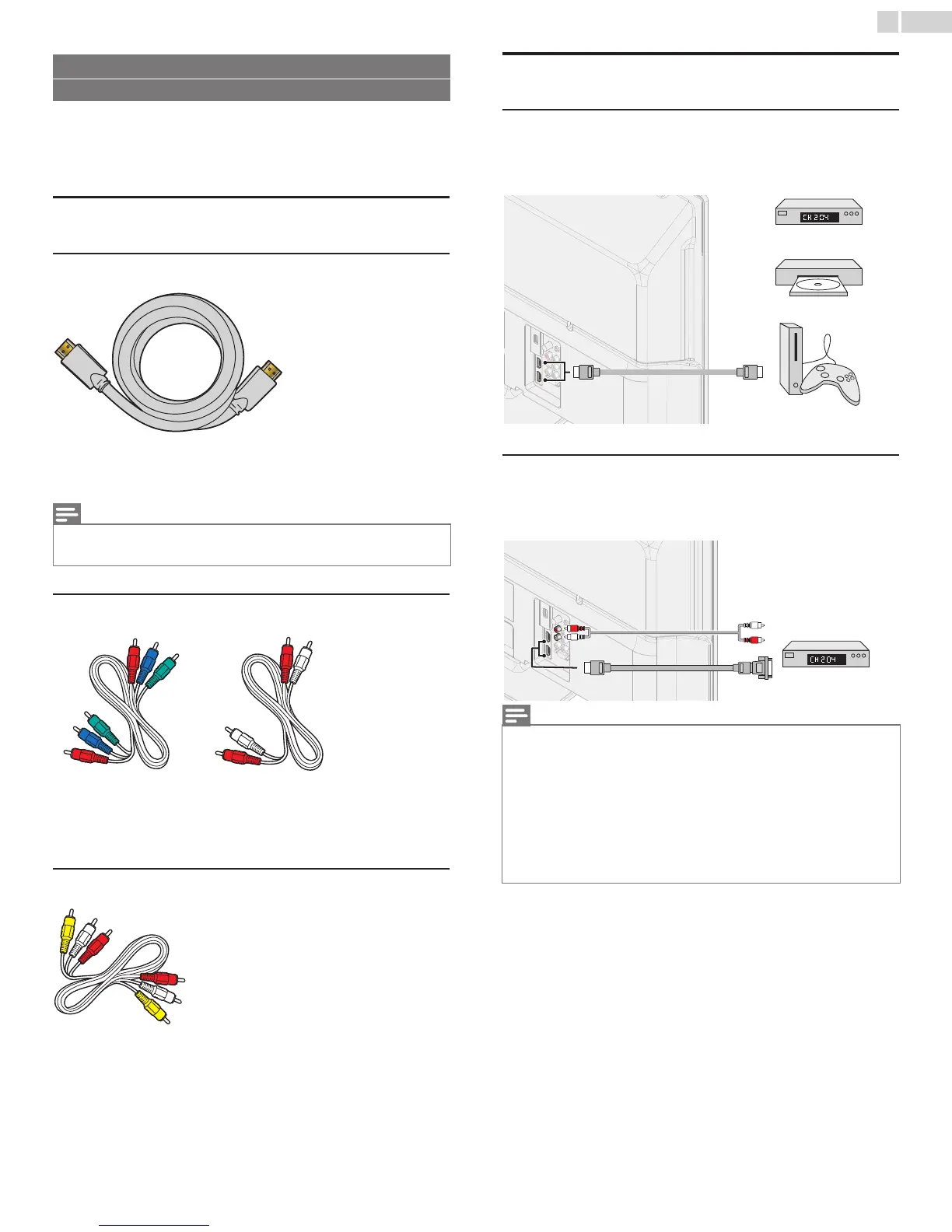

Before you connect the AC Power cord:
Be sure other devices are connected properly before plugging in the AC
power cord.
Selecting your connection quality
HDMI - Highest quality
Supports high-definition Digital signals and gives highest picture and
sound quality. Video and Audio signals are combined in one cable.
You must use HDMI for full high-definition video and to enable fun-Link
(HDMI CEC).
Component (Y Pb Pr) - High quality
Supports high-definition Analog signals but gives lower picture quality
than HDMI. Component (Y/Pb/Pr) Video cables combine red / green /
blue video cables with red / white audio (L/R) cables. Match the cable
colors when you connect to the TV.
Composite - Basic quality
For analog connections. Composite Video / Audio Analog cable usually
combine a yellow video cable with red / white audio (L/R) cables. With
this unit, yellow cable must be connected to Y (green) jack of
Component Video Input jacks.
Connecting your devices
HDMI Digital connection
HDMI connection offers the highest picture quality.
HDMI (High-Definition Multimedia Interface) transports high definition
Digital Video and multi-channel Digital Audio through a single cable.
DVI-HDMI connection
This unit can be connected to your device that has a DVI terminal.
Use a DVI-HDMI conversion cable for this connection and it requires
Audio Cable for Analog Audio signal as well.
No supplied cables are used with these connections:
• Please purchase the necessary cables at your local store.
Note(s)
• Emerson HDMI supports HDCP (High-bandwidth Digital Contents Protection).
HDCP is a form of Digital Rights Management that protects high definition content in
Blu-ray discs or DVDs.
Note(s)
• Use an HDMI cable with the HDMI logo (a certified HDMI cable). High Speed HDMI
cable is recommended for the better compatibility.
For HDMI connection
• The unit accepts 480i / 480p / 720p / 1080i, 1080p 24/30/60Hz of Video signals,
32kHz / 44.1kHz and 48kHz of Audio signals.
• This unit accepts 5.1 channel Audio signal (Dolby Digital) and 2 channel Audio signal
(LPCM).
• This unit accepts only signals in compliance with EIA861.
For DVI-HDMI connection
• The unit accepts 480i, 480p, 720p, 1080i and 1080p Video signals.
• DVI-HDMI connection requires separate audio connections as well and the Audio
signals are output as Analog (L/R) Audio.
• DVI does not display 480i image which is not in compliance with EIA/CEA-861/861B.
IN
IN OUT
Set-top Box
or
Blu-ray disc player
or
HD game console
HDMI cable
IN
IN
OUT
OUT
OUT
IN
IN
IN
OUT
DVI-HDMI conversion
cable
Audio (L/R) cables
Cable Receiver or
Satellite box with the
DVI Output jack
Continued on next page.

Emerson LF320EM4 A Specifications

General

Brand	Emerson
Model	LF320EM4 A
Category	TV
Language	English
