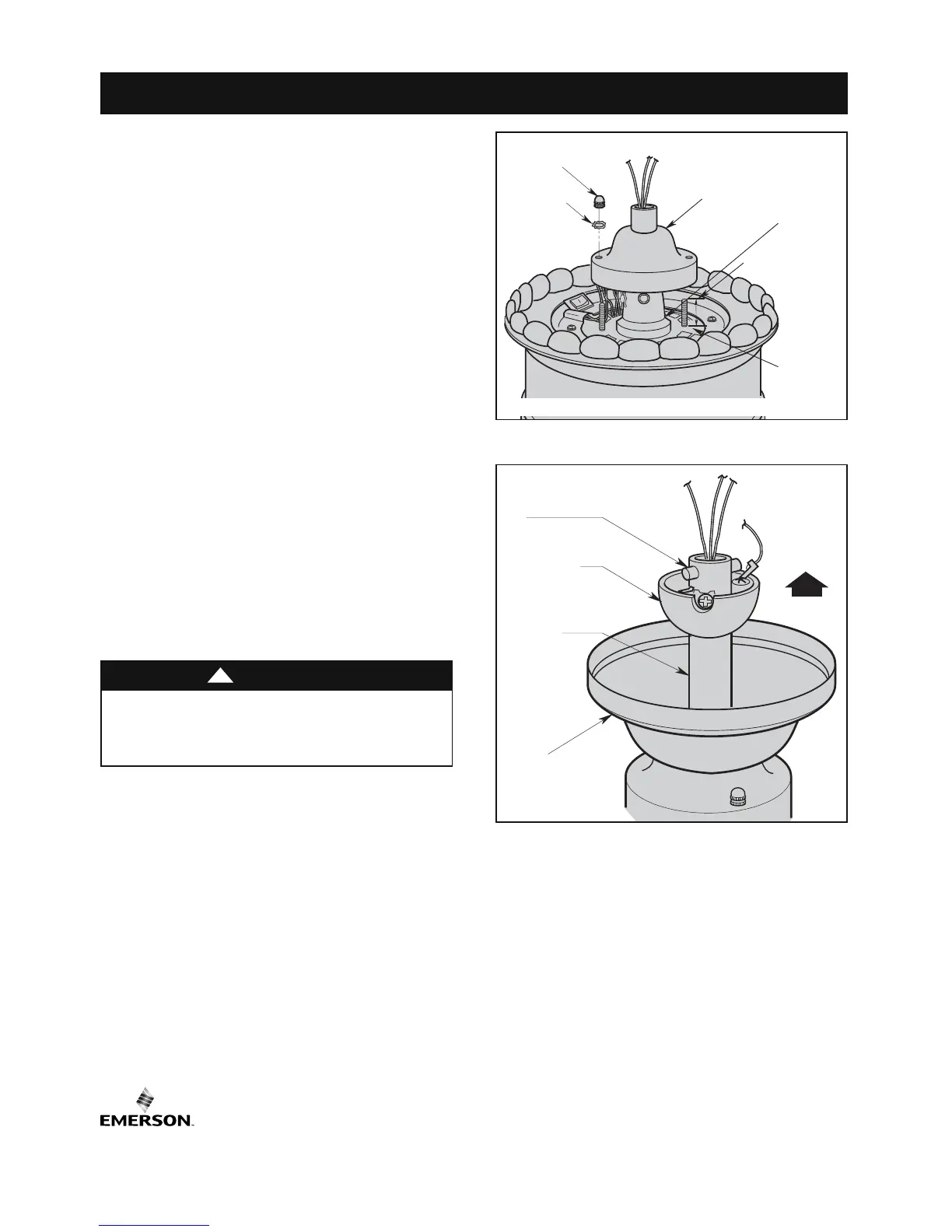

6.Screw two 1” threaded studs (supplied) into the motor
(Figure 4). Leave approximately 7/8” of the stud
extending above motor. Slide the motor cover over
the downrod and rotate the cover until the threaded
studs protrude; install two lockwashers and knurled
knobs (supplied) to secure the cover.
NOTE: Make sure the connected red leads, the
connected brown leads, and the white lead are
completely inside the motor cover and not pinched
between the motor cover and the motor.
7.Position the ceiling cover over the downrod. Be sure
the cover is oriented correctly, with the large
opening at the top (Figure 5).
8.Reinstall the hanger ball on the downrod (Figure 5)
as follows. Route the motor leads through the hanger
ball and slide the hanger ball over the downrod.
Install the pin through the holes at the top of the
downrod and slide the hanger ball up the downrod,
aligning the ball so the pin is captured in the groove
in the top of the hanger ball. Pull the hanger ball up
tight against the pin and securely tighten the setscrew
in the hanger ball. A loose setscrew could create fan
wobble.
9. The fan comes with blue, black and white leads that
are 80” long. Before installing fan, measure up
approximately 6 to 9-inches above the ball/
downrod assembly. Cut off excess leads and strip
back insulation 1/2-inch from end of leads.
Figure 5
6
U.L. Model No.: CF2000
Please call Emerson technical support at
1-800-654-3545 if you have any questions
about installation and operation of this ceiling fan.
Ceiling Fan Assembly (continued)
It is critical that the pin in the hanger ball is properly
installed and the setscrew securely tightened. Failure
to verify that the pin and setscrew are
properly installed could result in the fan falling.
WARNING
!
