Emerson MIDWAY ECO LED User Manual

10
ETL Model No.: CF955L
3. Ceiling Fan Assembly (Continued)
LOWER
HOUSING
LED LIGHT
FIXTURE
LED LIGHT FIXTURE
BLACK WIRE
LED LIGHT FIXTURE
WHITE WIRE
MOTOR ASSEMBLY
BLUE WIRE
MOTOR ASSEMBLY
WHITE WIRE

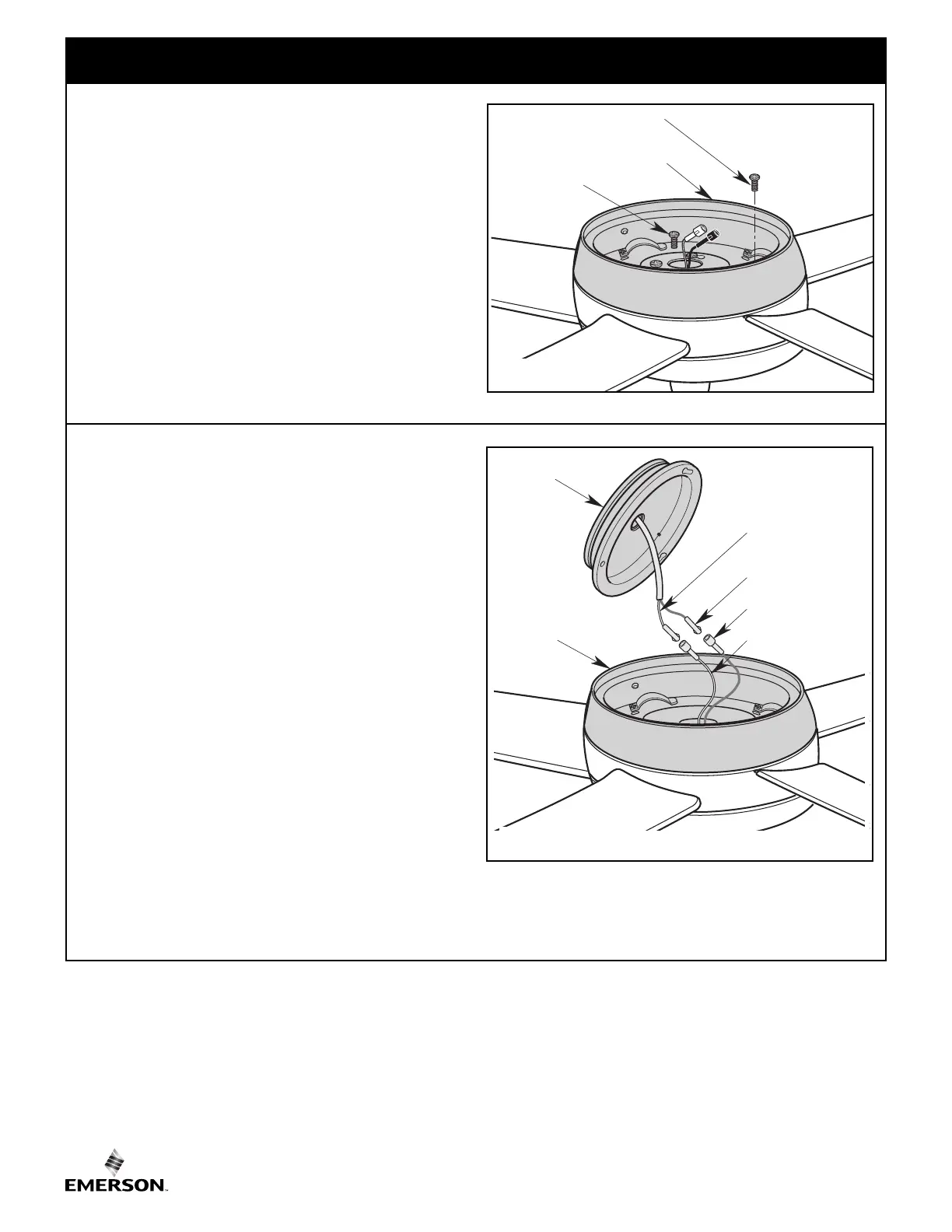

Figure 15
3.15
Securely connect the LED light fixture white wire terminal
to the motor assembly white wire terminal (Figure 15).
Securely connect the LED light fixture black wire terminal
to the motor assembly blue wire terminal (Figure 15).
Tuck wires into the LED light fixture assembly and position
on the lower housing assembly.
NOTE: Make sure wires and terminals are positioned
under the LED light fixture assembly and not pinched
between LED light fixture assembly and lower
housing.
LOWER HOUSING
REMOVE ONE #8-32 x .375"
PAN HEAD SCREW
LOOSEN TWO
#8-32 x .375"
PAN HEAD
SCREWS
Figure 14
3.14
Remove and retain one of the three #8-32 x .375” pan
head screws in the lower housing and loosen the
r
emaining two #8-32 x .375” pan head screws (Figure 14).
