1. Unpacking Instructions
This product is designed to use only those parts supplied
with this product and/or any accessories designated
specifically for use with this product by Emerson Electric
Co. Substitution of parts or accessories not designated
for use with this product by Emerson Electric Co. could
result in personal injury or property damage.
WARNING
!
Do not install or use fan if any part is damaged or
missing. Call Toll-Free:
1-800-654-3545
WARNING
!
3
emersonfans.com
Please contact 1-800-654-3545 for further assistance
ETL Model No.: CF955L
1.1
Check to see that you have received the following parts:
NOTE: If you are uncertain of part description, refer to
exploded view illustration.
NOTE: The loose parts are individually packaged for ease
of installation. Place the parts from the loose parts bags
in a small container to keep them from being lost. If any
parts are missing, contact your local retailer or catalog
outlet for replacement before proceeding.
1.2
Remove the fan assembly from the protective
plastic bag. Remove and discard the cardboard shipping
retainers.
Place the fan assembly into the upper foam pad with the
top of the motor facing up.
The upper foam pad serves as a holder for the fan during
the first stages of assembly.

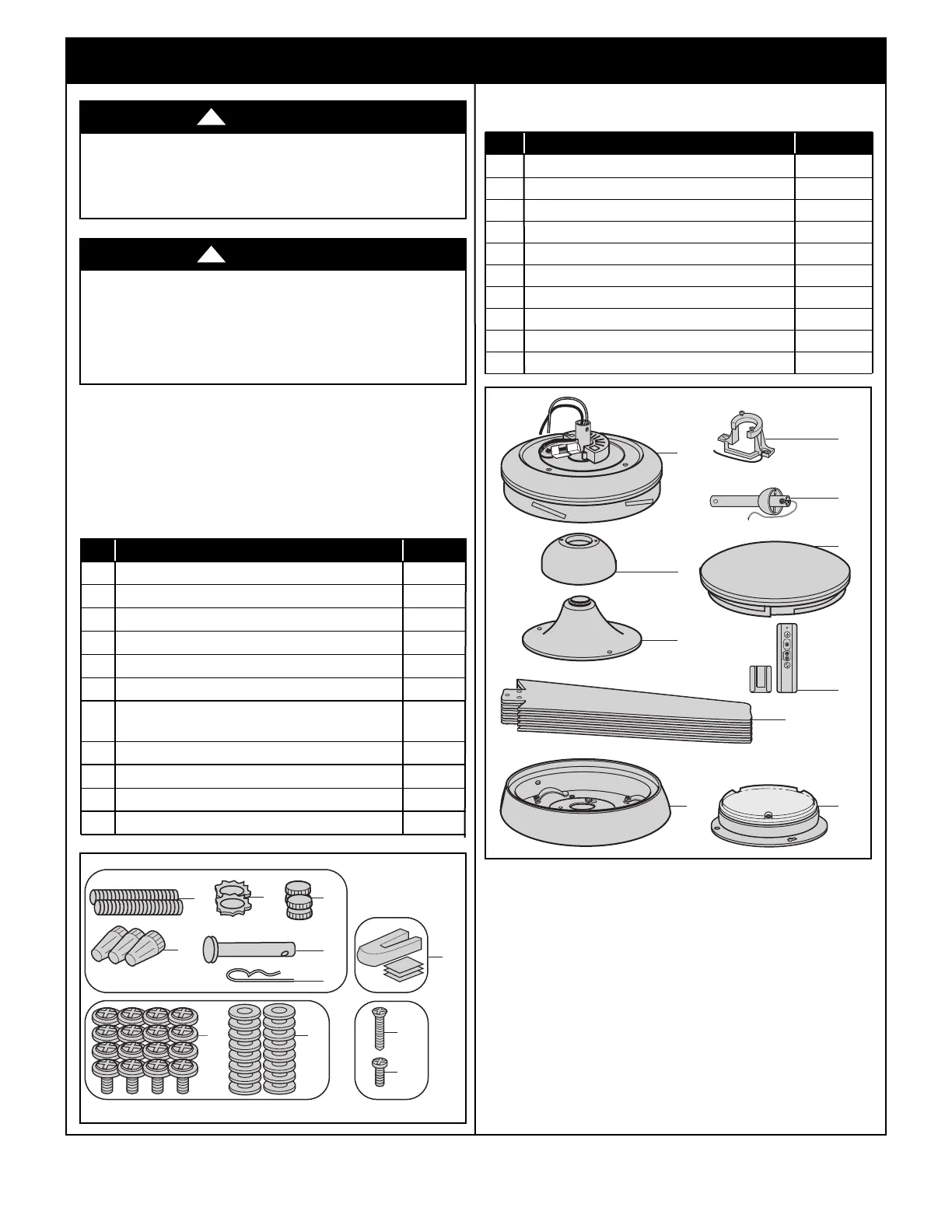

PACKAGE CONTENTS
Part Description Quantity
A Fan Motor Assembly 1
B Ceiling Cover 1
C Motor Coupler Cover 1
D Fan Blades 5
E Hanger Bracket 1
F Hanger Ball/Downrod Assembly 1
G Lower Housing 1
H Glass Globe 1
I Fan/Light Remote Control (transmitter) 1
J Light Fixture Assembly - LED 1
HARDWARE CONTENTS
Part Description Qty.
1 Threaded Studs, #8-32 x 1-1/4” 2
2 Lockwashers, External Tooth #8 2
3 Knurled Knobs, #8-32 2
4 Wire Connectors 3
5 Clevis Pin 1
6 Hairpin Clip 1
7 #10-24 x 1/2” Slotted Phillips Washer Head
Blade Screws 16
8 #10 Fiber Washers 16
9 #8-32 x .375” Pan Head Screw (spare) 1
10 #8-32 x .75” Flat Head Screw (spare) 1
11 Blade Balance Kit 1
