6

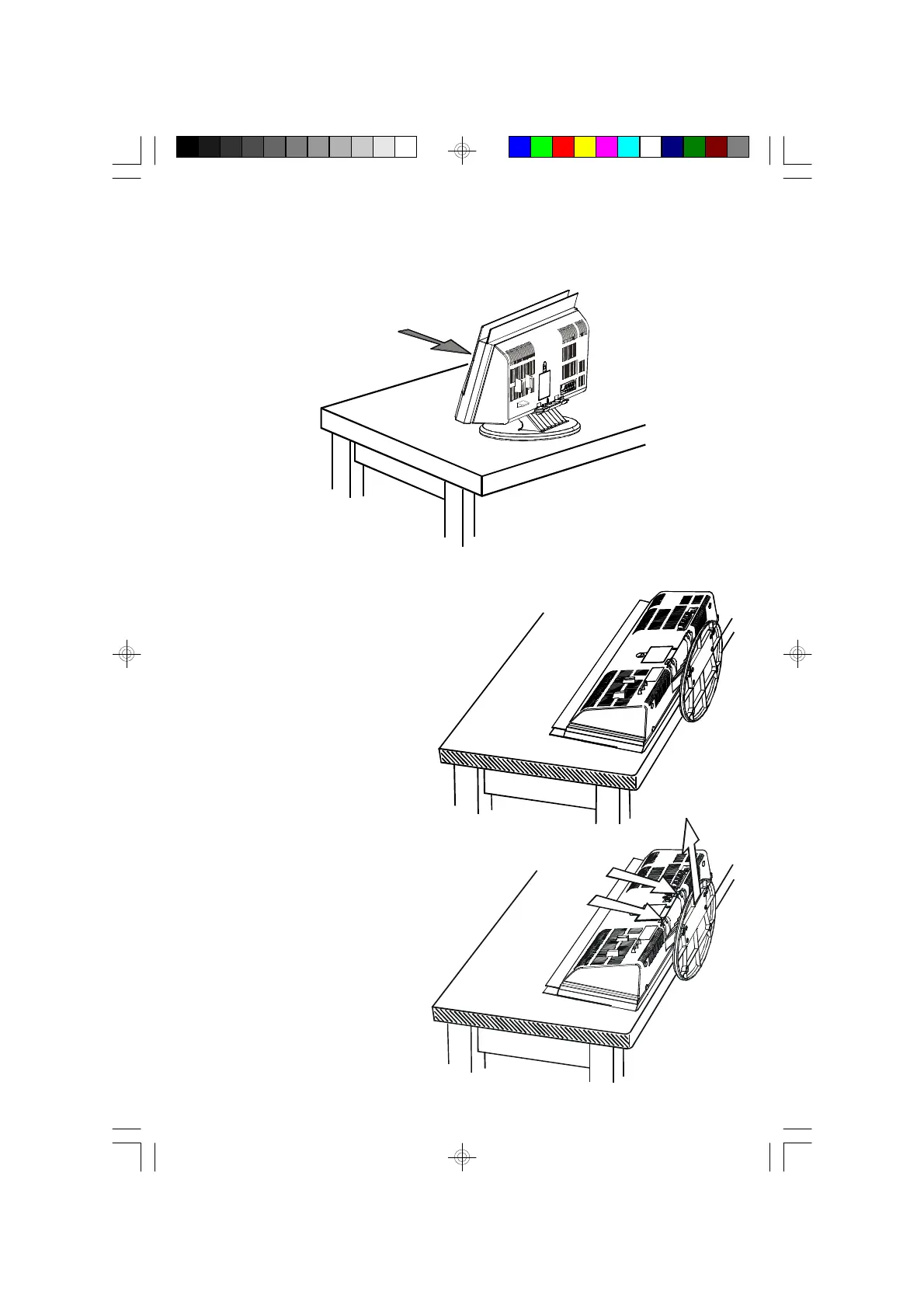

3.) Return the main unit and the pedestal base to the upright position and slide the
main unit all the way backward in the direction of the ‘arrow’ onto the pedestal
until the locking tabs ‘click’ and the main unit is locked in place.
If you ever need to remove the main unit from the pedestal:
1.) Place the entire unit face down
on a flat surface.
2.) (A) Depress the two pedestal
locking tabs to release the
pedestal.
(B) Slide the pedestal upward
to completely remove it from
the main unit.
