9
(1) Remove the gasket door from door plate.
(2) Remove the barrier screen inner from door plate.
(3) Remove the door frame from door plate.
(4) Remove the stopper hinge top from door plate.
(5) Remove the spring and the hook.
(6) Remove the barrier screen outer from door frame.
(7) Reverse the above steps for reassembly.

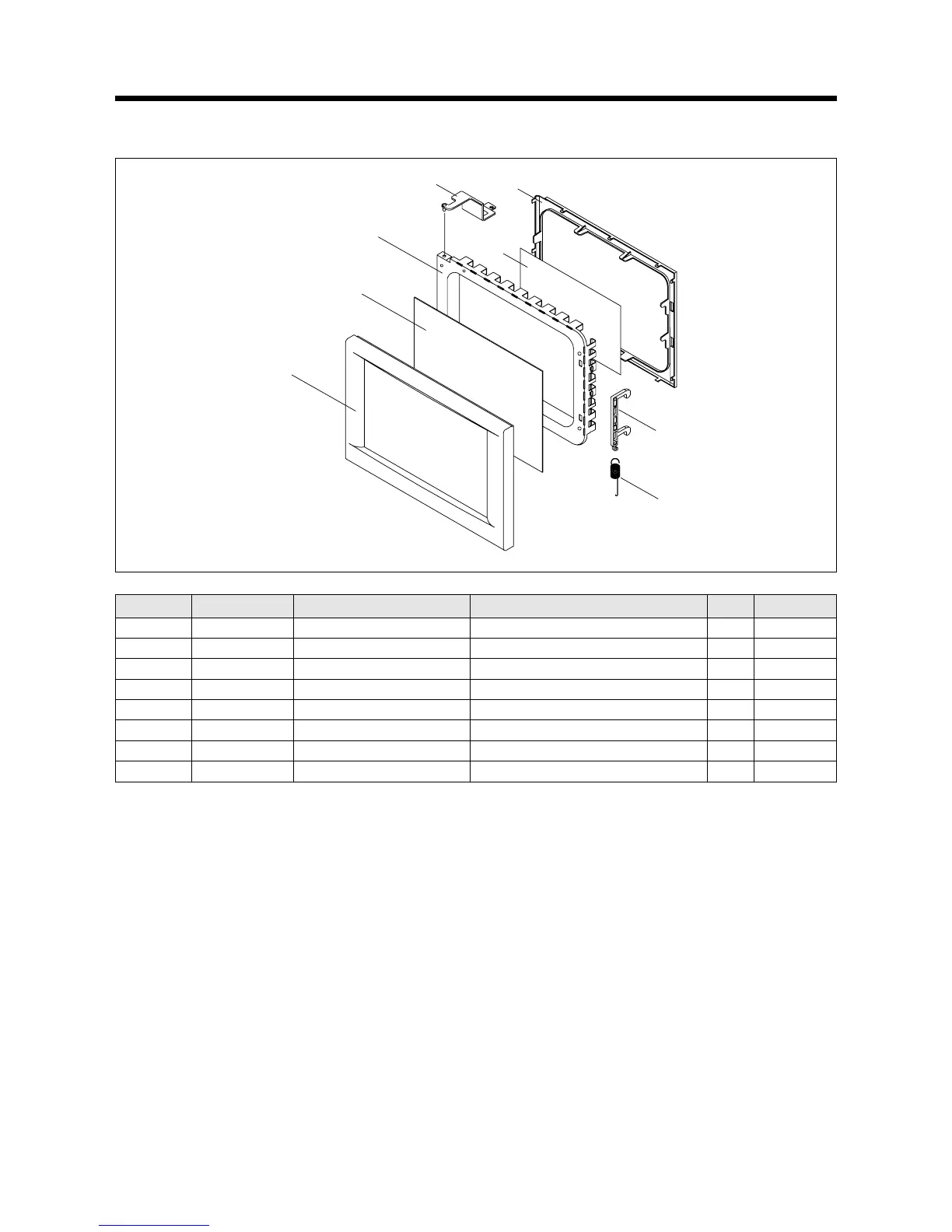

3. To remove door parts.
REF NO. PART CODE PART NAME DESCRIPTION Q’TY REMARK
A01 3517005900 BARRIER-SCREEN *O PET T0.25 1
A02 3512204310 FRAME DOOR ABS XR-401,H-2938 1
A03 3515202900 STOPPER HINGE *T AS KOR-121M0A 1
A04 3511711300 DOOR PAINTING AS KOR-1A1G0A 1
A05 3517005800 BARRIER-SCREEN *I PE T0.1 1
A06 3512301900 GASKET DOOR PP 1
A07 3513100700 HOOK POM 1
A08 3515101300 SPRING HOOK PW1 1
To Next Page
