50 Chapter 5 Use Of Monitoring Module M800D

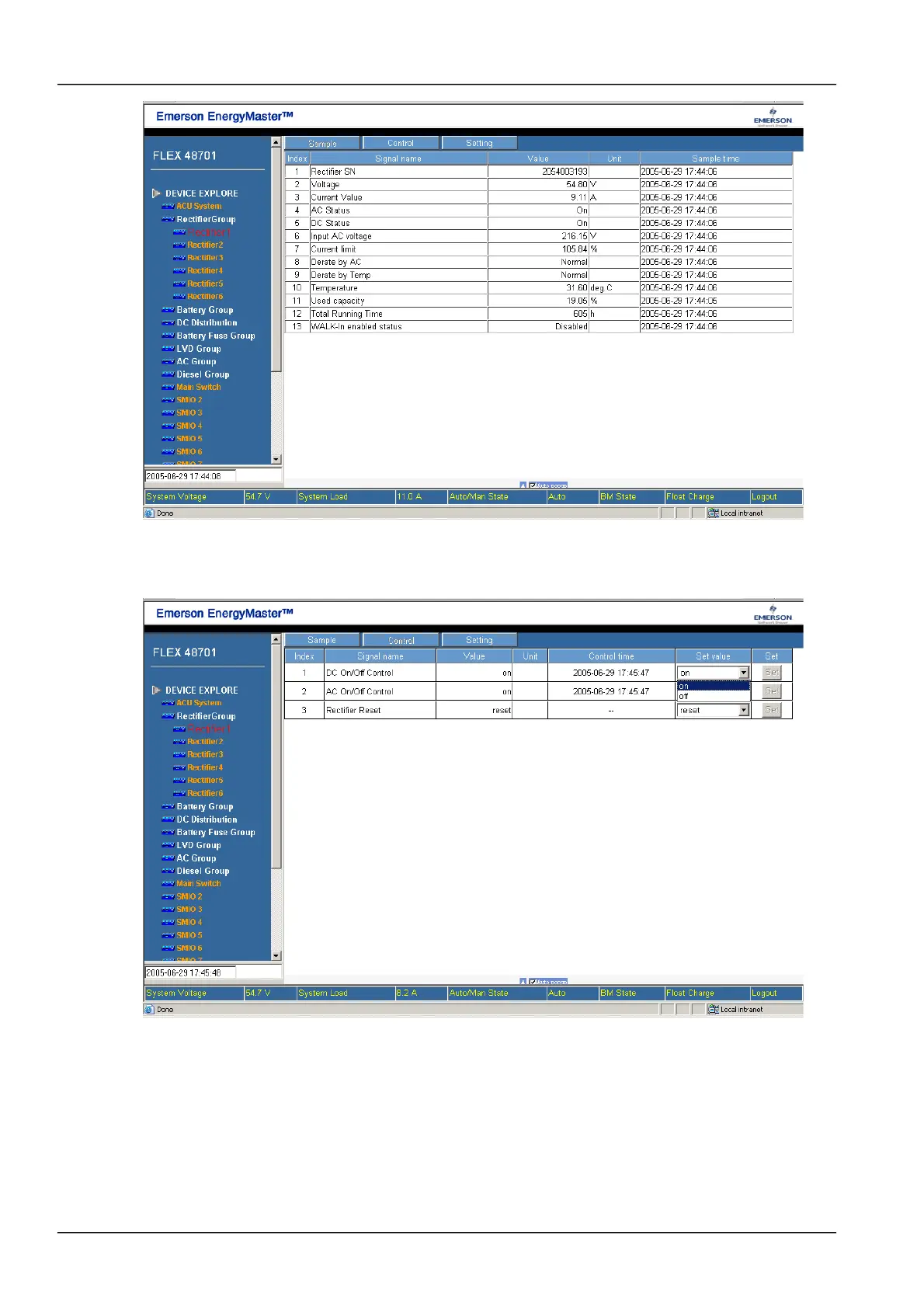

Figure 1.4 Sampled values of single rectifier
The screen shown in Figure 4-9 shows the sample value of “Rectifier1”, similar to the operation of “RectifierGroup”,
the user can click the button “Control” to view the values of rectifier 1 that can be controlled, as shown in Figure 4-10.
Figure 1.5 Control screen of rectifier 1
In the screen shown in Figure 4-10, the user can control rectifier 1. For example, the user can set the AC input of
rectifier 1 to “on”.
Data browse, control and parameter setting of battery
Click the icon in the left of “BatteryGroup”, all the sampled values of the battery group are displayed as shown in
Figure 4-11.
