Chapter 5 Use Of Monitoring Module M800D 51

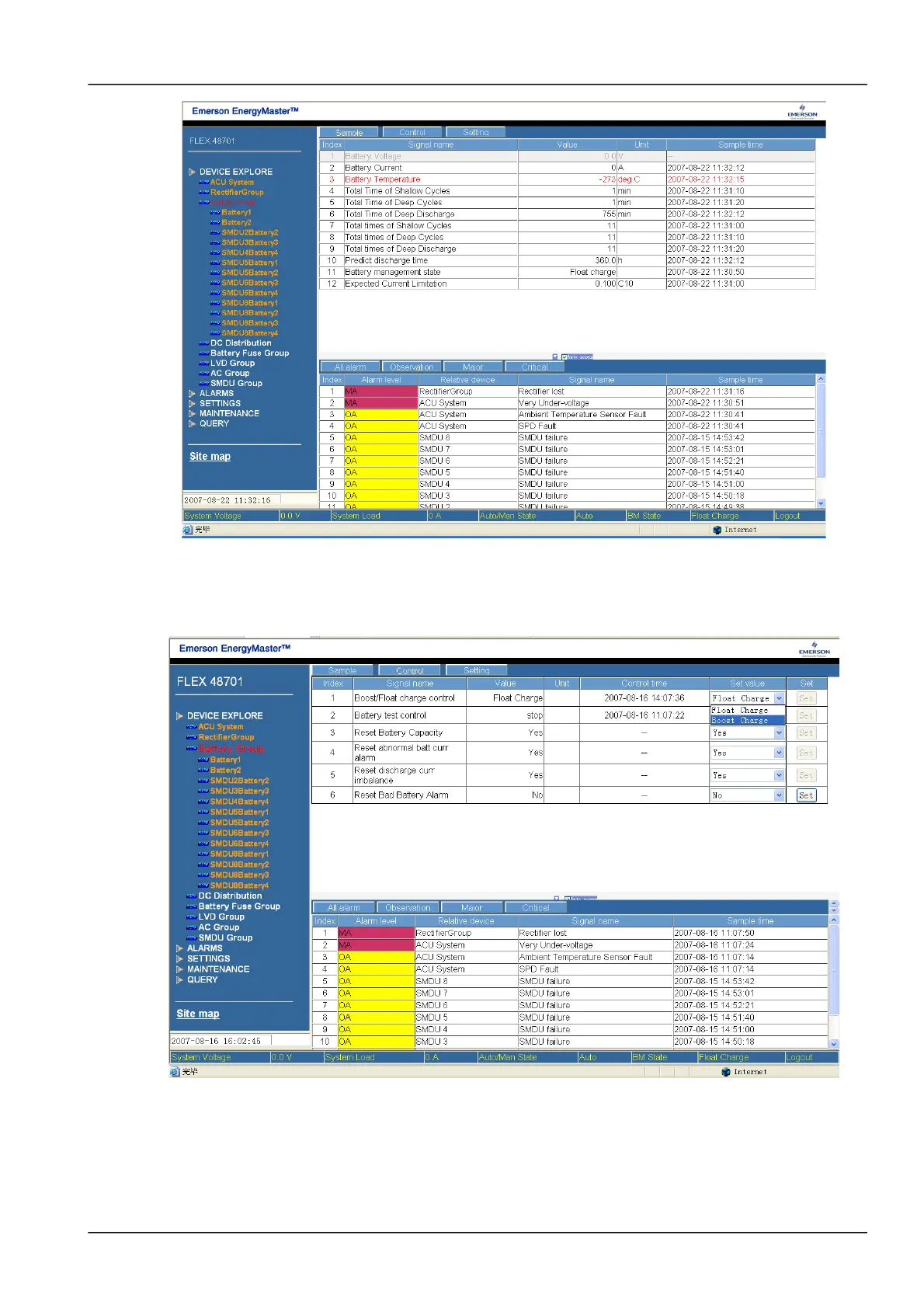

Figure 1.6 Battery screen (sampled value of battery)
In Figure 4-11, the battery voltage is the total battery string voltage. The battery current is the total battery current.
Similar to browse the control values of the rectifier, click the button “Control” to view the control signals of the battery
as shown in Figure 4-12.
Figure 1.7 Control the battery group
In the screen shown in Figure 4-12, the user can control the battery. For example, in the “Set value” box of
“Boost/Float charge control”, the user can set the “Float Charge” to “Boost Charge”, and click the button “set” to make
the setting become effective. Click the button “setting” to view setting signals of the battery as shown in Figure 4-13.
