11
emersonfans.com
Please contact 1-800-654-3545 for further assistance
U.L. Model No.: 42-CL
4. How to Hang Your Ceiling Fan
(Continued)
To avoid possible fire or shock, do not pinch wires
between the hanger ball/downrod assembly and
hanger bracket.
WARNING
!
Failure to seat tab in groove could cause damage to
electrical wires and possible shock or fire hazard.
WARNING
!

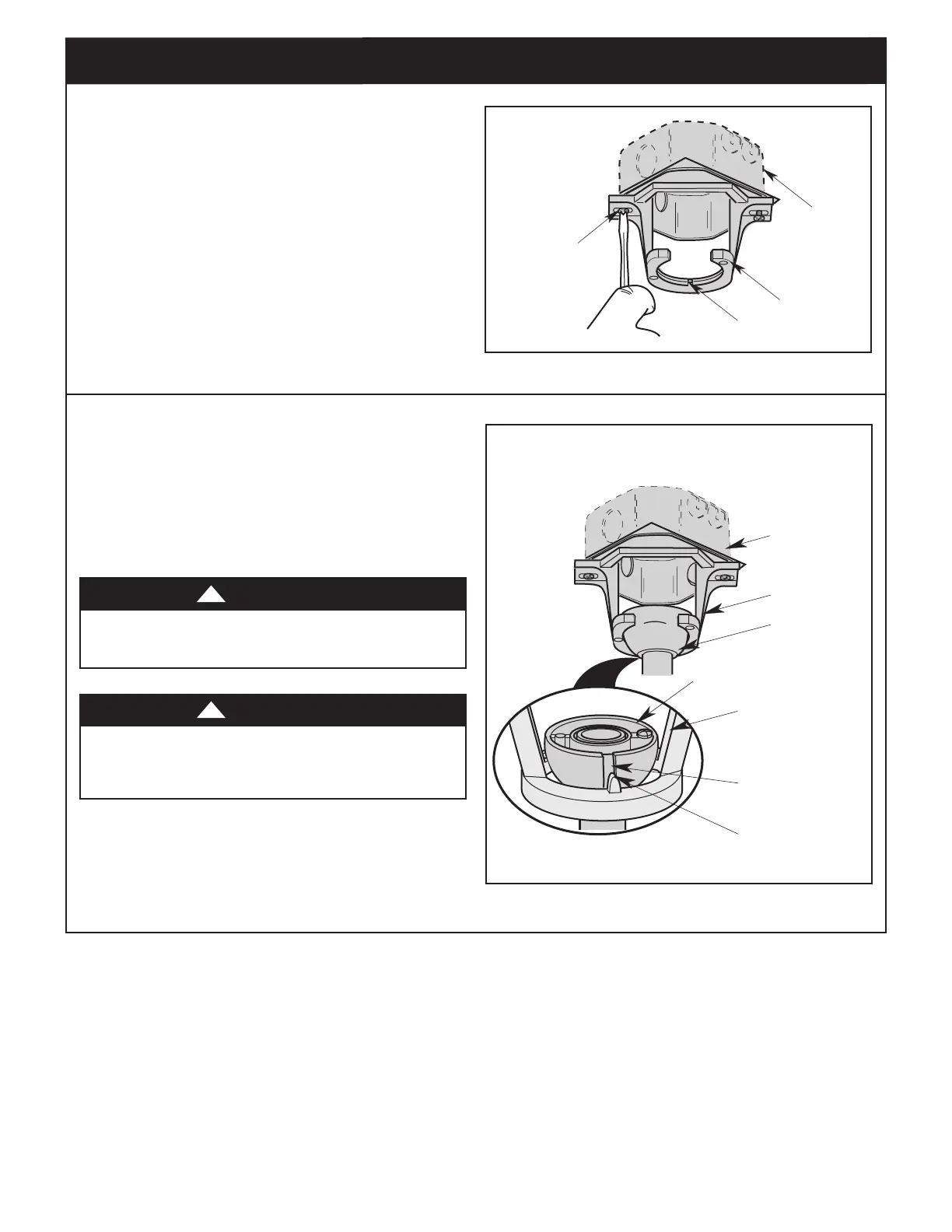

4.2
Securely attach the Hanger Bracket to the Outlet Box
using the Two Screws supplied with the Outlet Box.
(Figure 16).
TWO SCREWS
SUPPLIED WITH
OUTLET BOX
HANGER
BRACKET
ANTI-ROTATION TAB
OUTLET
BOX
Figure 16
4.3
Carefully lift the Fan and seat the Hanger Ball/
Downrod Assembly on the Hanger Bracket that was
just attached to the Outlet Box (Figure 17).
Be sure the Groove in the Ball is engaged with the
Anti-Rotation Tab on the Hanger Bracket (Figure 17).
OUTLET
BOX
HANGER
BRACKET
HANGER BALL/
DOWNROD
ASSEMBLY
NOTE: CEILING COVER, SUPPLY WIRES AND FAN WIRES
OMITTED FOR CLARITY.
HANGER BRACKET
HANGER BALL
HANGER BALL
GROOVE
ANTI-ROTATION TAB
Figure 17
To Next Page
