Wiring Diagrams

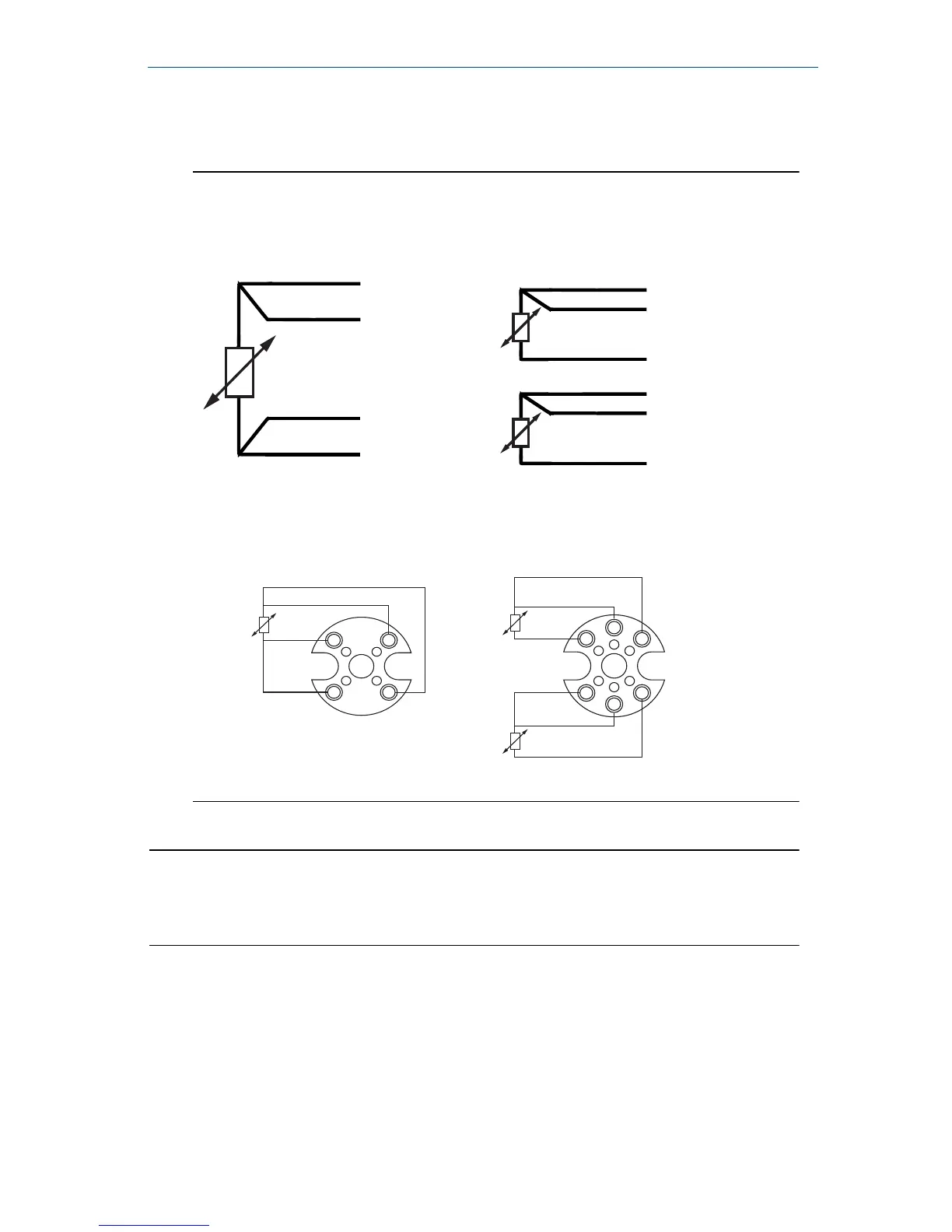

Figure 1. Rosemount Series 65 RTD Lead Wire Configuration
Note
For 3-wire systems use one white and two red leads. Do not connect the white leads. Insulate or
terminate the unused white lead in a manner that prevents shorting to the ground. For 2-wire
systems, connect both sets of leads.
Flying leads and spring-loaded adapter (termination codes 0, 1, or 3 only)
Single element Dual element
Terminal block (termination code 2 and 4)
Single element Dual element
Red
White
White
Red
Red
Red
Green
Blue
Blue
Black
3
4
1
6
Red
Red
White
White
6
1
3
4
1
2
3
4
5
6
4
5
6
1
2
3
Red
Red
White
Red
Red
White
