V Series
4
Type V/20-2
M
O
P
G

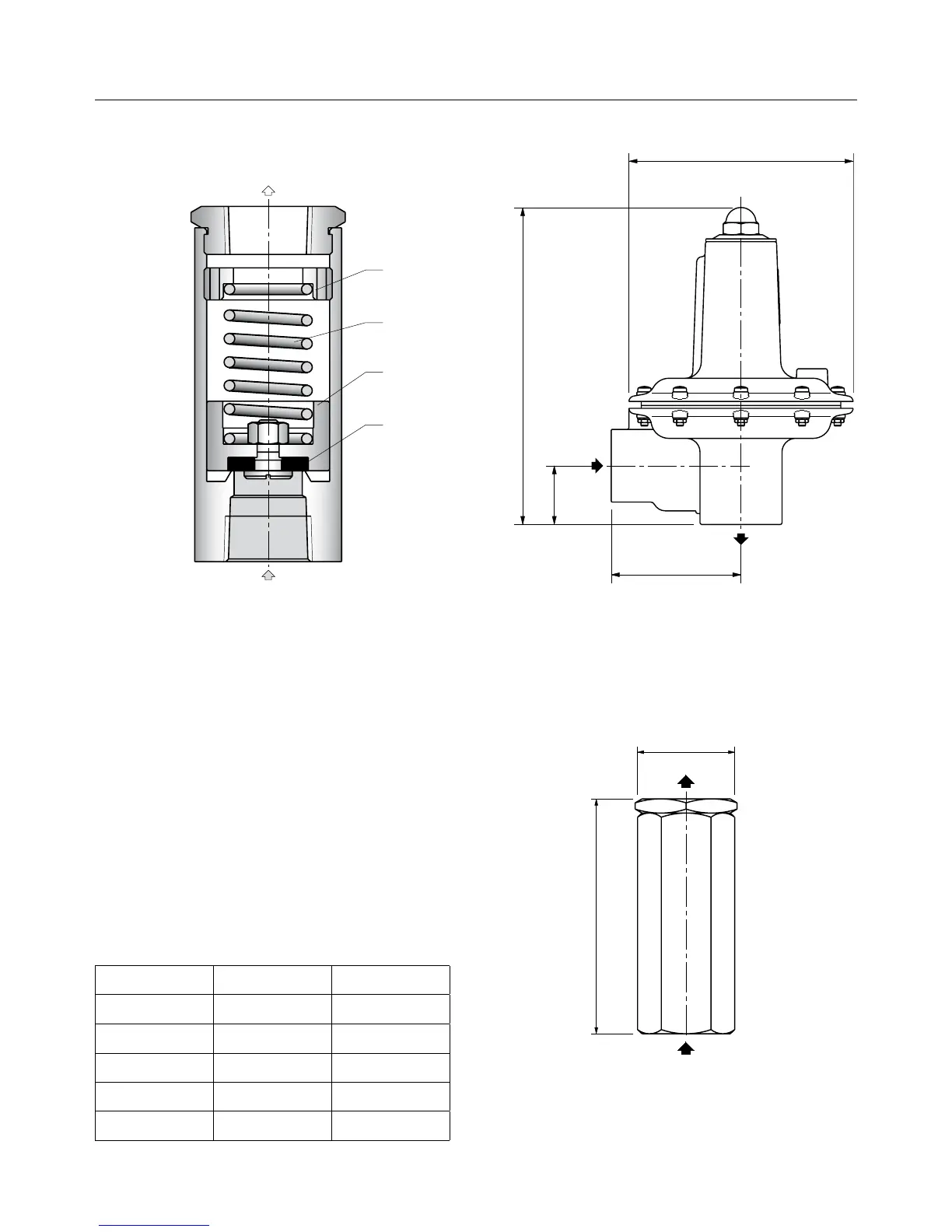

Figure 4. Closed V/20-2 Relief Valve
Whenever gas pressure under pad (O) is higher than
the force exerted by spring (M) in the opposite direction,
pad older device (P) is raised, thereby causing the release
orice to open.
Setting is carried out by adjusting the compression of spring
(M) through the appropriate ring (G).
It is recommended that relief valve be set at a value at least
15% higher than the operating pressure of the station.
DIMENSIONS AND WEIGHTS
V/50 and V/60 Series
Table 2. V Series Dimensions (mm)
TYPE V/50 SERIES V/60 SERIES
A 236 258
B 164 198
C 43 70
D 95 110
Weight (Kg) 1,3 1,9
Ø B
D
A
C
Figure 5. V/50 and V/60 Series Dimensions
Type V/20-2
63,5
133
Figure 6. Type V/20-2 Dimensions (mm)
Valve Weight 1.6 Kg
