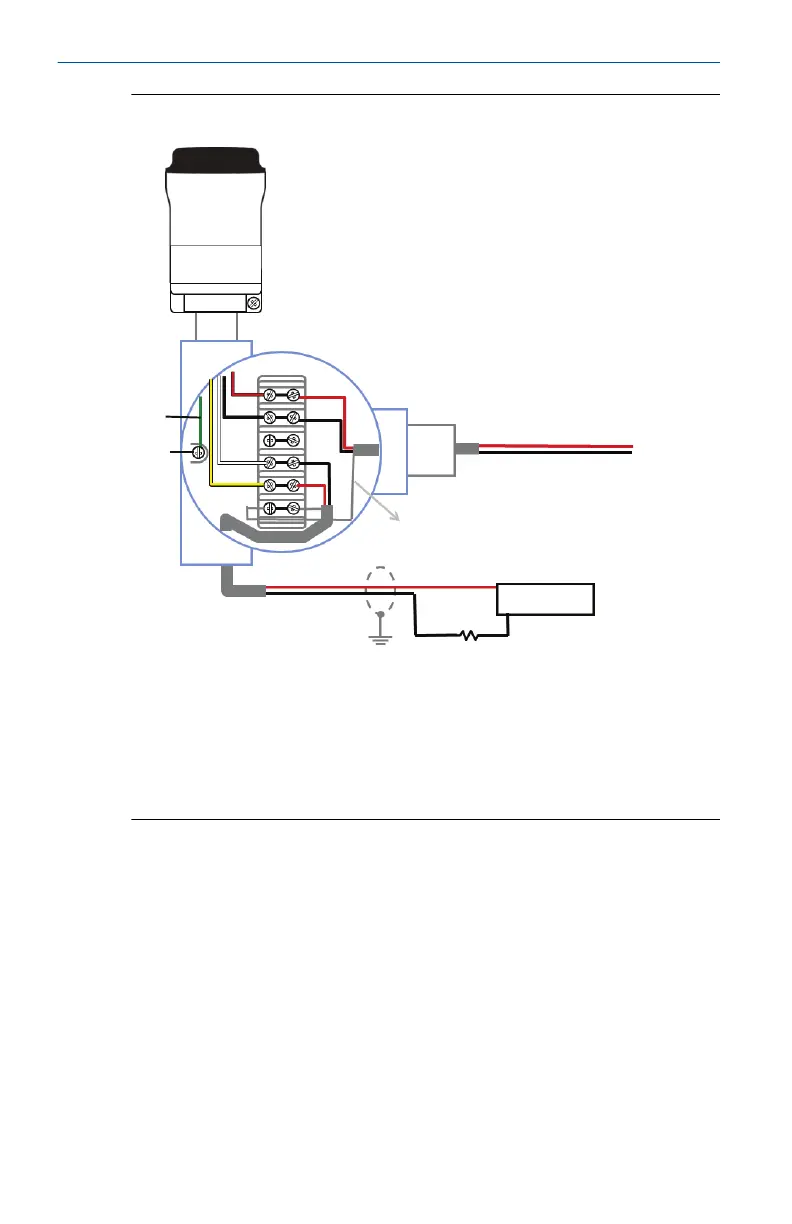

Figure 6-10: Remote Mount Wiring Diagram for 4-Wire Active Device
A
B
Green
C
D
+ COMM
- COMM
To Wired Device
4-20 mA Loop +
4-20 mA Loop -
E
F
A. THUM Adapter
B. Remote mount housing
C. Ground
D. Shield wire
E. Load resistor ≥ 250 Ω
F. Input card
