2 Bench top configuration
When performing bench top configuration it is suggested that you connect
the THUM Adapter to a wired device. If this is not possible, the following
wiring diagrams can be used. For bench top configuration, ensure the power
supply used is limited to 0.5 A maximum.

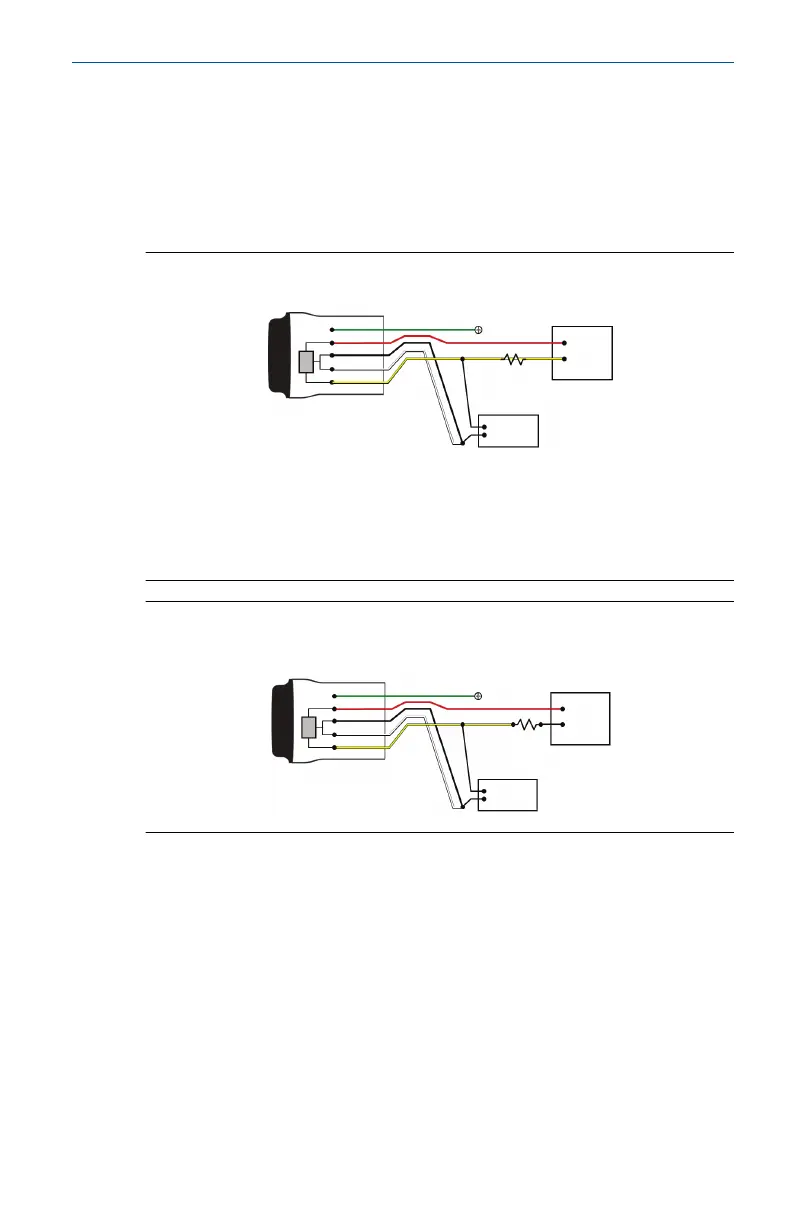

Figure 2-1: THUM Adapter Only, Powered by a Current Source
A
Green
Red
Black
White
Yellow
B
C
D
+
-
A. THUM Adapter
B. Ground
C. 20 mA current source
D. HART Modem
Figure 2-2: THUM Adapter Only, Powered by a 24 V Power Supply with
1200 Ohm Resistor to Limit Current to 20 mA
Green
Red
Black
White
Yellow
A
B
C
+
-
D
September 2020 Quick Start Guide
Quick Start Guide 7
To Next Page
