Clockwise calibration - Press the button greater than 8 seconds if you are going
to calibrate using a clockwise rotation from the 4ma position to the 20mA
position. (LED will start flashing a 5 - 2 code indicating that calibration mode is
active and the unit is waiting to calibrate the 4mA position).
Step 3: Rotate valve to the desired position corresponding to 4mA. (This
can be the open or closed position)
Step 4: Press and release the button to capture the 4mA value (The LED
will start flashing a 3-3 code indicating that the unit is waiting to
calibrate the 20mA position)
Step 5: Rotate valve to the desired position corresponding to 20mA (This
will be the position opposite of the position in step 3)
Step 6: Press and release the button to capture the 20mA value (The LED
will turn on continuously)
Pneumatic Hookup Procedures
Prior to connecting the supply air to the spool valve, flush the system to re-
move any debris or contaminates. Galvanized pipe can easily flake and con-
taminate the system and therefore is not recommended. A 50 micron point of
use filter at every device is recommended.

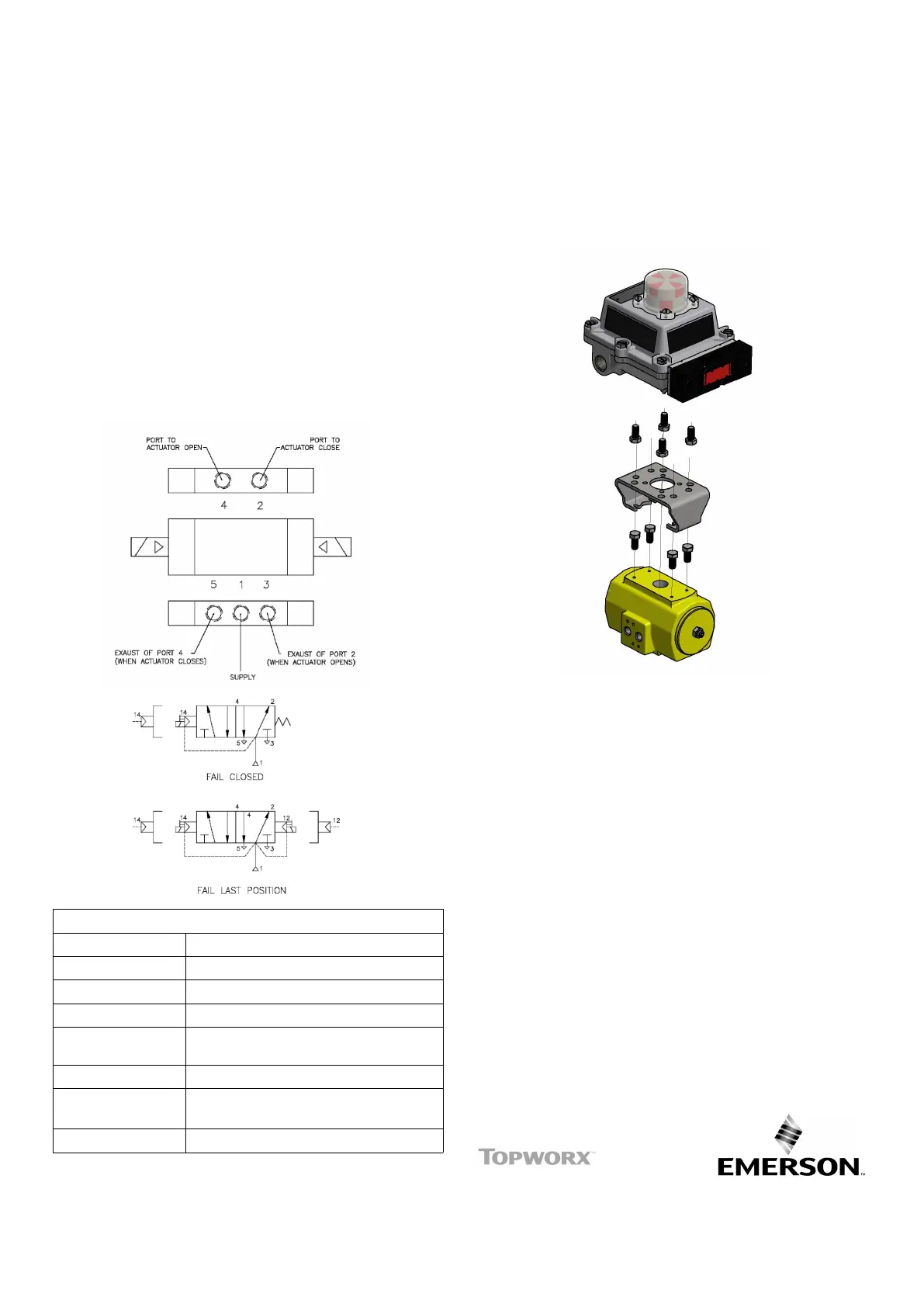

4-Way Spool Valves
The TopWorx™ spool valve is a 5 port, 4-way valve driven by an internally
mounted pilot valve. The spool valve supply port and work ports are marked
as follows:
Spool Valve Specifications
Medium Dried, filtered air (50 micron)
Operating Pressure 45psi (3.10 Bar) - 150psi (10.34Bar)
Flow Coefficient .86Cv or 3.7Cv
Environmental Rating Type 4, 4X, IP67 (metal enclosures only)
Port Size 1/2”NPT for 3.7 Cv valve
1/4”NPT for .86 Cv valve
Manual Override Available with push button momentary/ latching
Valve Body Available in Hardcoat Anodized Aluminum or 316
Stainless Steel
Valve Seals Buna-N/Silicone
Special Conditions of Safe Use (All installations)
Clean only with a damp cloth to prevent possibility of electrostatic discharge.
For Explosion Proof installations, the internal ground connection shall be used
and the external ground connection, if supplied in addition, is supplemental
bonding allowed where local authorities permit, or is required. Refer to the
D-Series Master IOM for Proof Testing instructions.
Preventative Maintenance
TopWorx™ switch boxes are designed to operate for one million cycles without
servicing. Call TopWorx™ when you are approaching this milestone for a pre-
ventative maintenance kit and instructions.
EU Declaration of Conformity
The products described herein, conform to the provisions of the following
European Community Directives, including the latest amendments:
Low Voltage Directive (2014/35/EU)
EMC Directive (2014/30/EU)
ATEX Directive (2014/34/EU)
About Emerson-TopWorx
Emerson is the global leader in valve control and position sensing for the pro-
cess industries. Our product solutions manage and control operations more
intelligently and efficiently under the most demanding and extreme conditions.
TopWorx™ discrete valve controllers enable automated on/off valves to com-
municate via FOUNDATION Fieldbus, Profibus, DeviceNet, AS-Interface, and
HART protocols. They attach to all rotary and linear valves and actuators and
carry a variety of global certifications.
For more information please visit www.topworx.com.
Global Locations:
Americas
3300 Fern Valley Road
Louisville, Kentucky
40213 USA
+1 502 969 8000
Europe
Horsfield Way
Bredbury Industrial Estate
Stockport SK6 2SU
United Kingdom
+44 0 161 406 5155
Asia-Pacific
Asia Pacific Pte Ltd - Top-
Worx c/o ASCO ASIA
BLK4008, Ang Mo Kio Ave
10, #04-17/22, Techplace 1
Singapore 569625
+65 6891 7550
Africa
24 Angus Crescent
Longmeadow Business
Estate East
Modderfontein
Gauteng
South Africa
+27 11 451 3700
Middle East
P.O. Box 17033
Jebel Ali Free Zone
Dubai 17033
United Arab Emirates
+971 4811 8283
ES-02390-1 R11
