Emerson Topworx D Series Mounting Instructions

Valvetop D-Series Standard Shaft
Discrete Valve Controller on
685/ATI Sliding Actuators
Mounting Instructions
D103991X012 Rev. B
June 2014
PARTS LIST
KEY
QTY
DESCRIPTION
1 1 ARM, CONNECTOR ASSY
2 2 STUD,CONT THD 1/2-13X6.00
3
2
NUT,HEX 1/2"
4 2 WASHER,PLAIN,TYPE A 1/2"
5
2
WASHER,LOCK,SPRING 1/2"
6 2 NUT,HEX 1/2"
7 1 ARM, EXTENSION
8 2 WASHER,PLAIN M4
9 2 SCREW,CAP,HEX SOCKET M4X0.7X12
10
1
BRACKET ASSEMBLY
11 4 WASHER,PLAIN M8
12 4 WASHER,LOCK,SPRING M8
13 4 SCREW,CAP,HEX HD M8X1.25X25
14 4 SCREW,CAP,HEX HD 5/16-18X0.62
15
1
BRACKET,ASSEMBLY
16 3 SCREW,MACH,FLAT HD M6X1X16 CROSS-REC
17
3
NUT,HEX M6
18 1 COUPLER, SHAFT
19 1 RETAINER, RING 3/8"
20
1
LEVER, ARM
21 1 WASHER,PLAIN 1/4"
22
1
SCREW,CAP,HEX SOCKET 1/4
-
20X1.00
23 1 NUT,SQUARE 1/4"
24 1 PIN, ROTARY, ARM M6X1X30 PART THD
25
1
NUT,HEX,JAM M6
26 1 RING, RETAINING, EXT 6.35MM SHAFT, E STYLE
27
1
WASHER,LOCK,EX.TEETH 1/4"
28 1 NUT,HEX M6
GG29705

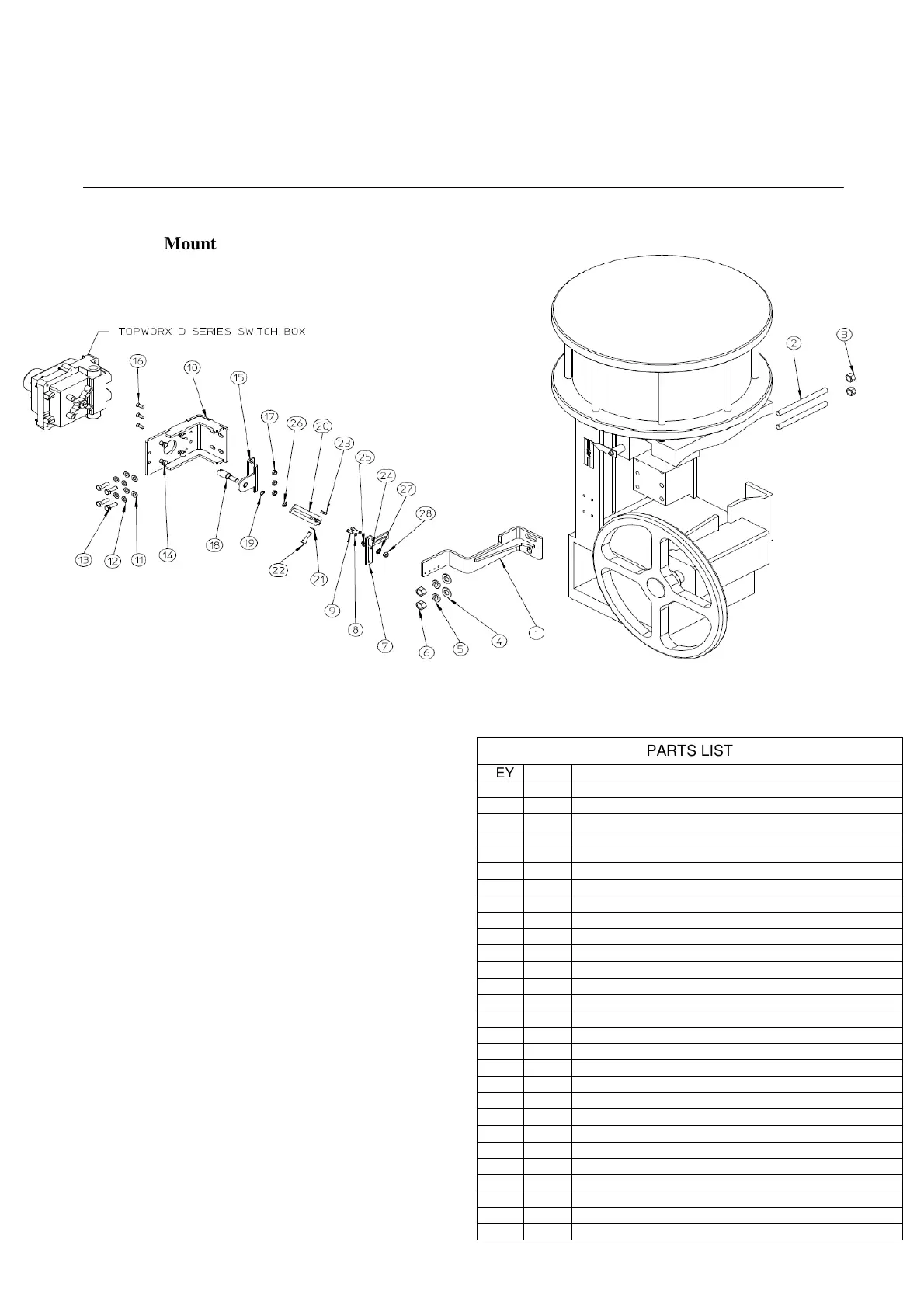

Figure 1. Mounting Parts Identification
