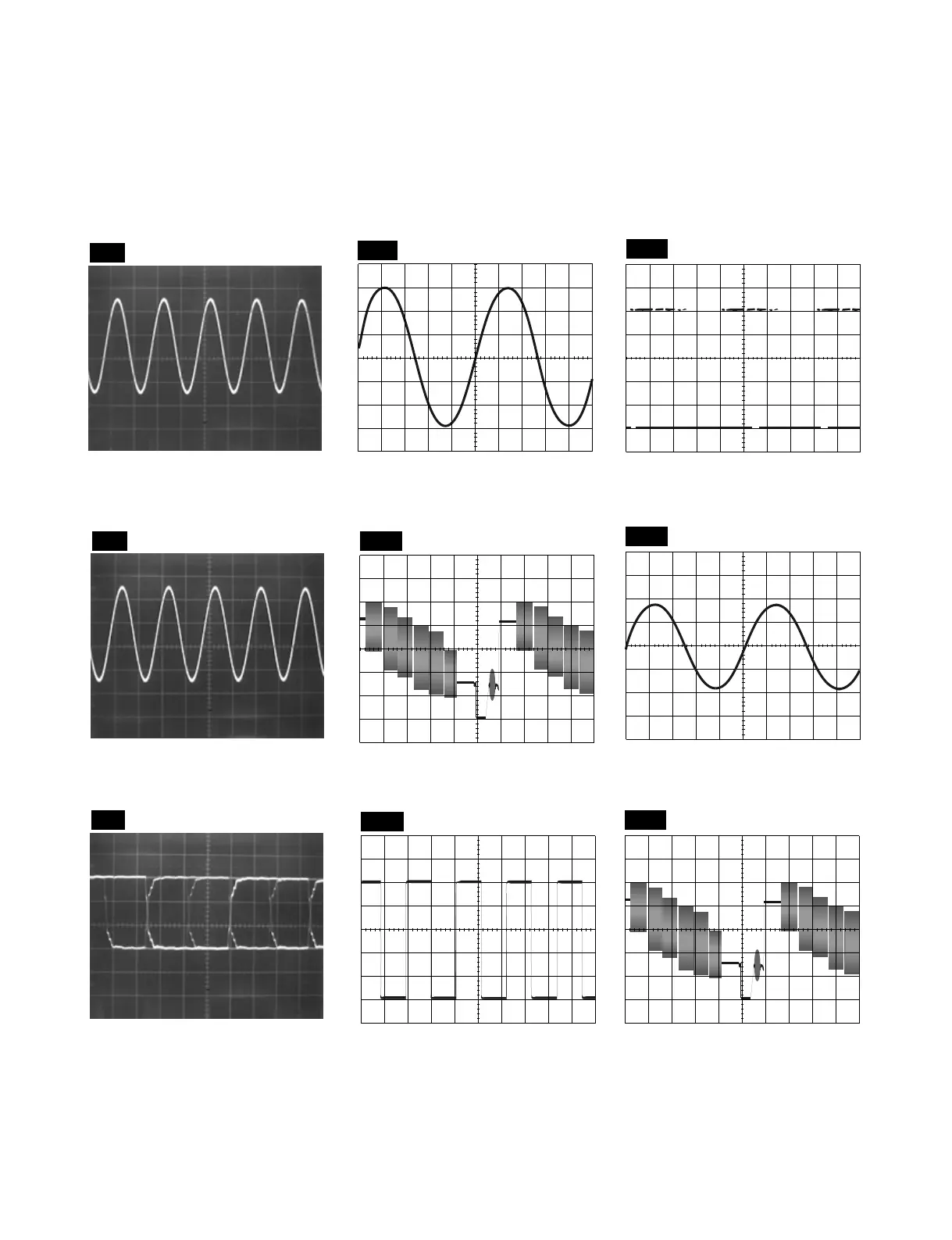

WAVEFORMS
1-12-2 H94X1WF
WF7
AUDIO-L
Pin 11 of CN1601
1V 0.5msec
WF8
AUDIO-R
Pin 13 of CN1601
1V
WF9
SPDIF
Pin 16 of CN1601
1V 0.1 µ sec
WF13
WF11
WF12
WF10
MOD-A 20mV x 10 0.2msec
WF14
WF15
TU AUDIO 20mV x 10 0.2msec
PLL-DATA 0.1V x 10 2msec
MOD-V 20mV x 10 2msec
PLL-CLK 0.1V x 10 2msec
(Pin 2 of TU701)
(Pin 14 of TU701)
(Pin 12 of TU701)
(Pin 11 of TU701)
(Pin 6 of TU701)
TU VIDEO 20mV x 10 10usec
(Pin 18 of TU701)
