Emerson U40310001 - Page 80

2-4-5 H94X1DA

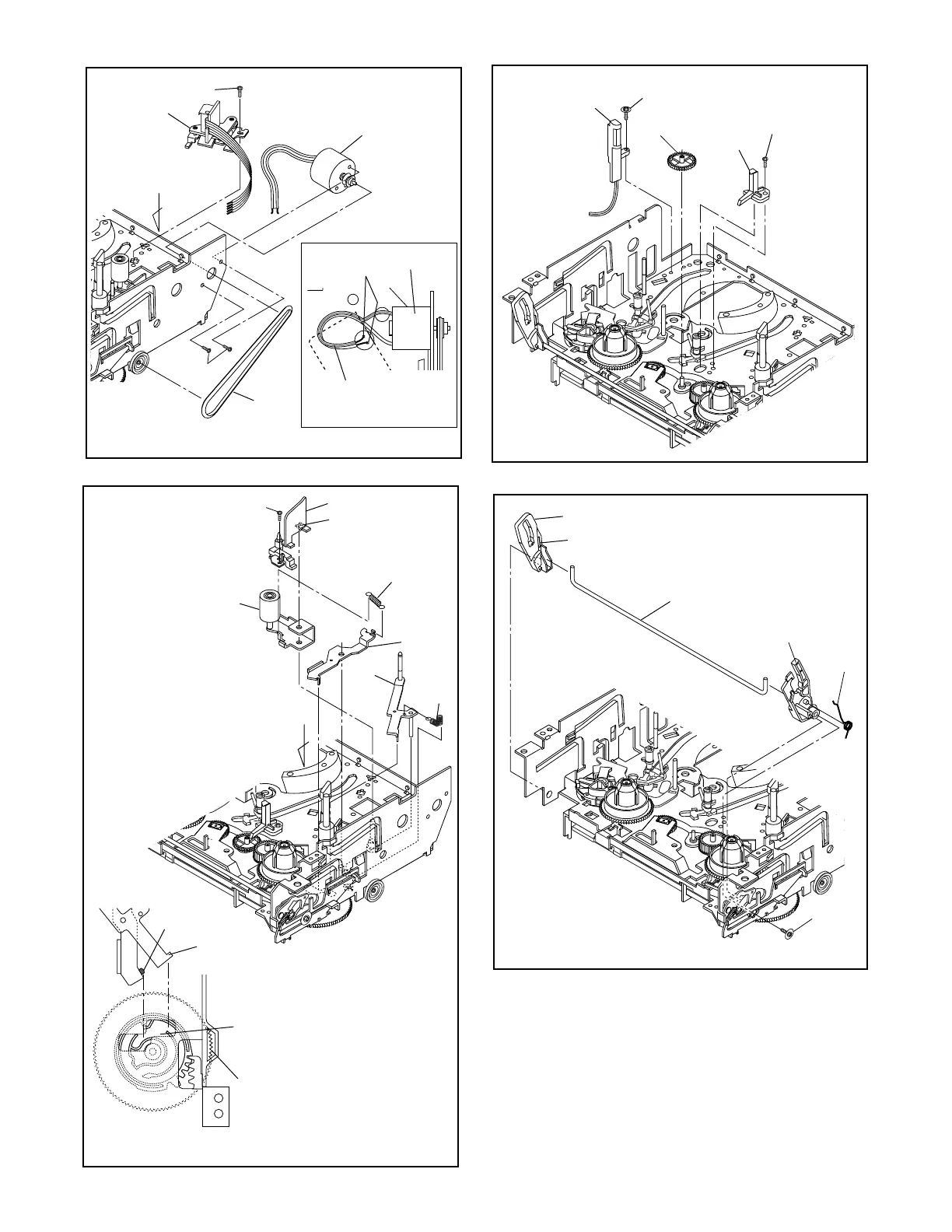

Fig. DM7
[8]
View for A
Desolder
from bottom
Lead with White Stripe
A
[8]
[9]
(S-4)
(S-3)
LDG
Belt
[28]
[11]
[13]
[12]
A
[10]
(L-4)
Adj. Screw
(P-3)
(P-2)
When reassembling [10] and
[12], confirm that pin of [10]
and pin of [12] are in the
groove of [28] as shown.
Pin of [12]
Pin of [10]
Groove of [28]
View for A
Fig. DM8
Fig. DM9
[14]
[15]
(S-6)
(S-5)
[16]
Fig. DM10
[18]
[17]
[19]
(S-7)
(L-5)
(P-4)
