Emerson U40310001 - Page 82

2-4-7 H94X1DA

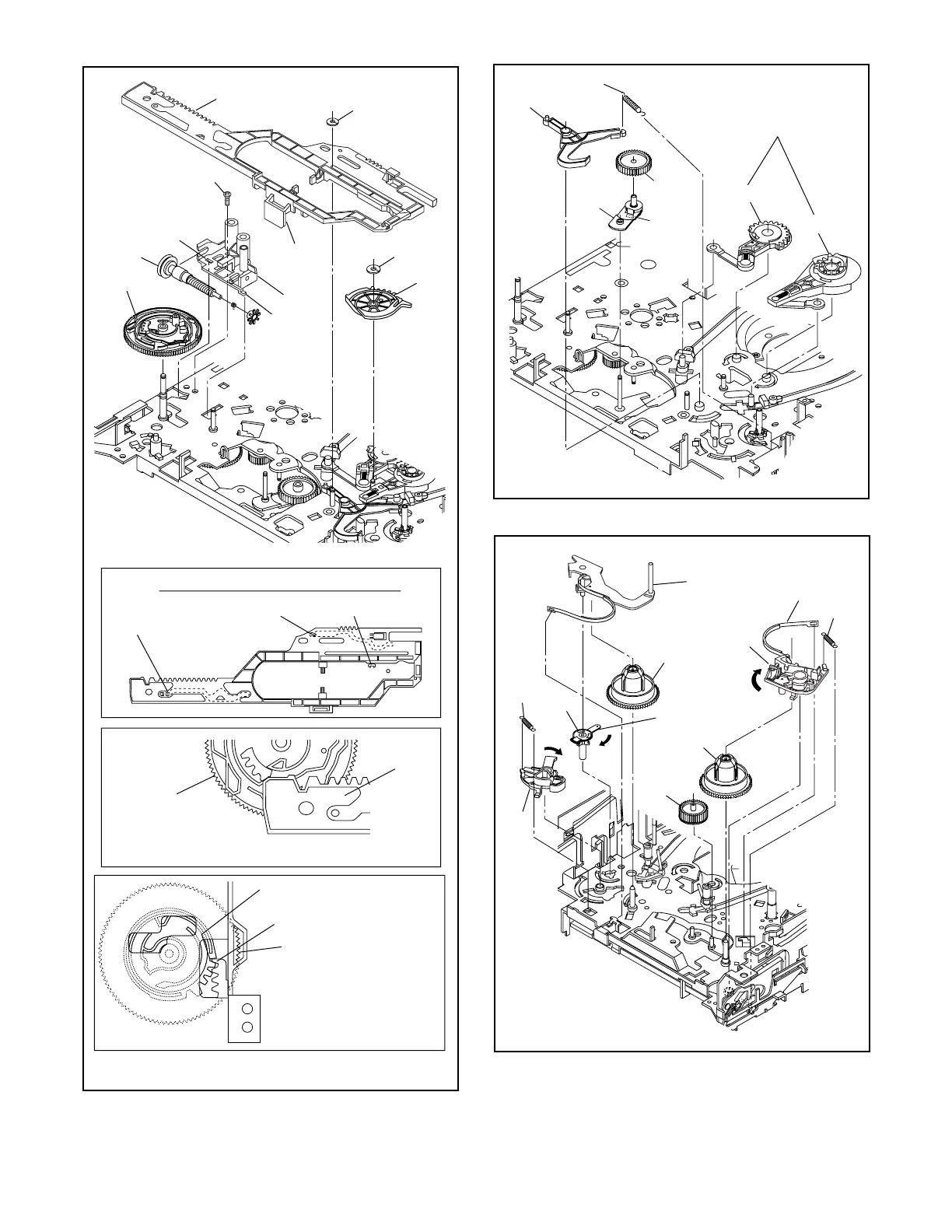

When reassembling [28],
align the first groove on
[28] to the first tooth on
[44] as shown.
[28]
Top View
First tooth on [44]
First groove on [28]
Align [25] and [28] as shown.
Bottom View
[28]
Pin of [34]
Pin of [31]
Position of Mode Lever when installed
Pin of [35]
Fig. DM13
[25]
[24]
(C-3)
(S-9)
[25]
[27]
[26]
[28]
(C-2)
(L-8)
(L-9)
(L-10)
Refer to the Alignment
Section, Page 2-4-9.
Fig. DM14
[31]
[30]
[29]
(L-11)
(P-6)
[32]
[33]
Fig. DM15
[35]
[37]
turn
turn
[38]
[39]
[40]
[36]
(P-8)
(P-7)
turn
Break belt
[34]
(L-12)
