2.3 Nameplate description

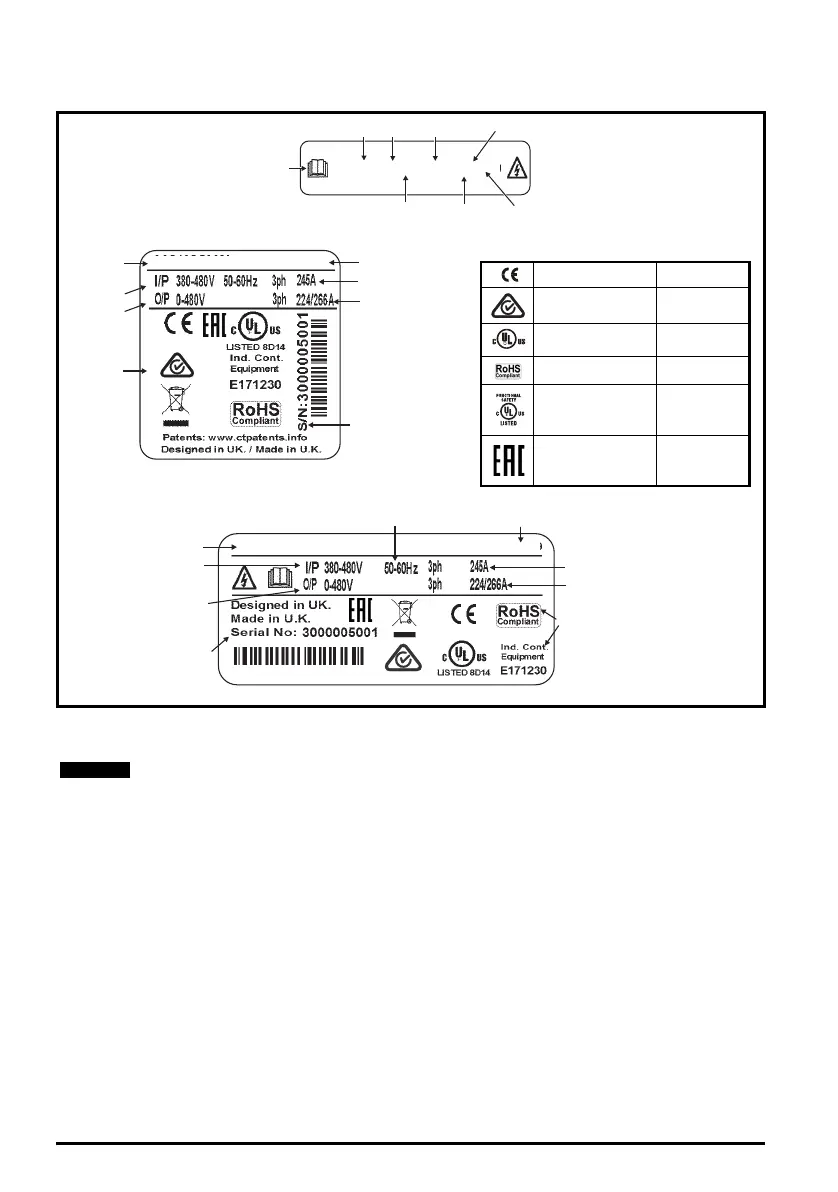

Figure 2-2 Typical drive rating labels
Refer to Figure 2-1 Model number on page 11 for further information relating to the labels.
Date code format
The date code is split into two sections: a letter followed by a number. The letter indicates
the year, and the number indicates the week number (within the year) in which the drive
was built. The letters go in alphabetical order, starting with A in 1991 (B in 1992, C in 1993
etc).
Example: A date code of Y28 would correspond to week 28 of year 2015.
Normal/Heavy
Duty power rating
Approvals
Input phases & input current
Output phases & Heavy
Duty/Normal Duty rating
Serial number
Input voltage
Output voltage
Customer and date code
110/132kW STDN39
Model
Approvals
Input phases & input current
Output phases & Heavy
Duty/Normal Duty rating
Serial number
Input voltage
Output voltage
Customer and date code
M600-094 02240 E10
110/132kW STDN39
Input frequencyInput frequency
M600-094 02240 E10
Model
Frame
Voltage
Heavy Duty
current rating
Power
format
Control pod fitted
Fan power
supply fitted
Refer to
User Guide
Key to approvals
CE approval Europe
RCM regulatory
compliance mark
Australia
UL / cUL approval USA & Canada
RoHS compliant Europe
Functional safety USA & Canada
Eurasian conformity Eurasia
