EMERYMARK EMP 200 - Electrical Requirements and Connections

Operation Manual EMP
www.emerymark.com
42
The EMP500, EMP1500 and EMP3000 models require a three-phase connection at 220 Volts.
The EMP200 model requires a single-phase or three-phase connection at 220 Volts, according
to your preference.
In order to connect the machines to the power supply, you need to install the corresponding
plug according to your equipment:
MODEL SINGLE-PHASE THREE PHASE
EMP-200 L6-30 *L15-30
EM-500 --- *L15-30
EMP-1500 --- *DIRECT CONNECTION TO DISCONNECTOR BOX OR LOAD CENTER
WITH 80 AMPS THERMAL PROTECTION OR 80 TO 100 AMPS
INDUSTRIAL PLUG, 240VAC, 4 WIRE, 3 PHASE PLUS EARTH
EMP-3000 --- *DIRECT CONNECTION TO DISCONNECTING BOX OR LOAD
CENTER WITH INDEPENDENT THERMAL PROTECTION OF 150 AMPS
OR INDUSTRIAL PLUG OF 150 AMPS WITH THERMAL
PROTECTION OF 150 AMPS, 4 WIRE, 3 PHASES PLUS EARTH
TYPE OF PLUG
1.2.1 Electrical requirements
WARNING:
Make sure that the plug has not been installed in the power supply.
!

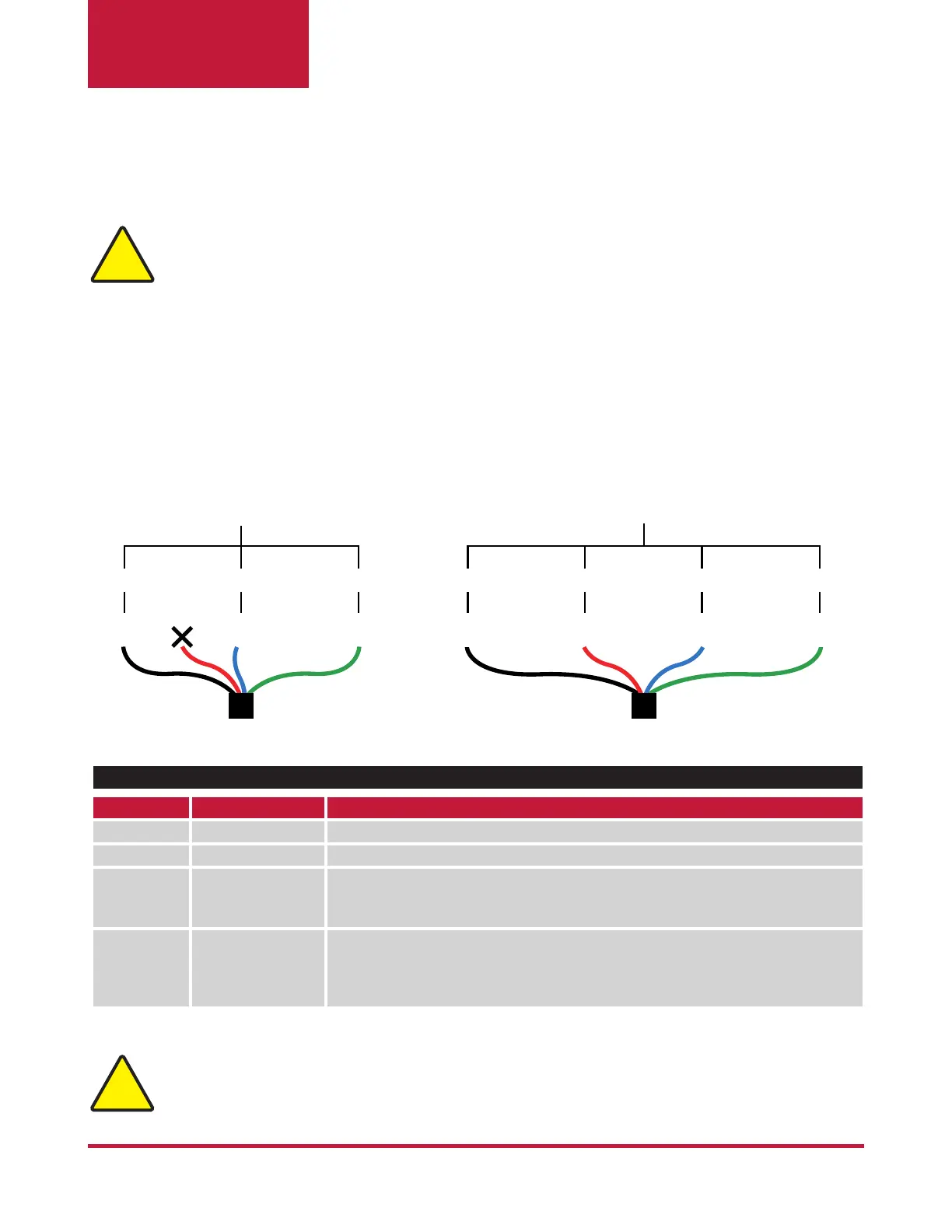

SINGLE-PHASE
GROUNDL3L1
BLACK BLUE GREEN
THREE PHASE
GROUNDL1 L2
BLACK RED BLUE
L3
GREEN
WARNING:
Use copper conductors only.
!
* Please consult your distributor in the US and Canada
