43
EMP 200
EMP 500
EMP 1500
EMP 3000
MODEL COUPLING SIZE
3/4
3/4
1
1 1/2

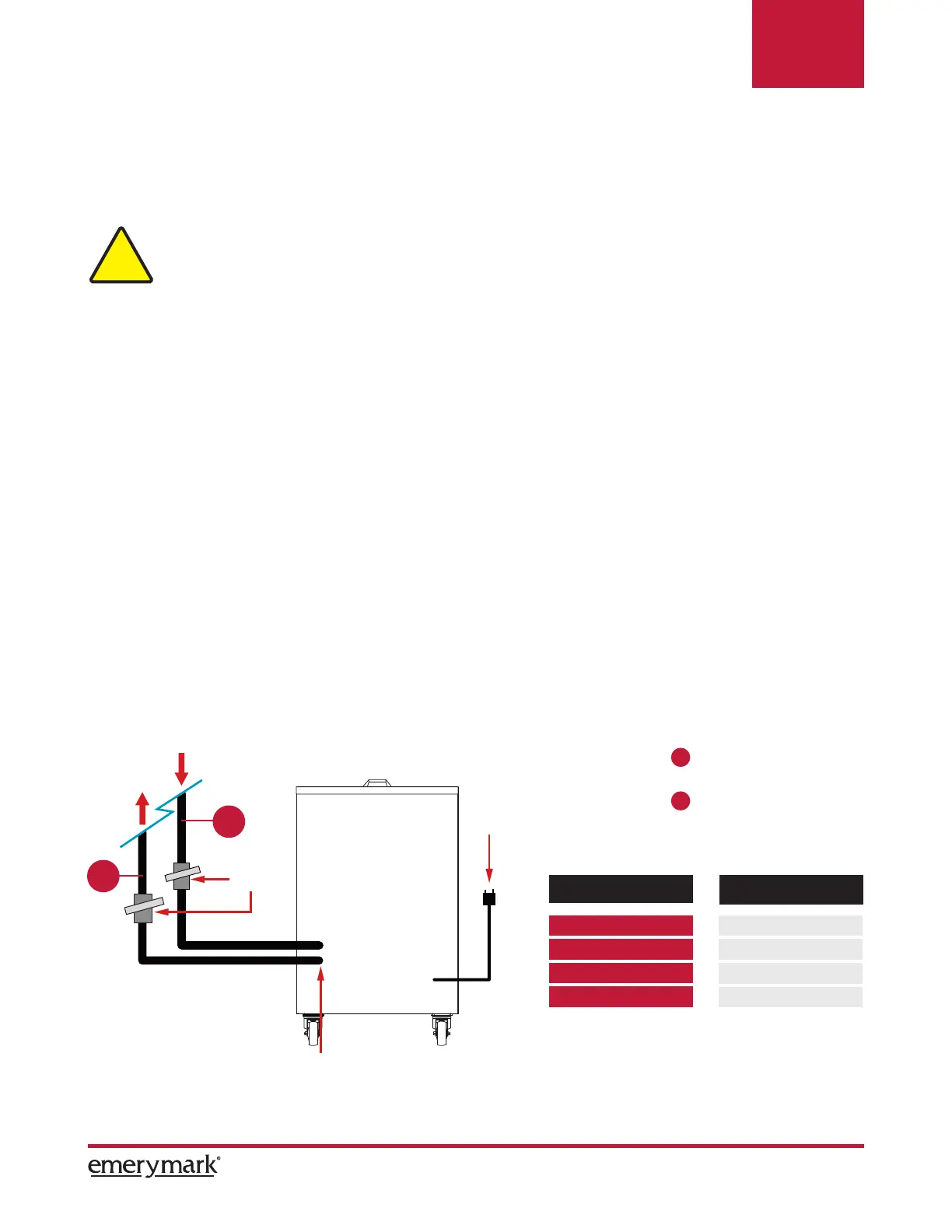

1.2.2 Water connections
Water connections are located on one side of the machine.
The connections should be previously instaled were the machine will be placed. Water -in- and
water -out- connections will need a hose of ¾” for each.
Ni
Cold
water
Hot
water
Water
valve
Cable
outlet
1
2
Water in (cold water)
Water out (hot water)
1
2
Water connections
coupling according to model
Coupling
It is important that the electrical installations are carried out by a qualied professional, as it
should calculate the power cable and meets the requirements of the equipment (size and ca-
pacity). The machine is equipped with heavy-duty cable.
!
NOTICE:
If you have a three phase delta system, connect higher voltage (wild wire) into L2 (red
cable).
NOTE: This machinery requires three-phase, four wire connections (three lines of voltage and
one ground), and the single-phase three-wire connection required (two lines of voltage and
ground).
Installation
