Remove the existing pickup, volume control, output jack, and pre-amp on/off switch if
there is one. The switch will not be used again because the installation now includes a
push-pull pot for the preamp on/off function.
The installation starts by installing the wires for the output jack.
Refer to Diagram #1
The installation starts somewhat backwards. Instead of installing the pickup first,
the output jack is installed.
It is first necessary to “Fish” the Green wire from the Output Jack cavity to the pickup
cavity, then to the control compartment. Attach a wire to one end of the Green wire by
wrapping it around the terminal and pull it through to the pickup cavity, then push it
into the control cavity as shown in Diagram #1.
After the Green wire is fished through, push
through the white output cable as shown.
Refer to Diagram #3
Push the terminals onto the jack.
White wire to the TIP Contact
Black wire to the SLEEVE Contact
Green wire to the RING Contact
Install the jack onto the jack plate and screw it into place.
Installation Instructions:
EMG Model: ALX (Alexi Laiho Signature Guitar Installation)
ALX-HZ (SIG) INSTRUCTIONS Page 2

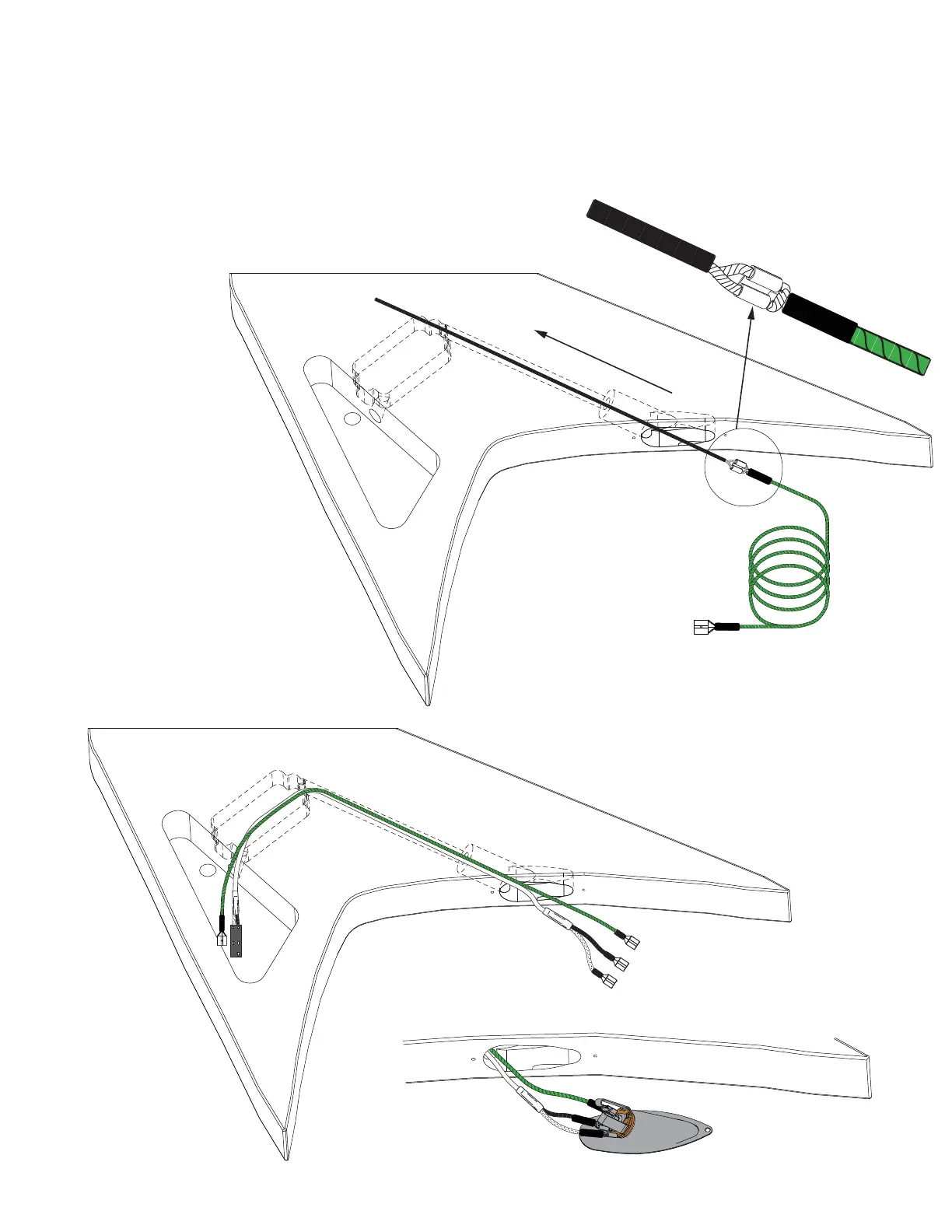

Diagram #1
Diagram #2
Diagram #3
Refer to Diagram #2
To Next Page
