EMG EXG - 2 Pickup Guitar Wiring with Selector Switch; Toggle Style Switch Wiring; Passive Tone Wiring

VOLUME
B122rH
VOLUME
B122rH
VOLUME
B122rH
VOLUME
B122rH
TONE
B124rH
RED
RED
RED
GROUND
BRIDGE P/U
NECK P/U
OUTPUT
RED
GROUND
BRIDGE P/U
NECK P/U
OUTPUT
EXG Page 3
2 Pickup Guitars using a selection switch:
Diagrams #4 and #5 show the pickups connected to the B245 Pickup Buss.
To learn more about the B245 Pickup Buss, be sure to go to the EMG Website:
http://www.emgpickups.com. More diagrams are available at the EMG website.
The EXG or any EMG Active Tone Control is shown following the pickup buss
and then to the output jack. A master volume could easily follow the SPC
before the output jack.
MASTER
TONE
Diagram #5
2 Pickups
Toggle Style Switch
Volume each Pickup (Volumes are independent)
EXG Control
OUTPUT
T
R
S
NK VOLUME
NECK PICKUP
BRIDGE PICKUP
BR VOLUME
BATTERY
NEG (-)
OUTPUT CABLE
NOTE:
REVERSED CONNECTOR
- 9V +
EXG
CONTROL

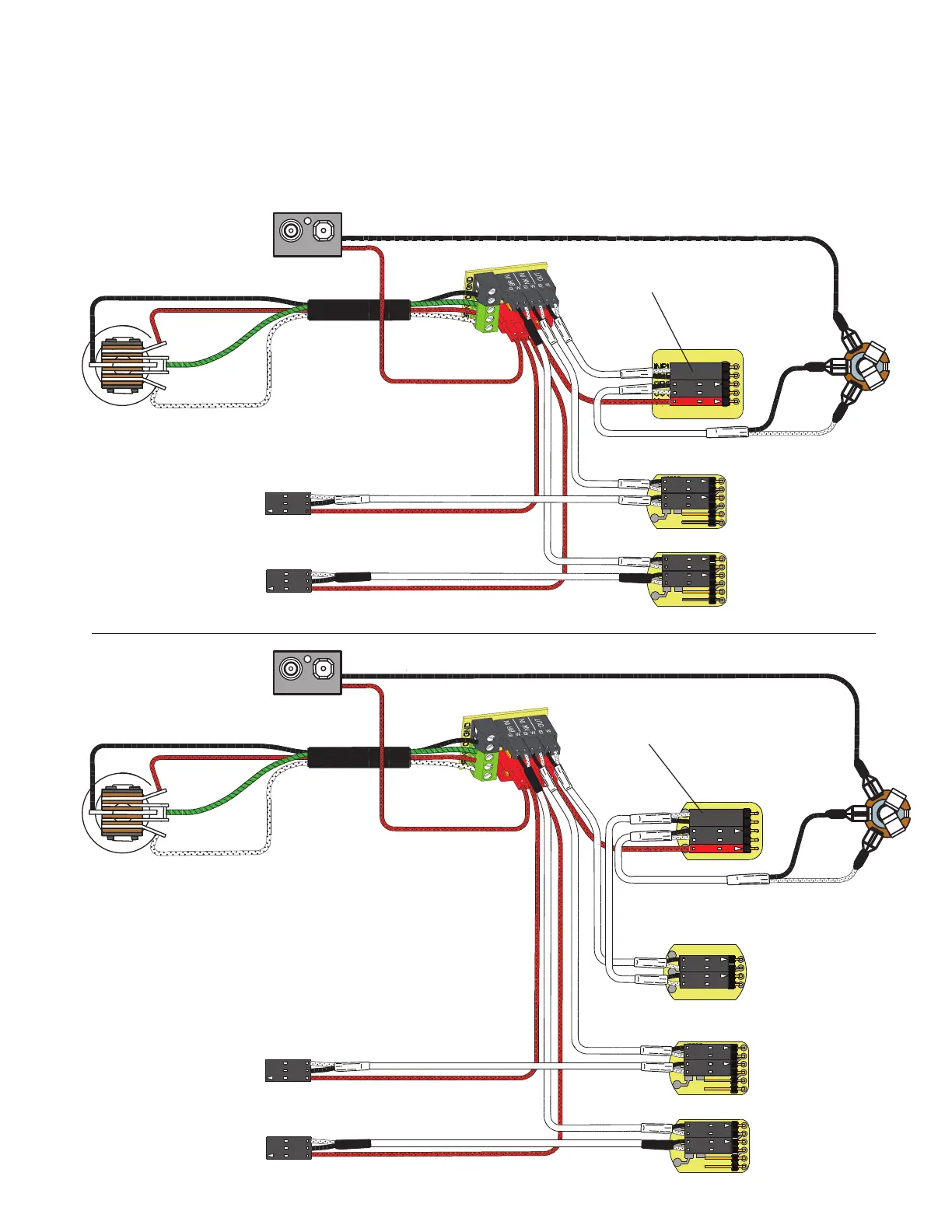

Diagram #6
2 Pickups
Toggle Style Switch
Volume each Pickup (Volumes are independent)
Passive Tone
EXG Control
OUTPUT
T
R
S
NK VOLUME
NECK PICKUP
BRIDGE PICKUP
BR VOLUME
BATTERY
NEG (-)
OUTPUT CABLE
NOTE:
REVERSED CONNECTOR
- 9V +
EXG
CONTROL
