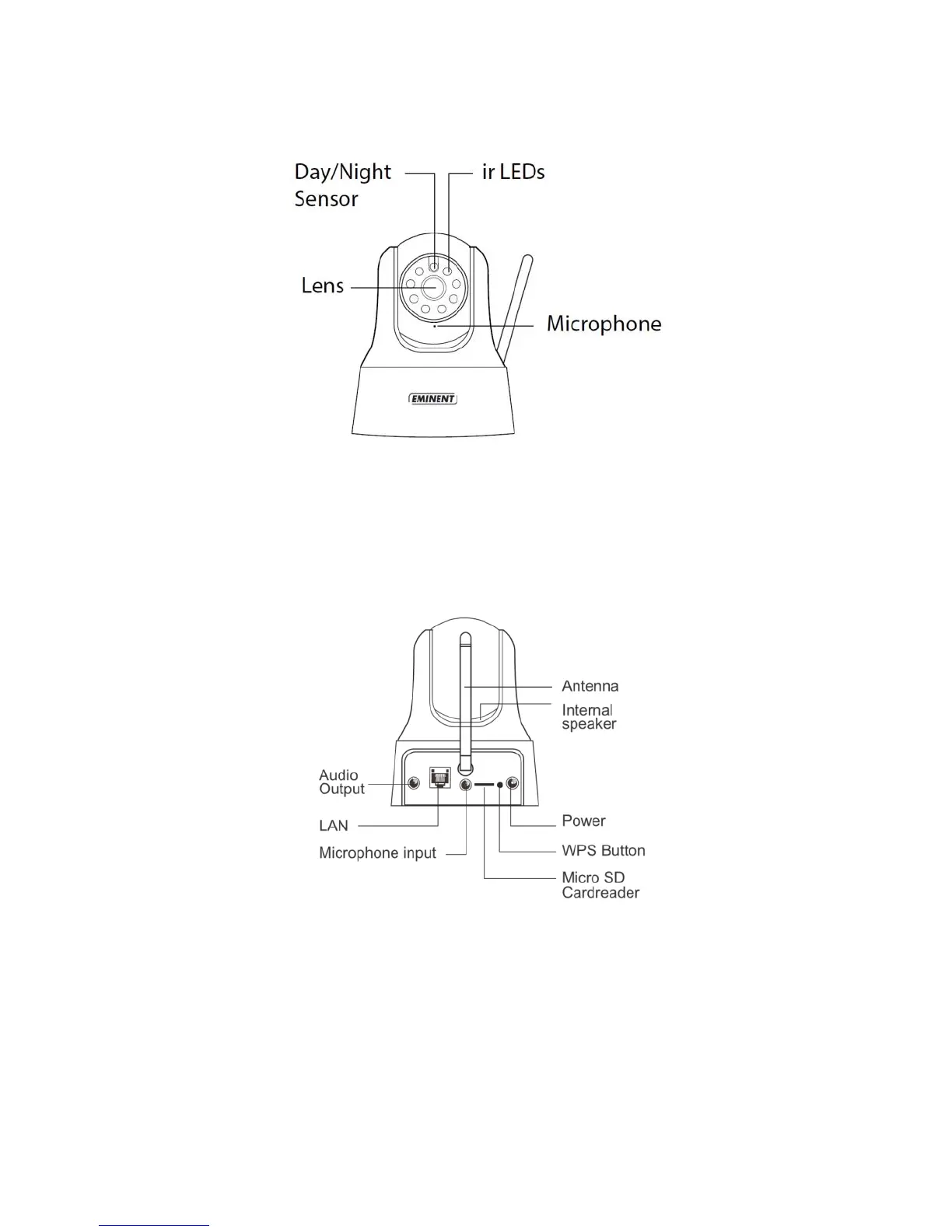

1.3 Major hardware components.
The major components on the front panel of the EM6225 are:
1. Microphone – for receiving the audio/voice.
2. Lens – the lens is inside the camera body and the focus of the lens is fixed, you
do not need to spend time to adjust the focus.
3. IR LED – for the Infra-Red lighting of the night mode usage.
4. Day/Night sensor – sensor for day/night detection
The major components on the back panel of the EM6225 are:
1. Power jack – this is the place to plug in the power adapter. The power needed for
this EM6225 is 5V/2A, please make sure you are using the correct power adapter.
2. Ethernet jack – this is the place to plug in the RJ45 Ethernet cable.
3. Speaker jack – connect to an external speaker for two way audio.
4. WiFi antenna
5. Internal Speaker
6. Microphone Jack
7. Micro SD-Card reader
8. WPS Button
