12
You must ensure that the device is correctly configured for your application.
Incorrect configuration could result in damage to the process being
controlled, and/or personal injury. It is your responsibility, as the installer, to
ensure that the configuration is correct.
Device parameters has factory default values. These parameters must be
set according to the system’s needs.
Only qualified personnel and technicians should work on this equipment.
This equipment contains internal circuits with voltage dangerous to human
life. There is severe danger for human life in the case of unauthorized
intervention.
Be sure to use the rated power supply voltage to protect the unit against
damage and to prevent failure.
Keep the power off until all of the wiring is completed so that electric shock
and trouble with the unit can be prevented.

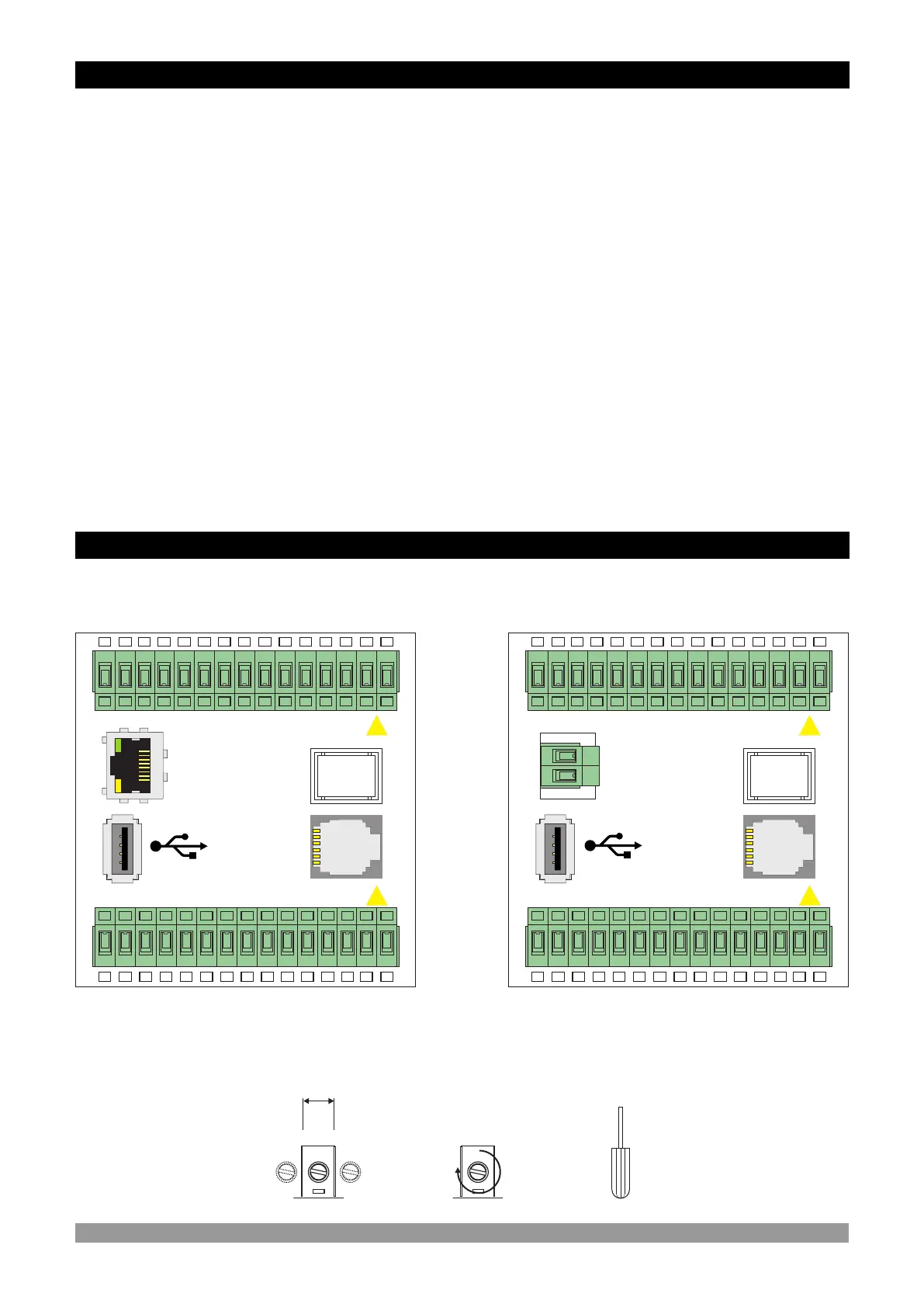

3.Electrical Wirings
3.1 Terminal Layout and Connection Instructions
c
c
c
c
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
RS 232
COMMUNICATION
a
a
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Screw driver
0,8 x3mm
Torque
0,5Nm
Max. 2.5mm / 0.098 inch
Wire Size:
18AWG/1mm²
Solid /Stranded
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
RS 232
COMMUNICATION
a
a
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
USB 2.0
USB 2.0
D +
D -
Terminal layout for
ethernet communication
Terminal layout for
RS485 communication
ETHERNET
COMMUNICATION
RS 485
COMMUNICATION
To Next Page
