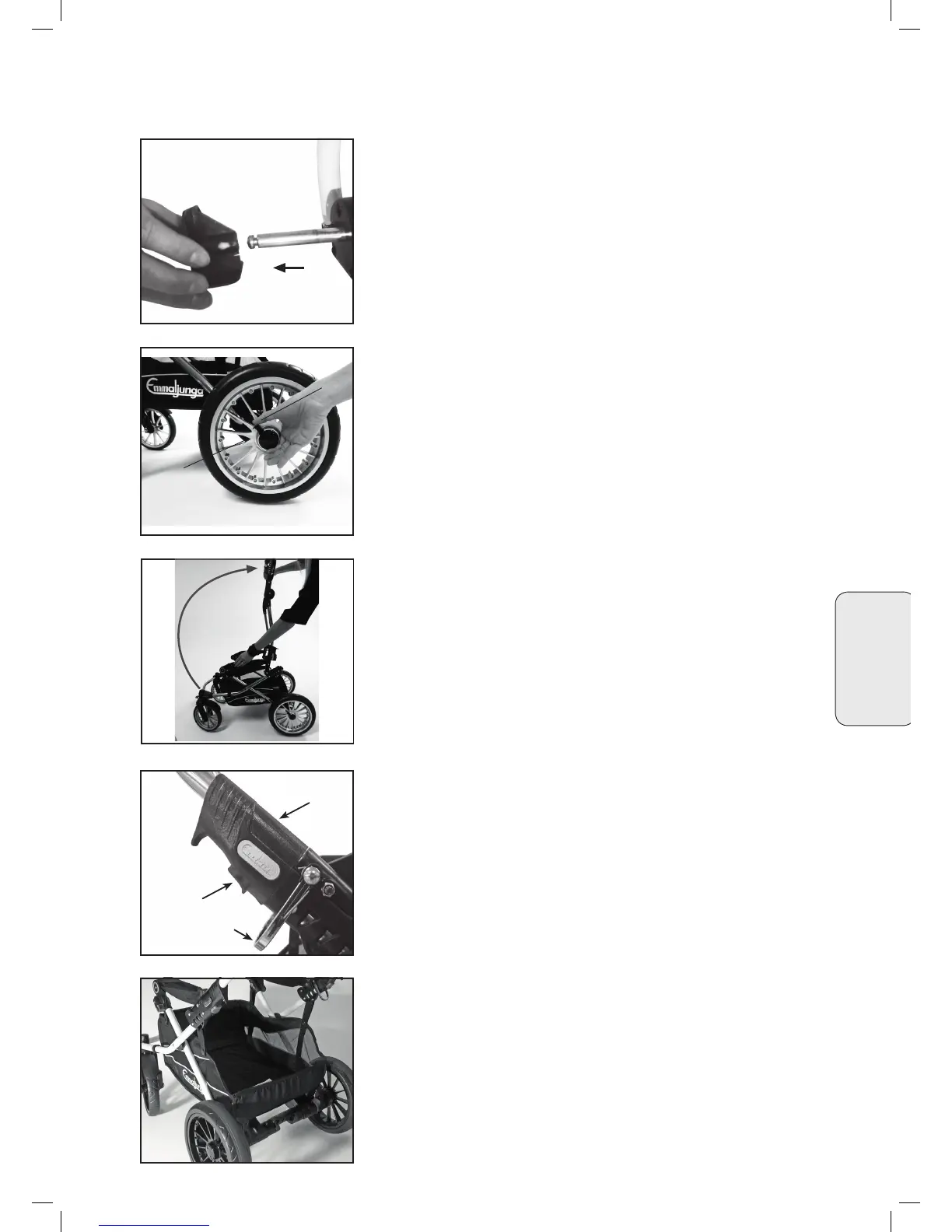

Assembly of Duo S Chassis
WARNING
Make sure children are clear of any moving parts if you adjust the
stroller, otherwise they may be injured.
WARNING
• Always make sure that the main locking device (3) and the button
(4) on both sides clicks into locked position .
• The safety catch (5) (secondary locking mechanism) is activated to
prevent unintentional folding if the chassis locks are not locked into
position.
• Make sure, before you use the pram that both chassis locks are in
locked position.
• Make sure the parking device is not engaged. Depress release
button (2) on wheel hub (1), slide the wheel all the way onto axle.
Release the button and pull wheel toward you until you hear a click.
WARNING
• Pull wheel hub towards you to be sure the wheel is securely
attached.
Repeat the procedure on each of the four wheels.
Attaching Wheels
• Remove plastic protectors from chassis axles.
Save for future use.
IMPORTANT
• Axles may be covered with axle grease, and can leave stains on
fabric.
WARNING
• Choking Hazard - Keep plastic protectors away from children.
WARNING
Make sure children are clear of any moving parts if you adjust the
stroller, otherwise they may be injured.
Unfolding the chassis
• Apply the brake on the pram.
• Raise the handle, while you are holding the side of the chassis,
until the chassis locks click into the locked position on both sides of
the pram.
WARNING
• The chassis locks need to click into the locked position.
• The safety catch (secondary locking mechanism) is activated to
prevent unintentional folding if the chassis lock is not locked into
position.
• Please make sure, before you use the pram that the chassis lock is
in the locked position.
• Attach the shopping tray to the chassis according to the included
instruction.
99
Duo Combi v 6.0
English
