015
Operation

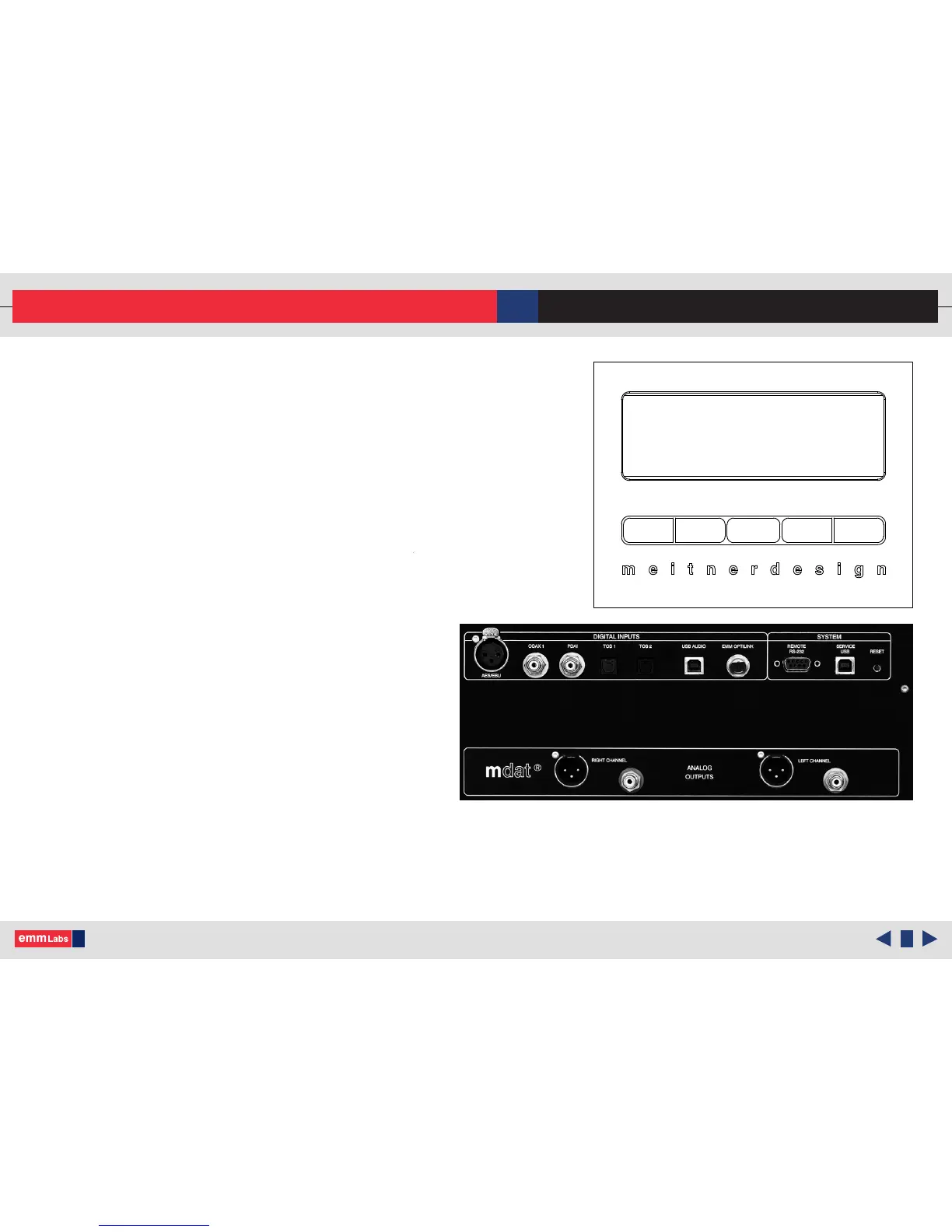

Basic Operations and Input Connections
e main screen shows the current input that is being used and sample rate. e
sample rate is shown when a valid digital audio stream is detected. If there is
nothing connected or there is no valid audio stream “NO LOCK” is displayed.
e DA2 has a host of digital inputs :
EMM Optilink (EMM) Proprietary ST glass optical connection to EMM Labs
CD/SACD transport and players like the TX2, TSDX
XDS1 V2, TSD1 and XDS1.
USB Audio (USB) USB Audio connection which supports up to
24bit 192kHz PCM, DXD 352 and 384kHz and
DSD64 and DSD128 (2xDSD) and uses USB 2.0 cables.
AES Balanced digital interface which
supports up to 24bit 192kHz and
uses XLR 110Ω digital cables.
COAX COAX SPDIF interface which
supports up to 24bit 192kHz and
uses RCA 75Ω digital cables.
PDAI Same as COAX SPDIF interface.
TOS1 TOSLINK optical interface which
supports up to 24bit 192kHz and
uses TOSLINK optical interface.
TOS2 Same as TOS1.
Connect the source digital outputs to the appropriate DA2 digital inputs and select the
appropriate input using the input toggle/scroll back (◄) or forward (►) buttons.
© 2015-2016 EMM Labs Inc., All Rights Reserved. EMM Labs reserves the right to amend specifications & design without notice.
DA2 AUDIO CONVERTER OWNER’S MANUAL
MUTE POLARITY MENU ◄ ►
USB DSD128
