EMOJO BOBCAT PRO - Explanatory Diagram of the Overall Ebike Configuration

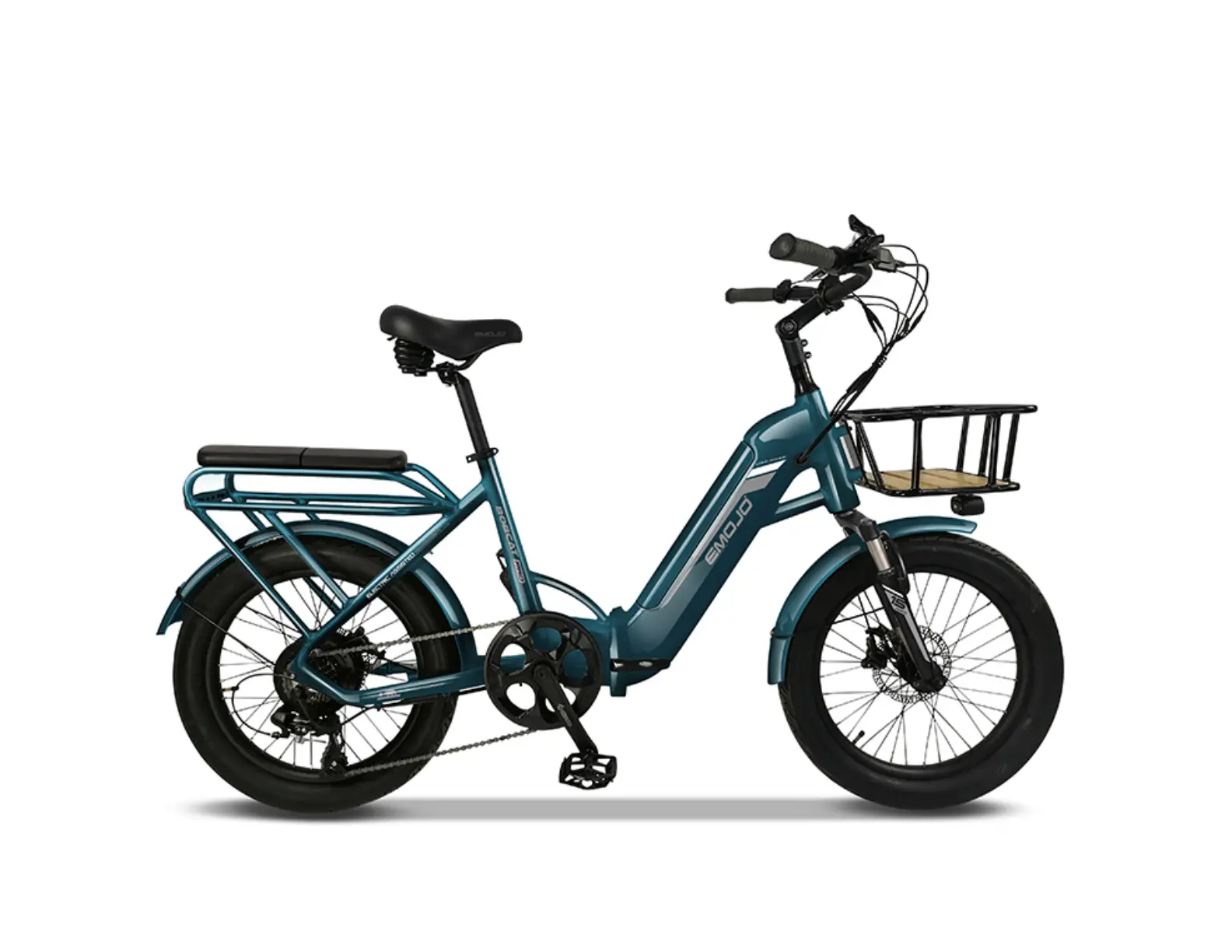

Explanatory diagram of the overall ebike configuration
Actual product may slightly differ from this picture
Seat
Passenger
seat
Transmission chain
Front
suspension
Seat post
Seat post quick release
lever
3
QQuick connectors
Rear disc
brake
Front disc brake
Pedal
Front cargo
basket. 30Lbs.
payload
Handlebar
angle
andjadjustment
mechanism
Front fender
Front lights
Rear fender
Tail light
Front brake caliper
Electric motor
Motor quick connector
Mechanical
gears shifter
Battery
Folding hinge
Folding
release lever/
lock
