Please, ensure that, once the gas cooktop is installed, it is easily accessible for the engineer in the
event of a breakdown.
WHEN THE GAS COOKTOP IS FIRST INSTALLED
Once the gas cooktop has been installed, it is important to remove any protective materials, which were
put on in the factory.
Any gas installation must be carried out by a competent person.
Important: When installing the gas cooktop above a built-in oven, the oven should be placed on two
wooden strips; in the case of a joining cabinet surface, remember to leave a space of at least 1.77” x
22.05” at the back.
When installing on a built-in oven without forced ventilation, ensure that there are air inlets and outlets
for ventilating the interior of the cabinet adequately.

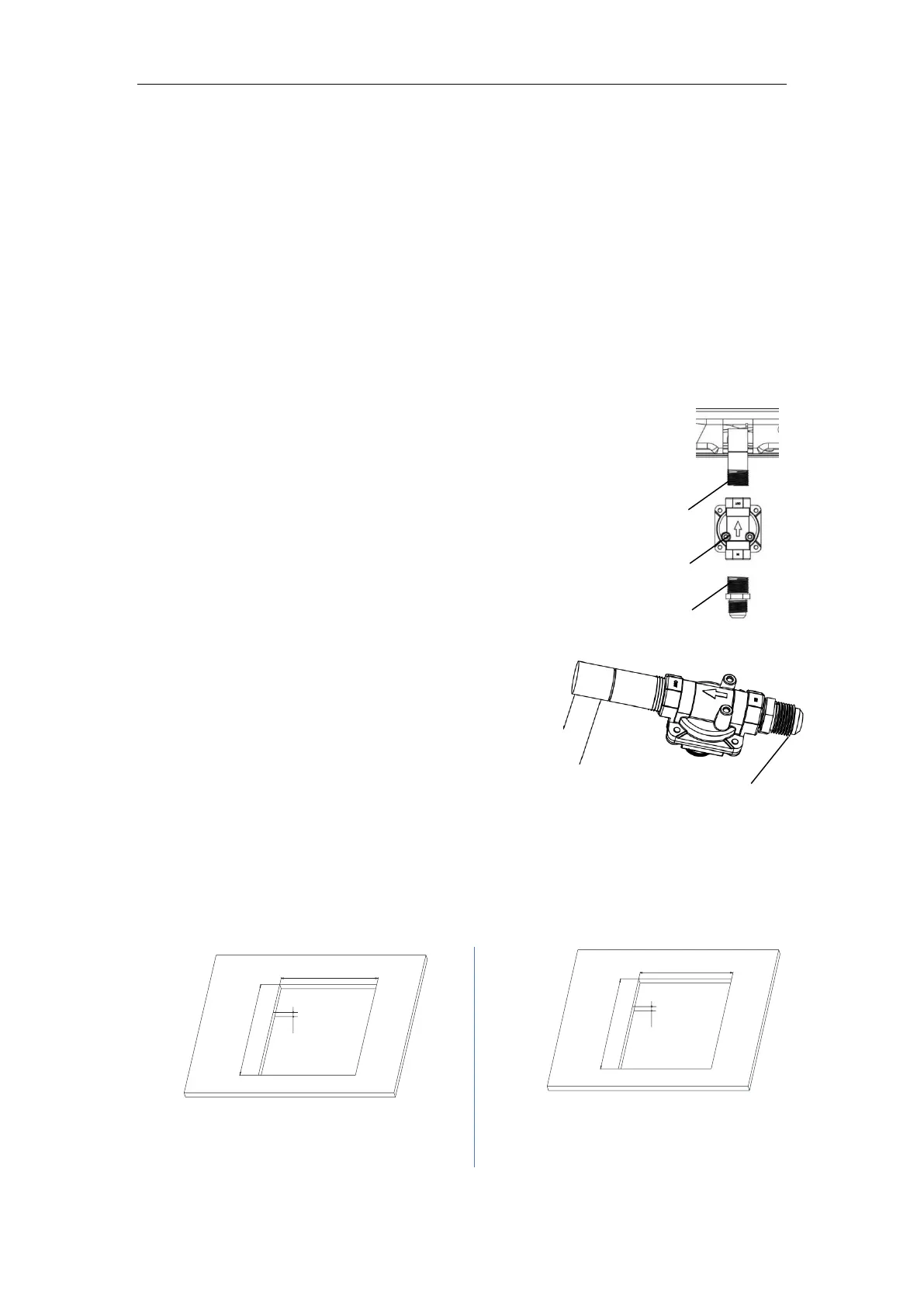

Pressure Regulator Installation
A: Cooktop air pipe joint
B: Pressure Regulator
C: Gas fitting
First, make sure that the pressure regulator arrow points toward the cooktop air pipe joint,
and then fasten the pressure regulator to the cooktop air pipe.
Then install the gas fitting on the other side of the pressure regulator.
(See Figure 16) Figure 16
Gas Connection and check
D: End of fitting with 1/2 BSP male thread(See Figure 17)
Figure 17
The cooktop valve is in the closed state, open the air supply valve, coated the connector with moderate
amounts of soapy water, if there is air bubbles that it means there is leakage, tighten the connector and
test again. If repeat 3 to 4 times and there is still air bubbles, notify professionals to deal with it.
Cut Out dimensions
The dimensions of the cut-out are given in the diagram. (Dimensions are given in inch.)
Figure 18 Figure 19
