15
MAKE ELECTRICAL CONNECTION
D. 3-wire flexible conduit from oven
E. Junction box
F. White wires (No need connect)
G. UL listed wire connectors
H. Green (or bare) ground wires
I. UL listed or CSA approved conduit connector
1. Connect the 2 black wires (B) together using a UL listed wire connector.
2. Connect red wire (C) together using a UL listed wire connector.
3. No need connect (F) with any wire, just with UL list wire connector.
4. Connect the green (or bare) ground wire (H) from the oven cable to the green (or bare) ground
wire (in the junction box) using a UL listed wire connector.
5. Install junction box cover.

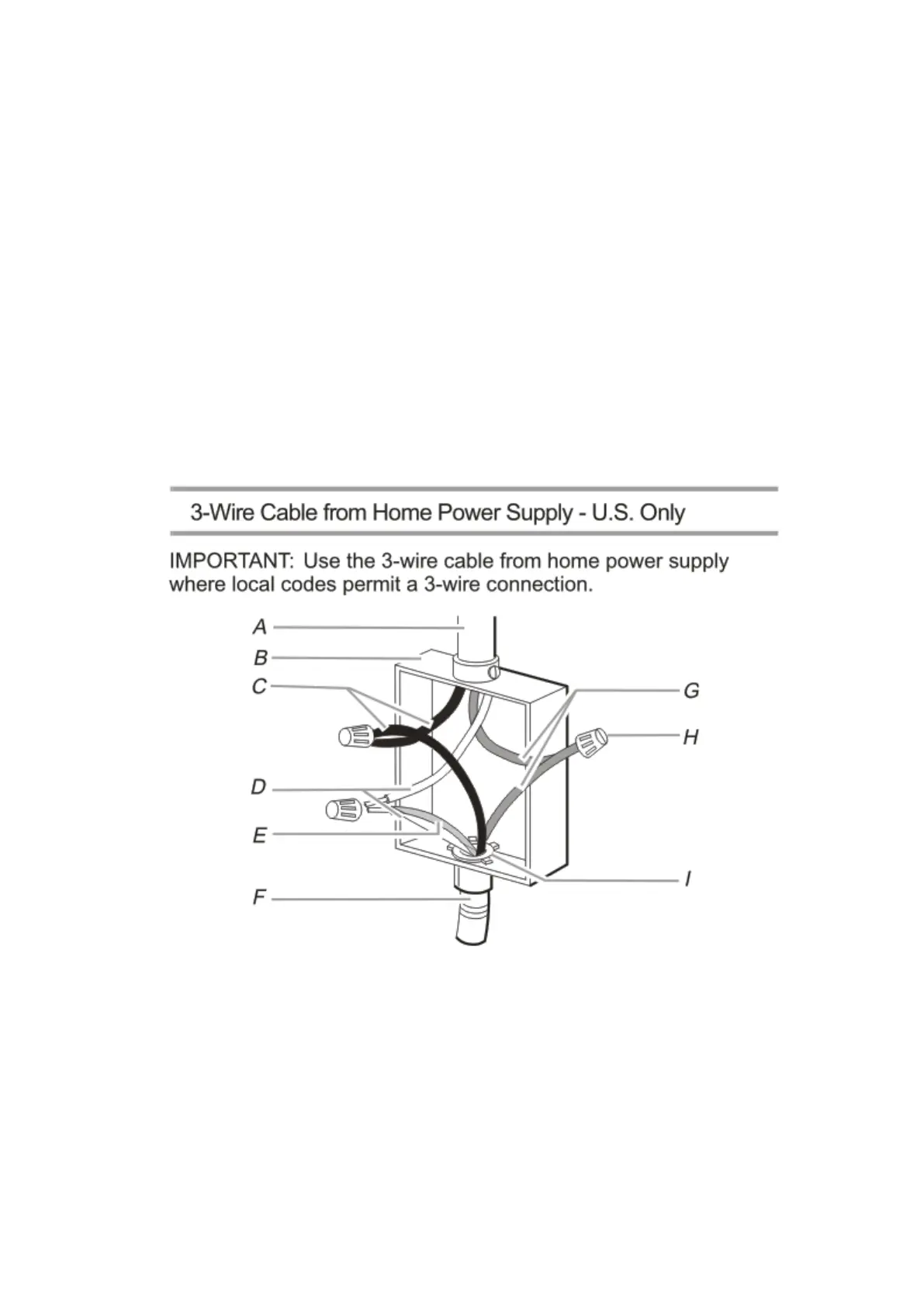

A. Cable from home power supply
B. Junction box
C. Black wires
D. White wire from home
E. Green(or bare) ground wire (from oven)
F. 3-wire flexible conduit from oven
G. Red wire
H. UL list wire connectors
I. UL listed or CSA approved conduit connector
