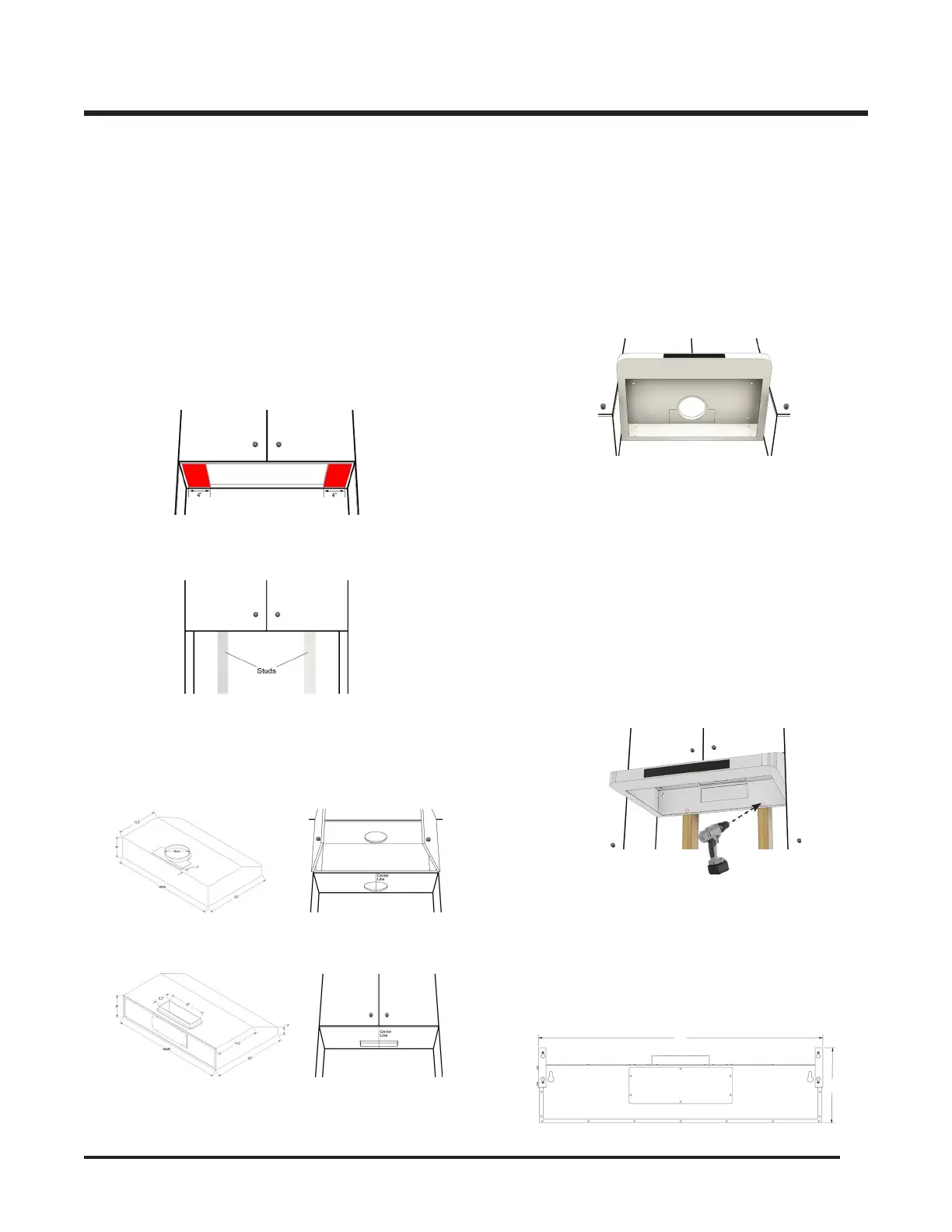

Attach wood filler strips
INSTALLATION
This range hood series can be:
•
Installedunderthe cabinet.
•
Installed on the wall without a cabinet.
1a. Installing the Range Hood Under the
Cabinet
•
Forinstalling under the cabinet with recessed
bottom, attach a 4" wide wood filler strip (not
provided) on each side.
•
Use a stud finder to locate and mark2 studs inside
•
Make 2 cutouts on the top and bottom of the
cabinet that align with the outlet of the top vent
on the Hood. The diameter of the cutout should be
slightly larger than the diameter of the duct.
* For Round Vent Out Only
* For Rectangular Vent Out Only
The following steps require 2 or more people:
•
Draw the power cord through the bottom
cutout and align the range hood beneath the
cabinet so that the exhaust on the Hood and
the cutout are in line.
•
Raise and screw the top of the Hood to the
bottom of the cabinet through the knockout
holes shown below:
•
Tighten all screws until the range hood is
securely mounted to the bottom of the cabinet.
Make sure the range hood is securely mounted
before releasing.
•
For a more secure installation, install additional
screws into the pre-drilled holes on the
backplate of the range hood to secure it to the
studs or lumbers. If the pre-drilled holes don't
align with the studs or lumbers, drill new holes
on the backplateinstead.
1b. Installing the Range Hood on the Wall
without a Cabinet
•
Remove the Baffle Filters from the Hood.
•
Temporarily install the Mounting Bracketto the
•
Takemeasurements of "A"and "B" as shown below.
To Next Page
