LIN ANG
Enter the line angle.
LIN ANG
Line-Hole Function: Continued…

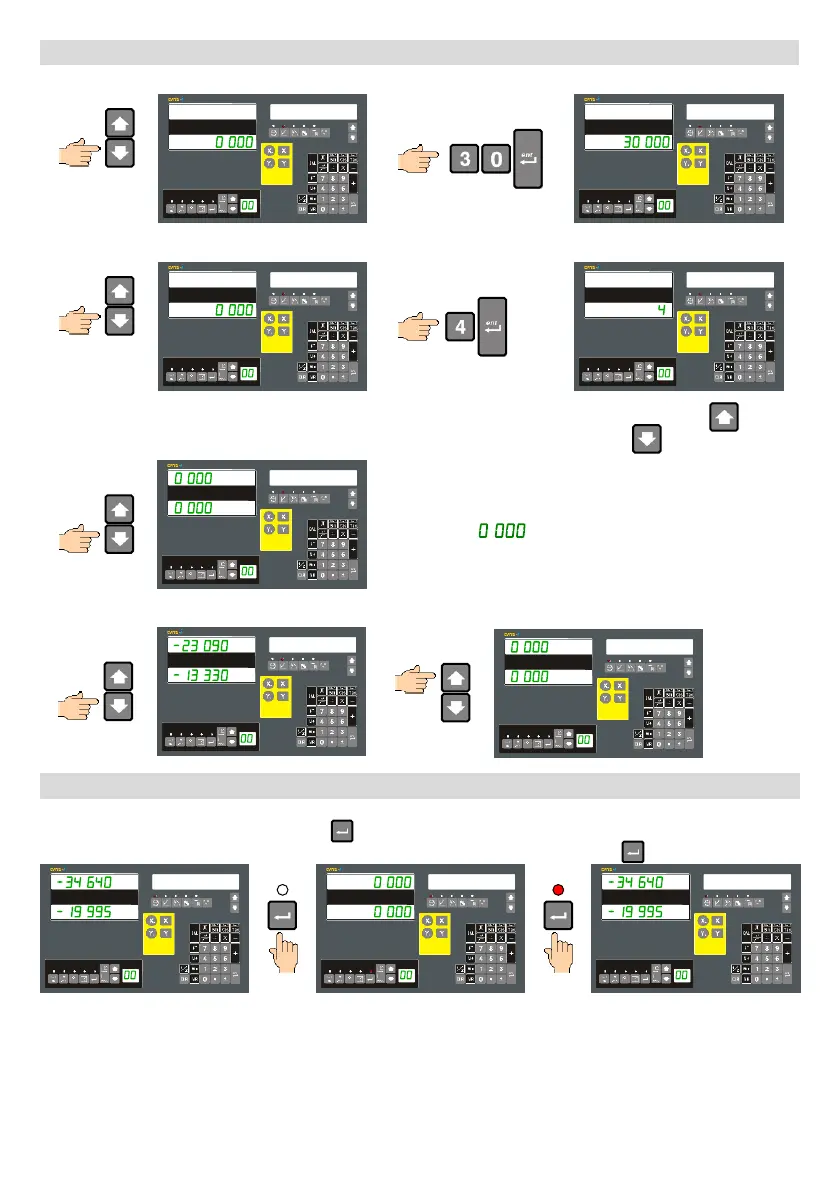

Use the Message
Navigation keys
NO. HOLE
Enter the line number of holes.
NO. HOLE
Once all the parameters have been entered you can check them by going back through them using the
navigation key . Alternatively you can also start using the PCD immediately by pressing the key once more.
HOLE 1
The message window will show the current selected Hole
number and the X and Y-axis will show the offset to the
centre of that hole. By moving the axes until they are
both showing . you will now be at the calculated
hole centre.
Navigate between holes using the Message navigation keys.
HOLE 2
HOLE 1
Check ABS position whilst in the Line-Hole Function
If at any time whilst in the Line-Hole function you would like to check the standard ABS position, relative to the
workpiece datum this can be done using the key. The Line-Hole function is still active in the background. Once
you have checked the positions re-enter the function offset display by again pressing the key.
HOLE 1
HOLE 1
HOLE 1
- 24 -
