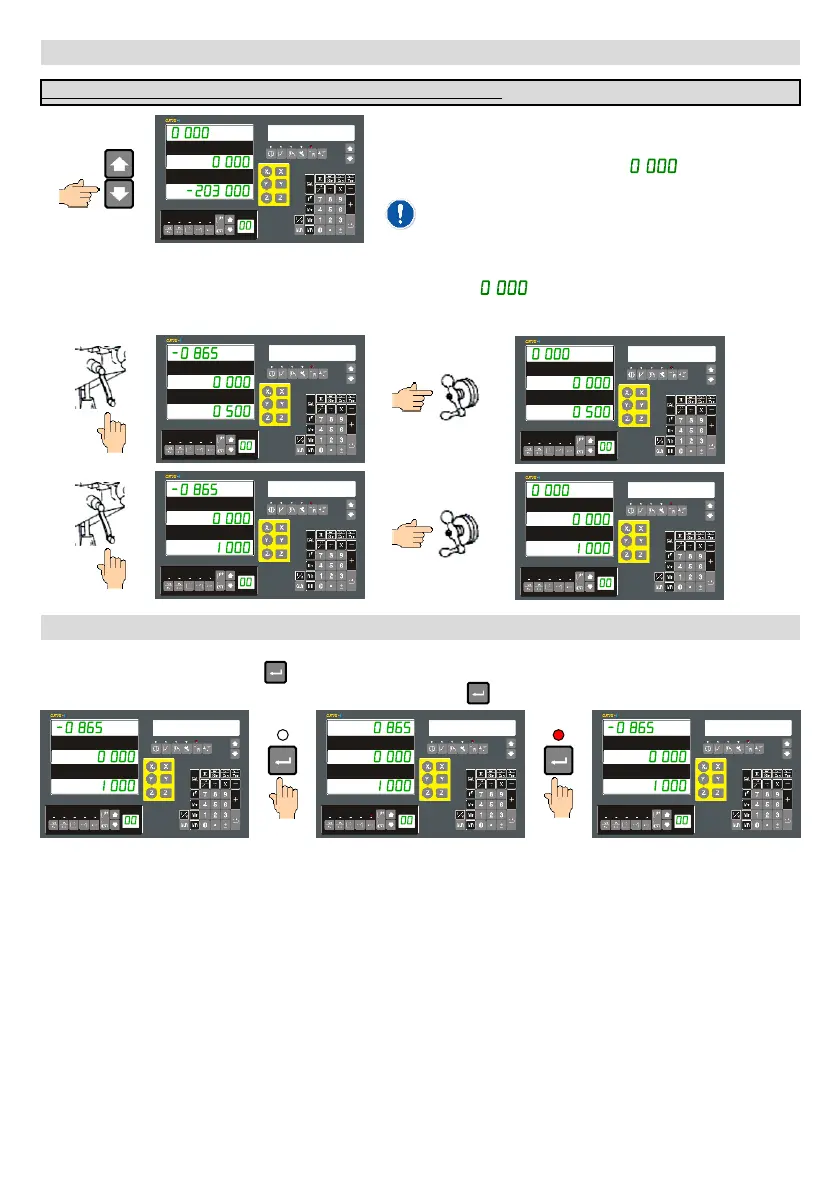

Enhanced Radius Function (Auto-R): Continued…
The following is the operating mode on XZ & ZY Plane on 3-axes DRO.
The message window will show the current plane of
operation and the X-axis display is left aligned to indicate
that it is operating in a special mode. .
AUTO XZ
.
.
.
Move the Z-axis by the programmed Max-Cut value. This will cause the X-axis display to also change. When the Y-
axis move is complete, then move the X-axis until the X-axis shows . . This process can be repeated until the
inclined machining operation is completed.
AUTO XZ
.
.
.
AUTO XZ
.
.
.
AUTO XZ
.
.
.
AUTO XZ
.
.
.
If the message window displays “Z OU LI” it means that the Z-
axis is outside of the line of the calculated ARC.
AUTO XZ
.
.
.
AUTO XZ
.
.
.
AUTO XZ
.
.
.
Check ABS position whilst performing R-Function Machining (ALL DRO)
If at any time whilst in the R-Function you would like to check the standard ABS position, relative to the workpiece
datum, this can be done using the key. The function remains active in the background. Once you have checked
the positions re-enter the R-Function mode by again pressing the key.
- 37 -
