EMS 5000 FIREPOINT

1. Introduction

This manual describes the installation and programming requirements for a radio

network system and should be used in conjunction with the 5000 FirePoint control panel

manuals.

Radio LAN Modules are used for radio networking EMS system control panels together.

The Radio LAN Module is hardwired to it’s allocated control panel via a 2 core screened

fireproof cable. This then enables communication between control panels via radio

therefore the need to cable between panels is eliminated.

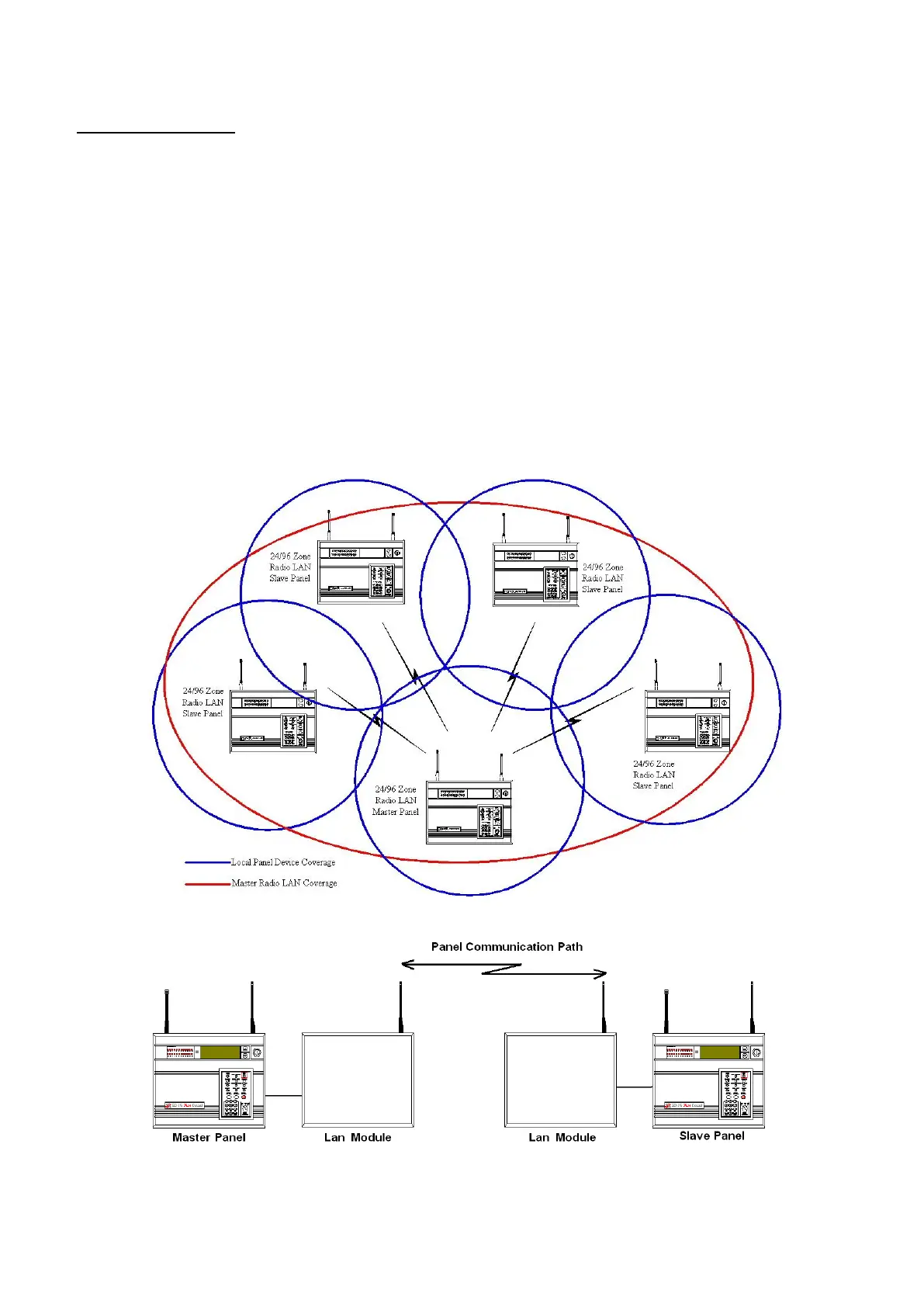

See Figure 1 and 2 for an overview.

The Model 53-5438 is a Radio LAN unit that transmits and receives UHF signals between

other Radio LAN units on site.

Having received the UHF signals the commands are passed to the connected panel via

the RS485 bus, thus enabling site wide Radio Network Communications.

Figure 1

Figure 2
