5. Factory Supplied Pre-Programmed Systems
For a factory set pre-programmed system, there will only be a few steps necessary to
online the network path.
The installation should be complete with all necessary connections made as shown in
diagram number PO3265.
Once the connections have been made, power should be applied to the LAN units and
control panels.
On powering up the master panel, the system will automatically be online.
With all the LAN Units and Control Panels powered the master panel will automatically
try to re-online the pre-programmed slave panels. This can take up to 5 minutes to
complete. With control panels offline an ‘OL’ fault will be displayed at the master panel.
This fault will automatically clear when all panels are online.
6. Should a LAN unit go offline on the 485 BUS

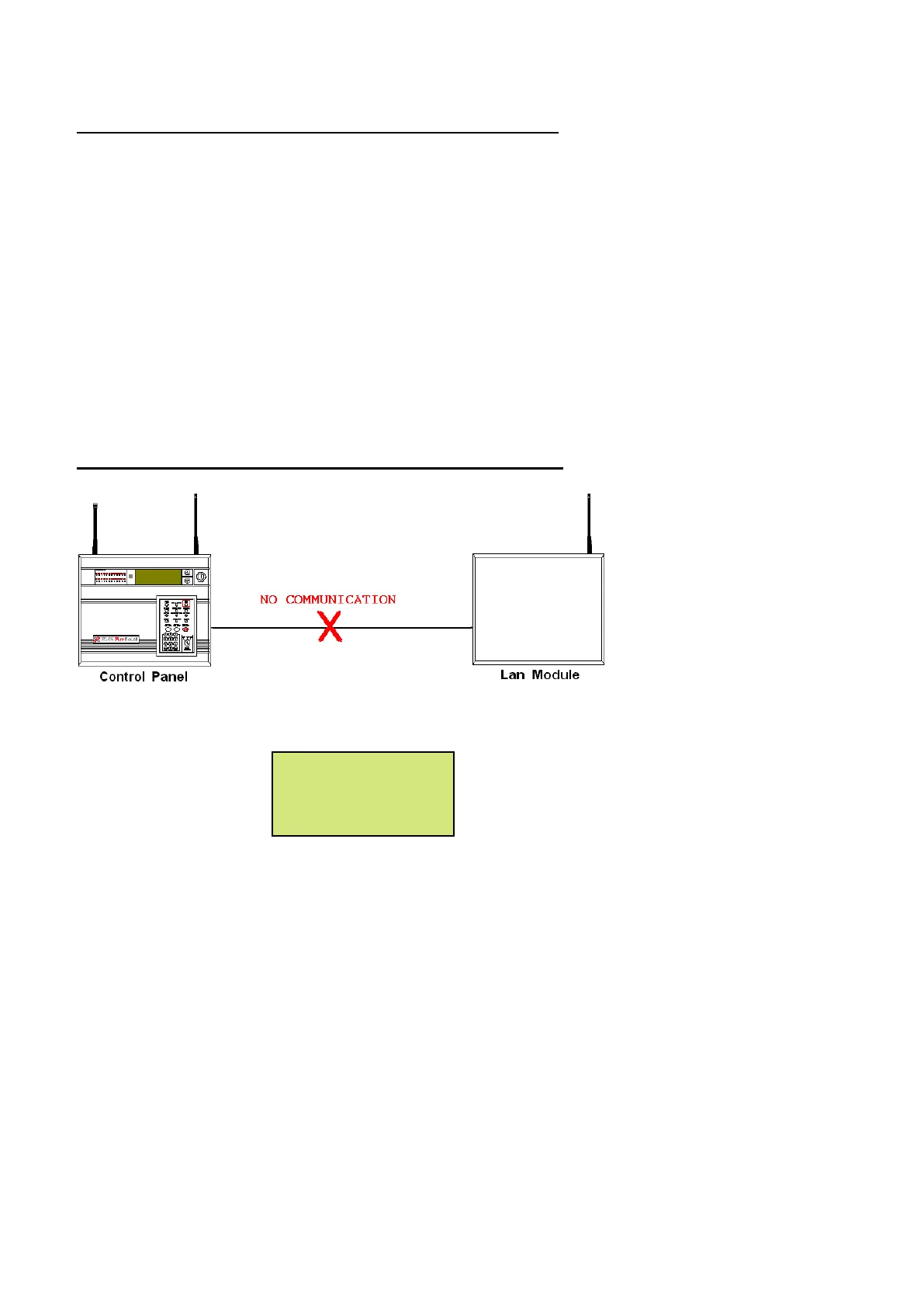

The following type of fault screen should be displayed:
On the offline panel, turn the control key switch to the “ON” position.
Press the “0” key and scroll down to “Engineers Config”.
Press the “YES” key, enter 221100 then press the “YES” key.
Scroll down to ”Reset System” and press the “YES” key followed by the “0” key.
Scroll down to “Serial Comms” and press the “YES” key.
Scroll down to “Re-start bus and press the “YES” key.
01 FAULT TOT 01
H/W BUS Node Offline
Node : 04 ON H/W BUS
To Next Page
