Emtek Classic - Install Outside Trim Plate Assembly; Install Inside Chassis

5

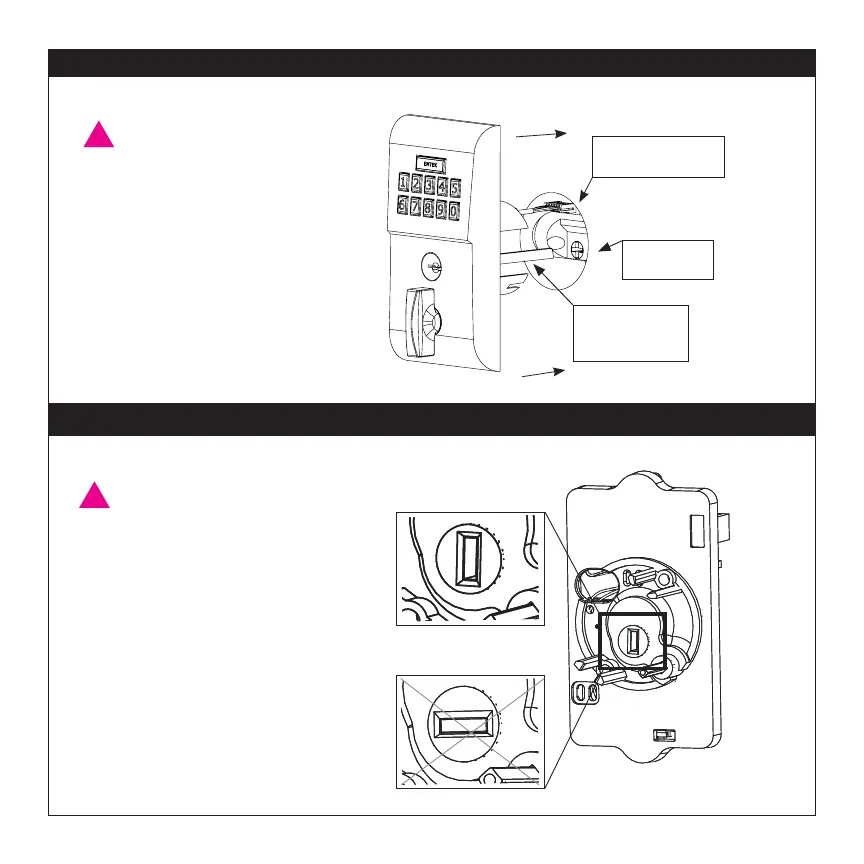

3. Install Outside Trim Plate Assembly
4. Install Inside Chassis
Position the Outside Trim Plate Assembly through the bore hole.
!
ONCE POSITIONED,
OUTSIDE TRIM PLATE
ASSEMBLY REQUIRES
SUPPORT.
HOLE FOR FLAT
SHAFT MUST BE IN
VERTICAL POSITION
FOR INSTALLATION.
!
Step 1: Conrm the position of Flat Shaft.
√ Correct for Installation.
X Incorrect for Installation.
Fit Flat Shaft
through latch.
Flat Shaft must be
in vertical position
for installation.
Feed wire harness
through the bore hole.
