Emtek Classic - How to Install; Install Latch; Remove Screws from Inside Trim Plate

4

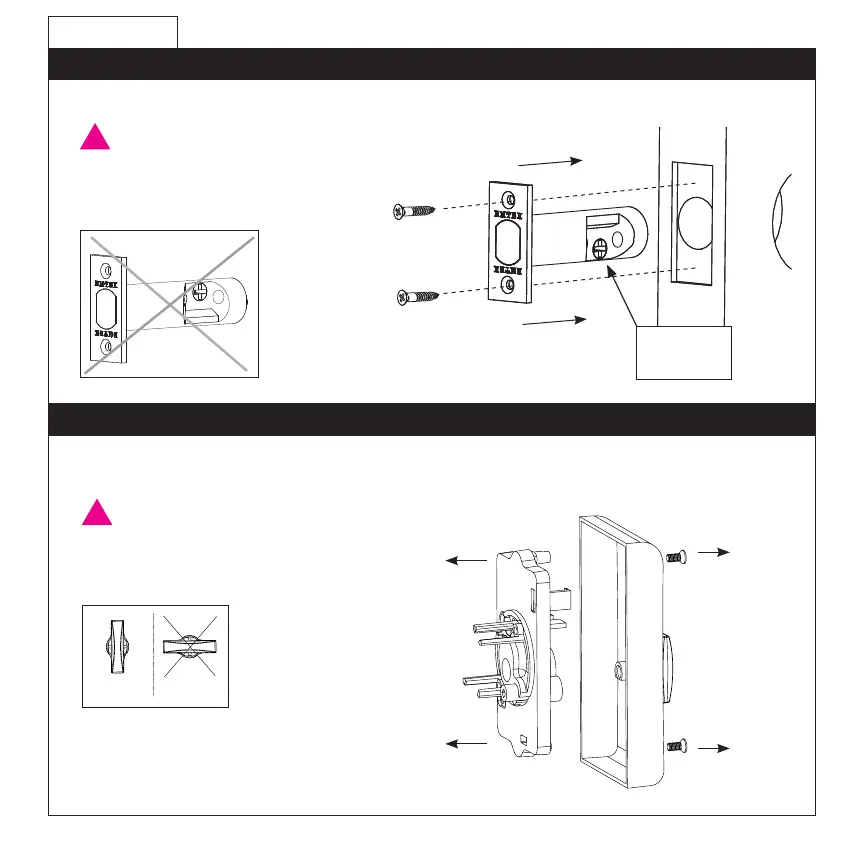

Fasten Latch using two #8 x ¾” Wood Screws (item #6).
2. Remove Screws from Inside Trim Plate
1. Install Latch
How to Install
!
REMOVE INSIDE CHASSIS FROM TRIM PLATE
BEFORE INSTALLING THE OUTSIDE TRIM.
THUMBTURN MUST BE IN UNLOCKED POSITION.
Unlocked Locked
THE LATCH ASSEMBLY MUST BE ORIENTED
AS SHOWN AND THE BOLT MUST BE IN THE
RETRACTED POSITION FOR INSTALLATION.
!
Use a Phillips head screwdriver to remove screws (item #4c) shown below and detach Inside Trim
Plate from the Inside Chassis.
Crosshairs
at bottom.
screws
(item #4c)
