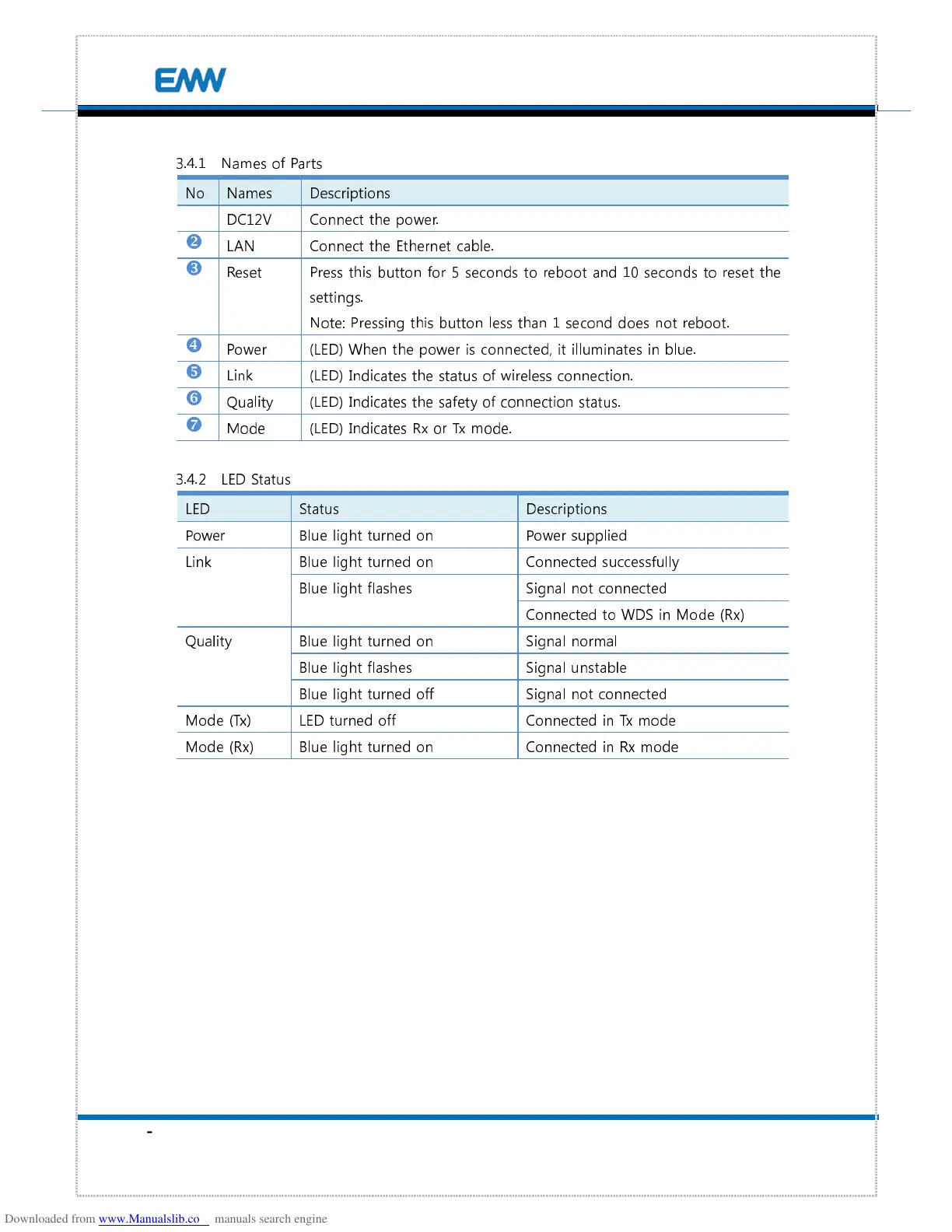

EMW EVB-A100 - Page 11

- 11 -
EMW Co., Ltd.
EVB
-
A100
User
Manual
3.4.1 Names of Parts
No Names Descriptions

DC12V Connect the power.

LAN Connect the Ethernet cable.

Reset Press this button for 5 seconds to reboot and 10 seconds to reset the
settings.
Note: Pressing this button less than 1 second does not reboot.

Power (LED) When the power is connected, it illuminates in blue.

Link (LED) Indicates the status of wireless connection.

Quality (LED) Indicates the safety of connection status.

Mode (LED) Indicates Rx or Tx mode.
3.4.2 LED Status
LED Status Descriptions
Power Blue light turned on Power supplied
Link Blue light turned on Connected successfully
Blue light flashes Signal not connected
Connected to WDS in Mode (Rx)
Quality Blue light turned on Signal normal
Blue light flashes Signal unstable
Blue light turned off Signal not connected
Mode (Tx) LED turned off Connected in Tx mode
Mode (Rx) Blue light turned on Connected in Rx mode
