5.5 Status – Wireless

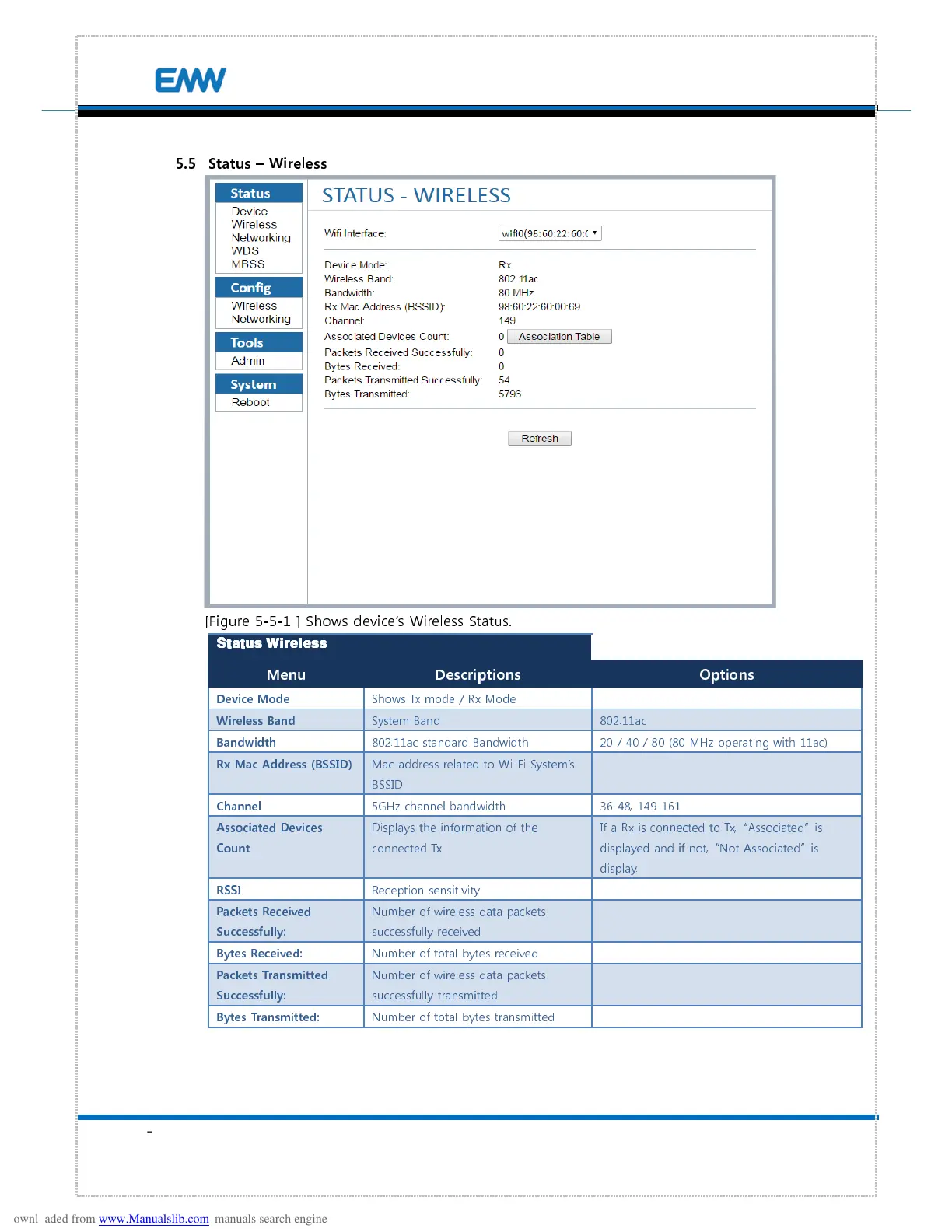

[Figure 5-5-1 ] Shows device’s Wireless Status.
Status Wireless
Status WirelessStatus Wireless
Status Wireless
Menu Descriptions Options
Device Mode Shows Tx mode / Rx Mode
Wireless Band System Band 802.11ac
Bandwidth 802.11ac standard Bandwidth 20 / 40 / 80 (80 MHz operating with 11ac)
Rx Mac Address (BSSID)
Mac address related to Wi-Fi System’s
BSSID
Channel 5GHz channel bandwidth 36-48, 149-161
Associated Devices
Count
Displays the information of the
connected Tx
If a Rx is connected to Tx, “Associated” is
displayed and if not, “Not Associated” is
display.
RSSI Reception sensitivity
Packets Received
Successfully:
Number of wireless data packets
successfully received
Bytes Received: Number of total bytes received
Packets Transmitted
Successfully:
Number of wireless data packets
successfully transmitted
Bytes Transmitted: Number of total bytes transmitted
