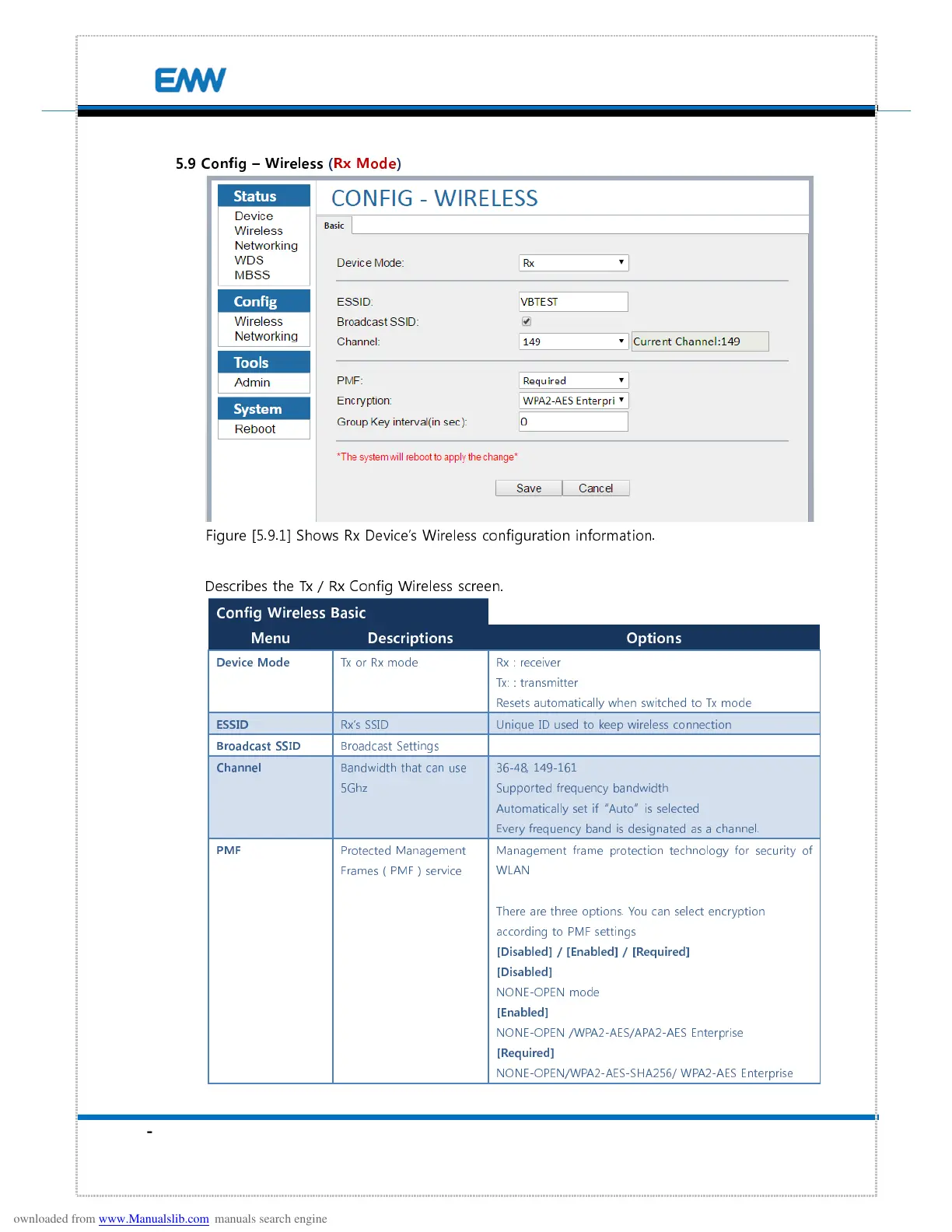

5.9 Config – Wireless (Rx Mode)
Figure [5.9.1] Shows Rx Device’s Wireless configuration information.
Describes the Tx / Rx Config Wireless screen.
Config Wireless Basic
Menu Descriptions Options
Device Mode
Tx or Rx mode Rx : receiver
Tx: : transmitter
Resets automatically when switched to Tx mode
ESSID
Rx’s SSID Unique ID used to keep wireless connection
Broadcast SSID
Broadcast Settings
Channel
Bandwidth that can use
5Ghz
36-48, 149-161
Supported frequency bandwidth
Automatically set if “Auto” is selected
Every frequency band is designated as a channel.
PMF
Protected Management
Frames ( PMF ) service
Management frame protection technology for security of
WLAN
There are three options. You can select encryption
according to PMF settings
[Disabled] / [Enabled] / [Required]
[Disabled]
NONE-OPEN mode
[Enabled]
NONE-OPEN /WPA2-AES/APA2-AES Enterprise
[Required]
NONE-OPEN/WPA2-AES-SHA256/ WPA2-AES Enterprise
