WEL-200™ Operating Instructions 4
Document no. 10320104 Revision 2.0 3-1-18

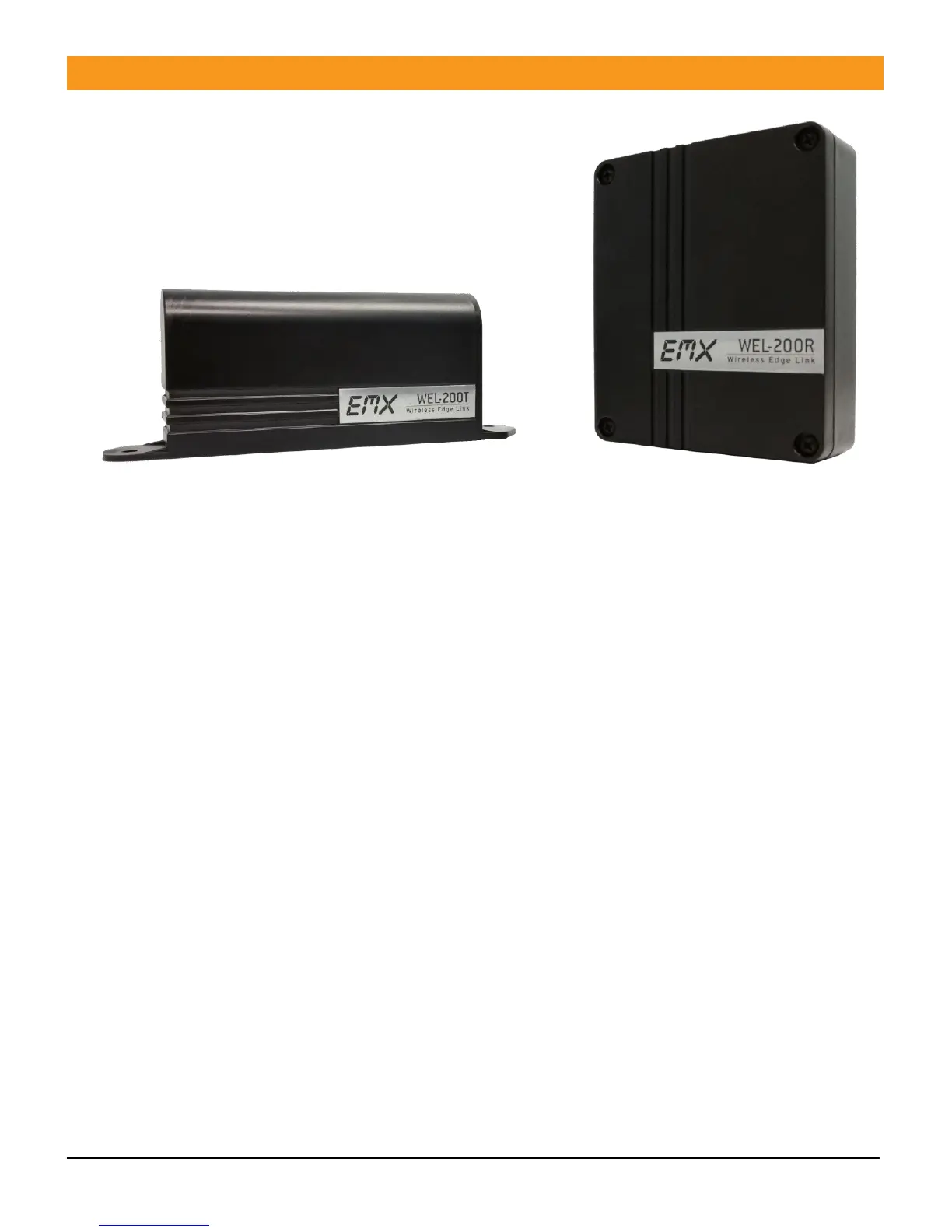

Figure 1 - WEL-200T (transmitter)
Figure 2 - WEL-200R (receiver)
The EMX WEL-200 system provides a complete wireless solution for interfacing sensing
edges with gate and door operators, while ensuring compliance with 2018 UL325
monitoring standards. Each transmitter can run for up to two years on two AA lithium
batteries. The receiver connects with up to four transmitters, with separate relay and
pulse outputs for open and close edge functionality.
With enhanced diagnostic features, the WEL-200R will make installation and
maintenance easy and reliable. Feedback is provided for all fault modes, including
edge open and short conditions, low battery, and failed transmitters.
