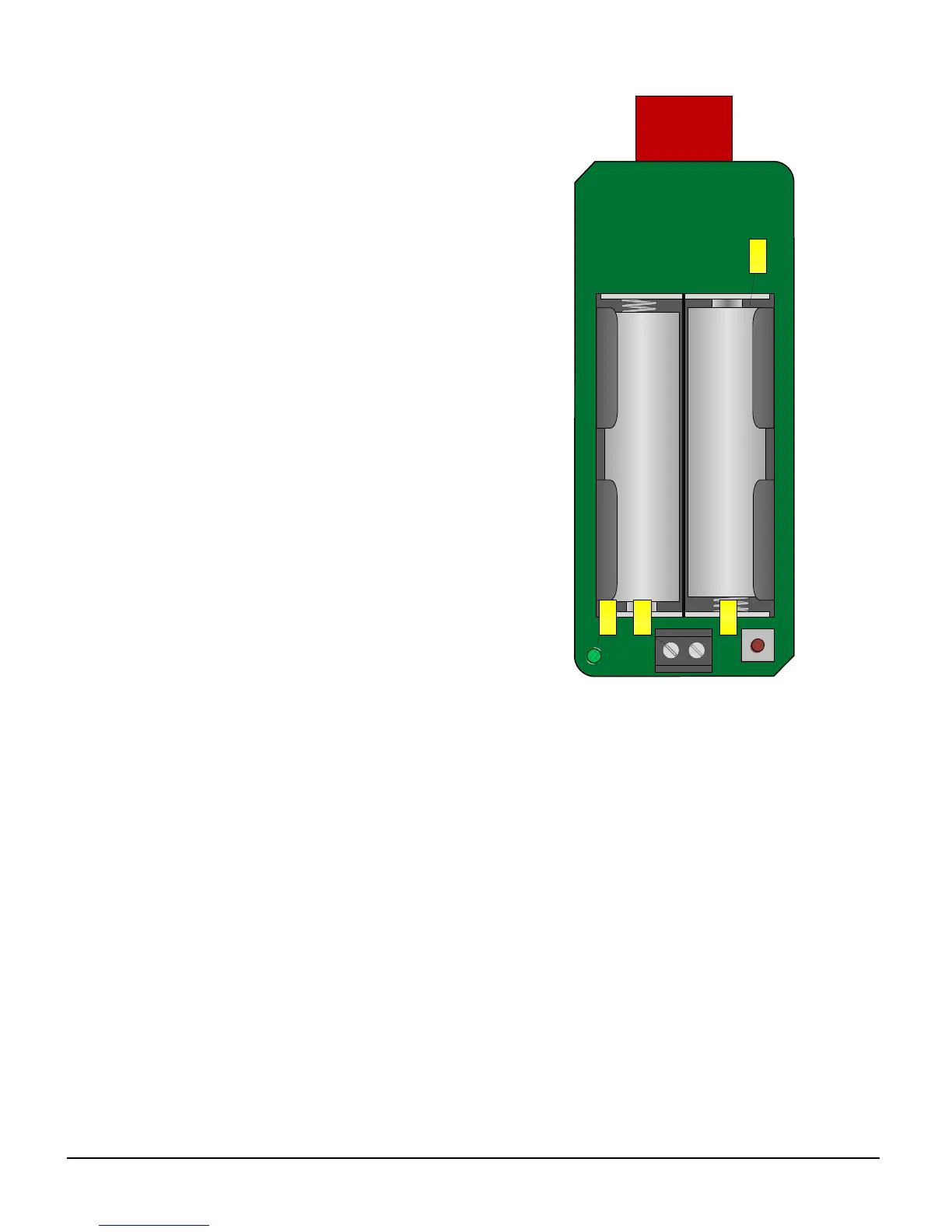

1. Batteries
- Use two AA lithium batteries, 1.5V (ANSI
15-LF, IEC-FR14505 (FR6)) for the best
performance and longest life. Observe
polarity indication on the battery holder.
2. Transmitter status LED
- Blinks twice every two seconds if not
connected, once if connected
- Blinks once every second when edge is
activated
3. Terminal block
- Interface for safety edge
4. Connection switch
- Connects/disconnects transmitter from
receiver
