30015 PIN
30011
TRIGGER
30021
PIN, BLADE
30004
PISTON
30005
SPRING
20011
SCREW
300___
(GREEN)
380___
(BLACK)
20021
NUT
30040
SPRING
20038
SHCS
30012
SIDE PLATE R. H.
20012
NUT
30022
FRONT
PLATE
30023
SHOULDER SCREW
20004
O-RING
20036
C-CLIP
30006
GROOVED PIN
30002
HOUSING
(GREEN)
38002
HOUSING
(BLACK)
20010
PIN
30010
LEVER
30009
SLEEVE
20007
O-RING
30008
VALVE
30007
SPRING
20006
O-RING
20005
O-RING
30051
PUSHER “A”
20034
SCREW
30029
PUSHER
PULL
30017
YOKE
30020
PIN, ROLLER
20018
PIN
30019
LINK
30018
ROLLER
20009 PIN
20008
BHCS
30016 SPRING
30014 TOP PLATE
30013
SIDE PLATE L. H.
30000
VALVE
20003
O-RING
20000
O-RING
20001
O-RING
20019
PLUG
20035
PLUG (RED)
20011
SCREW
30001
CAP
BLADE
GUIDE
BLADE
HOUSING
ANVIL
PUSHER
MAGAZINE
Standard Models
30041
PIN
20037
E-CLIP
Thin “T” Models
20037
E-CLIP
Standard
Thin “T”

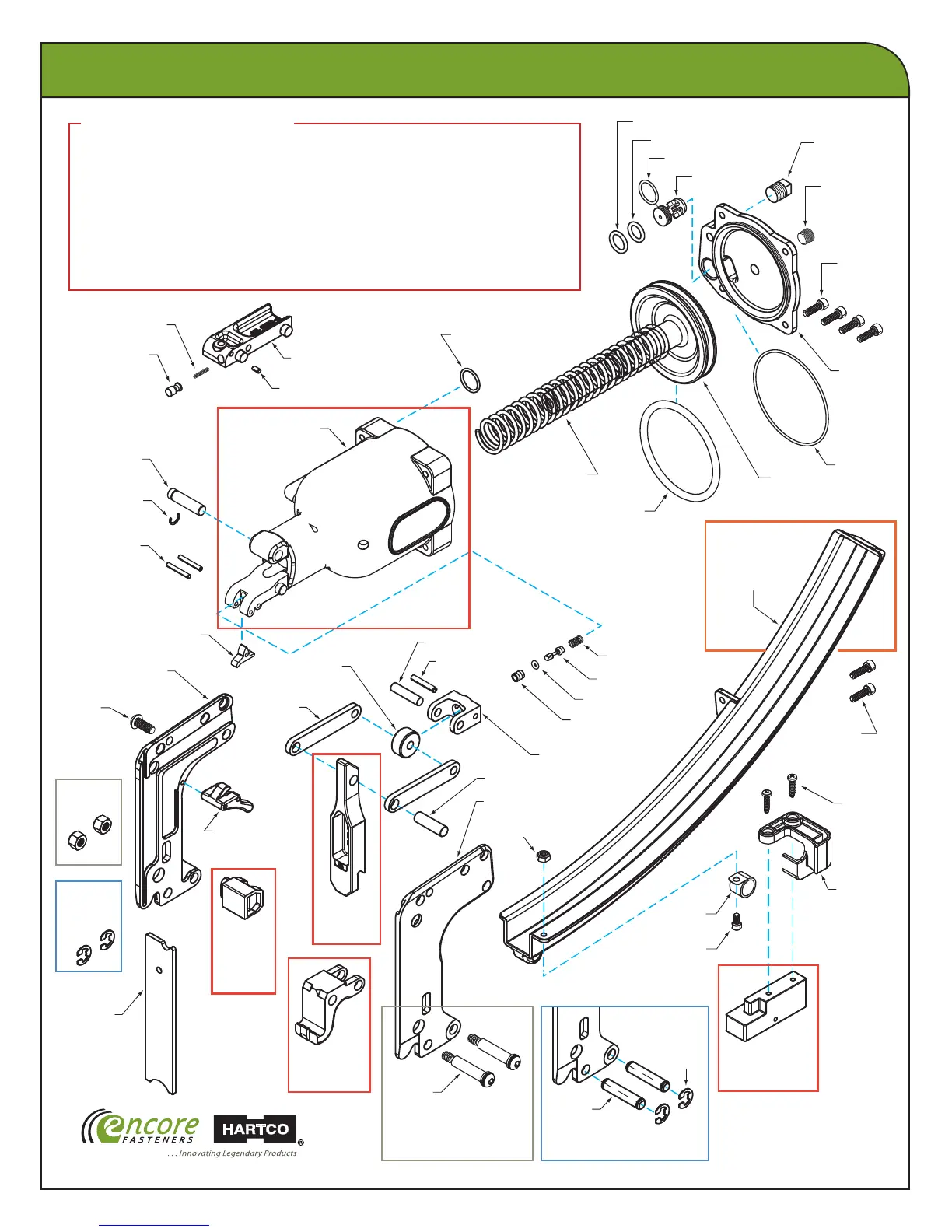

Encore Eclipser / Hartco “E” Clincher – 2000 Series
SAFETY INFORMATION
1. SAFETY GLASSES should always be
worn while operating, maintaining
or repairing a tool.
2. KEEP HANDS AND FINGERS AWAY
from the blade and anvil area
when operating the tool or when
connecting the air supply to the tool.
3. DISCONNECT THE AIR SUPPLY
when mechanically clearing a jam,
performing maintenance or repairs,
and whenever the tool is not in use.
4. INJURY PREVENTION—Never point
the tool toward yourself or anyone
else.
302___
302___
302___
300___
v. 08-11-16
www.encorehartco.com
