TROUBLE SHOOTING
SAFETY CAUSE SOLUTION
Blade does not Sticky main valve Lubricate main valve and check
return that main valve piston moves
Loose screw in housing cap Tighten all 4 screws in cap
Sluggish tool Dry main valve Lubricate main valve
Clips not feeding Obstruction in magazine Remove obstruction
Broken pusher spring Replace pusher spring
Loose clips Low air pressure Increase pressure to 80 psi
Worn blade or anvil Replace blade or anvil
Clip jamming Clips are loaded backward Reorient strip so that single ear into
the magazine on clip is loaded forward
Tool not cycling Clogged trigger valve Clean trigger valve assembly
SPECIFICATIONS
WEIGHT: 4.4 lbs (2.0 kg)
DIMENSIONS: 16.5” x 7” x 4” (419.1 x 177.8 x 101.6mm)
COMPONENT MATERIALS: Composite plastic housing and clip magazine
CLIP FEEDING METHOD: Constant force spring
PRIMARY POWER UNIT: Main cylinder - Bore 3.06” (78mm) spring return
AIR SUPPLY: 80-90 psi (5.5-6.2 bars) of dry, lubricated air
AIR CONSUMPTION (SCFM): 3.56, assuming 90 psi and 1 cycle per second
3.22, assuming 80 psi and 1 cycle per second
2000 Series UNIVERSAL PARTS
20000 O-Ring 1
20001 O-Ring 1
20003 O-Ring 1
20004 O-Ring 1
20005 O-Ring 1
20006 O-Ring 1
20007 O-Ring 1
20008 Button Head Cap Screw 1
20009 Dowel Pin 1
20010 Dowel Pin 2
20011 Socket Head Cap Screw 6
20012 Nut* 2
20018 Dowel Pin 1
20019 Plug 1
20021 Nut 1
20034 Screw 2
20036 C-Clip 1
20035 Plug (Red) 1
20037 E-Clip* 4
20038 SHCS 1
30000 Valve 1
30001 Cap 1
30002 Housing, GREEN Encore
1
38002 Housing, BLACK Hartco
30004 Piston Assy. 1
30005 Compression Spring 1
30006 Grooved Pin 1
30007 Spring 1
30008 Trigger Valve 1
30009 Valve Sleeve 1
30010 Trigger Lever 1
30011 Trigger Assy. 1
30012 Side Plate, Right Hand 1
30013 Side Plate, Left Hand 1
30014 Top Plate 1
30015 Pin 1
30016 Spring, Top Plate Pin 1
30017 Yoke 1
30018 Roller 1
30019 Link 2
30020 Pin, Roller 1
30021 Pin, Blade 1
30022 Front Plate 1
30023 Shoulder Screw* 2
30029 Pusher Pull 1
30040 Spring (Equiv. to HR55040) 1
30041 Pin* 2
The following parts are MODEL
SPECIFIC. See chart at right for those
part numbers.
300__ Magazine, GREEN Encore
1
380__ Magazine, BLACK Hartco
300__ Pusher -w- Latch 1
302__ Blade Guide #__ 1
302__ Anvil #__ 1
302__ Blade #__ 1
Item # Description Qty Item # Description Qty
* Tools with a “T” have a narrow clipping head. On those tools, Part #20037 (E-Clip)
replaces Part #20012 (Nut) and Part #30041 (Pin) replaces Part #30023 (Shoulder Screw).
1020 10 20 02 A 50 51
1020S 10 20 03 A 50 51
1022 10 22 01 A 50 51
1024 10 24 08 A 50 51
1121 11 21 01 A 50 51
1234 12 34 54 A 50 51
1533 15 33 55 A 50 51
1929 19 29 03 A 50 51
3236 32 36 07 E 24 31
4139 41 39 09 E 24 31
4151T* 41 51 05 F 24 30
4157T* 41 57 04 F 24 30
6075 60 75 00-0 F, H 24 29
6080 60 80 00-0 F, H 24 29
6082 60 82 00-0 F, H 24 25
6181 61 81 00-0 F, H 24 25
6181T* 61 81 00-0 F, H 24 25
6183 61 83 00-1 F, H 24 25
6183T* 61 83 00-1 F, H 24 25
6185 61 85 00-0 F, H 24 25
6187T* 61 87 00-1 F, H 24 25
6189 61 89 00-1 F, H 24 25
6788 67 88 06 F, H 60 25
6791T* 67 91 06 F, H 60 25
Blade Magazine Pusher
Model Anvil Blade Guide Fits Clip 300__ (Green) w/Latch
2000-___ 302__ 302__ 302__ Width 380__ (Black) 300__
* Tools with a “T” designation have a narrow clipping head, ideal for
shing/lobster pots, traps and cage assembly.
MODEL-SPECIFIC PARTS
v. 08-11-16
www.encorehartco.com
Phone: 224-723-5524

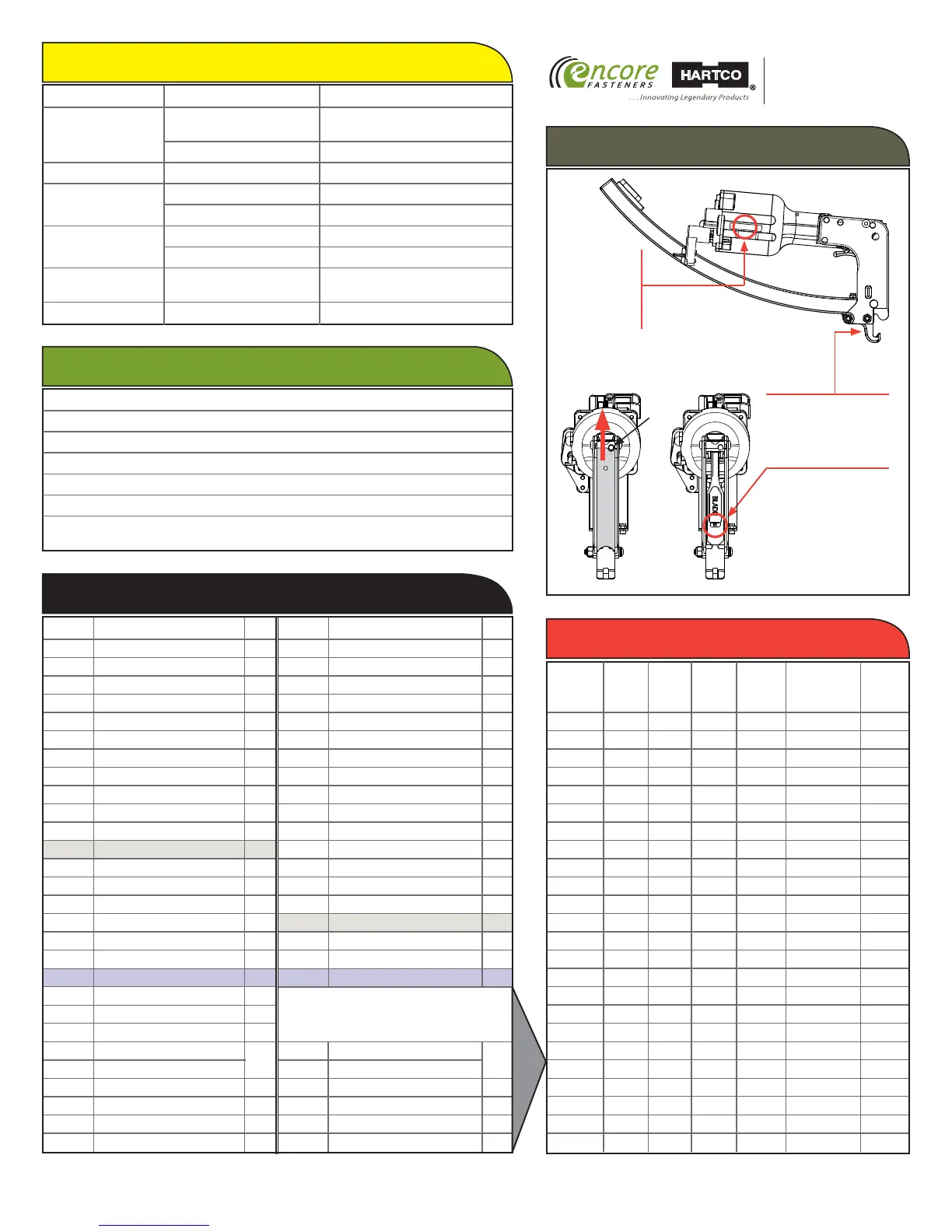

TOOL IDENTIFICATION
ANVIL NUMBER AA
LOCATED ON BACK
OF ANVIL
BLADE NUMBER BB
LOCATED UNDER
FRONT COVER.
TO FIND, PRESS IN
PIN AND SLIDE THE
COVER UP.
5DIGIT
SERIAL
NUMBER
XXXXX
MODEL NUMBER = 2000-AABB
PIN
